wedge clamp terminal, single, for Cu and Al cond. (33367)

The picture may show a similar product.

Description

Part No.: 33367 000

wedge clamp terminal, single, for Cu and Al cond.

120 - 240 mm²

for LTS-F 400, LTS 630

Product group	14
Subgroup	51

pack size	3
EAN	4021267333676

ECLASS 6.1	27371492
ECLASS 7.1	27371492
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
weight:	20.0 kg/100

Prismenklemme einfach für Cu-Leiter (rm, sm, f, f+AE)

Terminal points
min. cross-section:	120 mm²
max. cross-section:	240 mm²
Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions.

120 – 240

Application notes

Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions.

determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

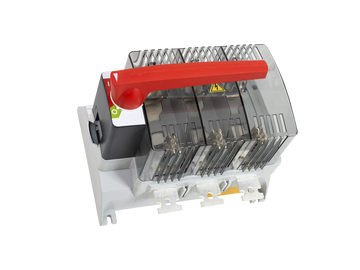

33361 000
CAPUS^®Panel
switch disconnector with fuses, 3-pole
Size NH 2
screw M10, red handle
NH 2, 400 A
for mounting plate
More

33357 000
CAPUS^®Panel
switch-disconnector 3-pole
screw M10, red handle
630 A
for mounting plate
phase-out product
More

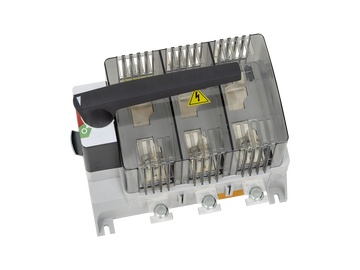

33335 000
CAPUS^®Panel
switch-disconnector 3-pole
screw M10, graphite-grey handle
630 A
for mounting plate
phase-out product
More

33339 000
CAPUS^®Panel
switch disconnector with fuses, 3-pole
Size NH 2
screw M10, graphite-grey handle
NH 2, 400 A
for mounting plate
More
