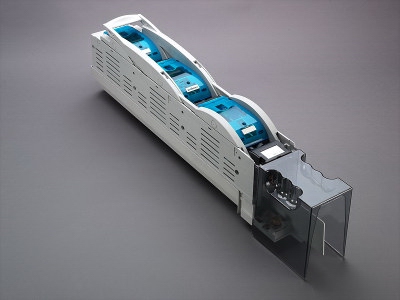

in-line fuse switch-disconnector 400 A (33244)

The picture may show a similar product.

Description

Part No.: 33244 000

in-line fuse switch-disconnector 400 A

V-connection, 3-pole switching

size 2

no longer available

Advantages of the product

Self-closing inspection holes are available in the cover.
Strips are equipped with arc chambers.

Cover can be locked when closed.

Product group	12
Subgroup	54

pack size	1
EAN	4021267332440

ECLASS 6.1	27142108
ECLASS 7.1	27142108
ETIM 4.0	EC001046
ETIM 5.0	EC001046

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Approvals

IEC (CB) , CCC

type number: SLS2

CCC certificate: 2004010302117259

Technical data

permitted power dissipation of the fuse-link:	34 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
size:	NH 2

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Electrical data IEC
rated current (IEC):	400 A
rated voltage (IEC) AC:	690 V

rated isolation voltage U_i AC:	1000 V
rated surge voltage U_imp :	8 kV

Utilisation category AC (IEC 60947-3) :

AC-23B (500V)
AC-22B (690V)
AC-21B (690V)

cond. short-circuit current with fuses (AC):	100 kA / 690 V
approved wth fuse links of operation class:	gG

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 42.9 W.

(The power dissipation at full load would be 67.0 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

Degree of protection IP30 at front, degree of protection near terminal depends on installation

Mechanical data
W x H x D:	100 x 764 x 195
weight:	650.0 kg/100

Type of fastening:
can be screwed onto drilled busbar, diameter 13mm, undrilled with terminal clamp
connection:
V-direct connection: s(r) 50-185mm², s(s) 70-240mm², sol(s) 95-300mm²; SW6, 22 - 25Nm torque

Terminal points

V-terminal : solid round cables 35 - 50 mm², stranded round cables 35 - 70 mm², solid sectored cables 50 - 240 mm², stranded sectored cables 50 - 185 mm² Md 22 - 25 Nm

Application notes

A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

permitted power dissipation of the fuse-link:	34 W
requirements for contact parts:	Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed.
