centre feed unit 1250 A (35006)

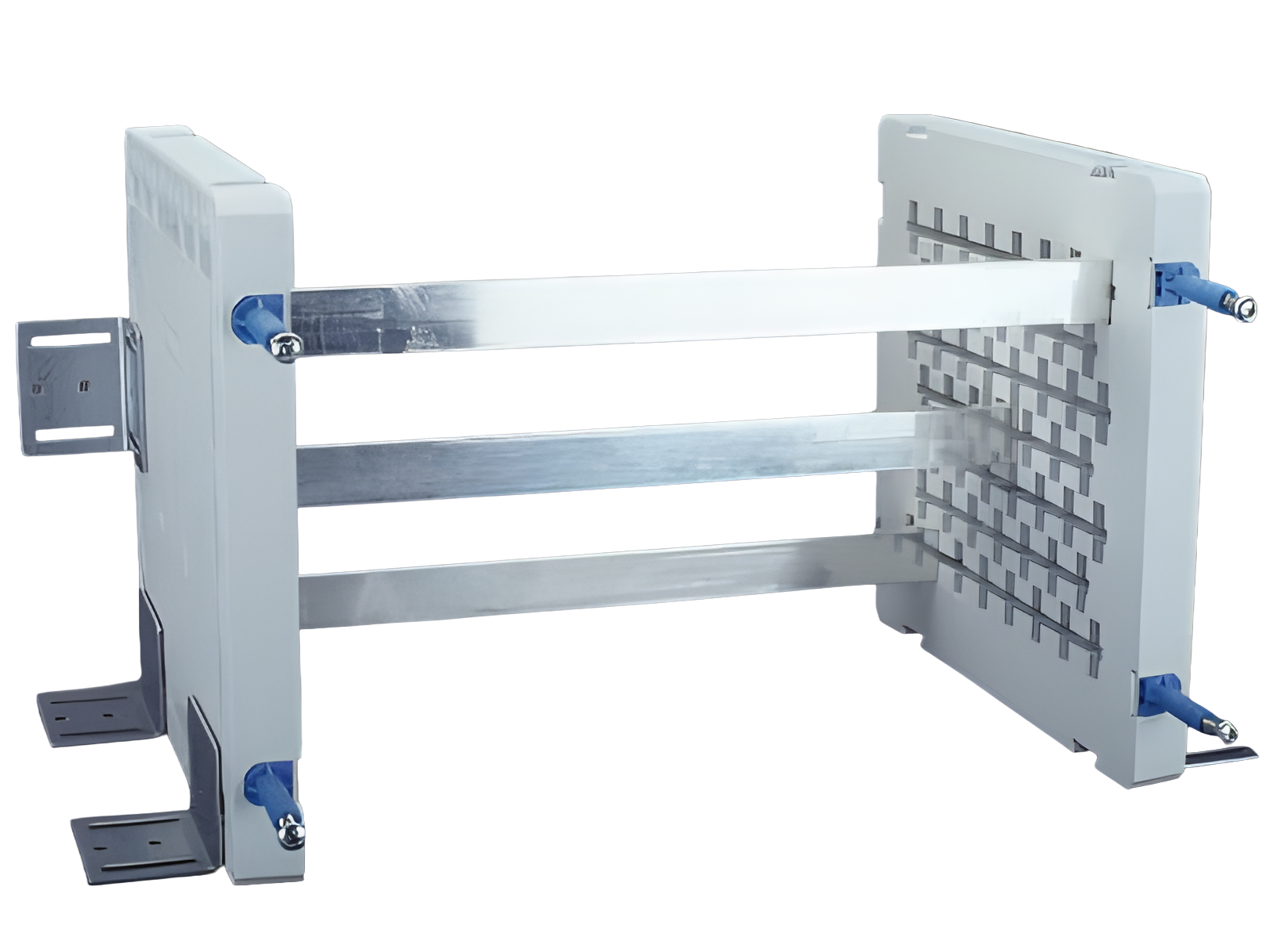

The picture may show a similar product.

Description

Part No.: 35006000

centre feed unit 1250 A

for cabinet width 800 mm

usable busbar length 603 mm

System

centre feed unit

Advantages of the product

Clear construction and undrilled connection technology enable safe and cost-efficient solutions to problems.

Product group	11
Subgroup	12

pack size	1
EAN	4021267350062

ECLASS 6.1	27370390
ECLASS 7.1	27370390
ETIM 4.0	EC001900
ETIM 5.0	EC001900

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

for UL feeder circuits >250V

type number: CentreFeedUnit

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020

Electrical data IEC
rated current (IEC):	1250 A
rated voltage (IEC) AC:	690 V

rated isolation voltage U_i AC:	1000 V
rated surge voltage U_imp :	8 kV

rated peak withstand current I_pk max.:

84 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 42.8 W.

(The power dissipation at full load would be 66.8 W.)

4-pole busbar system, can be retrofitted

Details UL
Standards
UL 508

for UL feeder circuits >250V

Electrical data UL
rated current (UL):	1200 A
rated voltage (UL) AC:	480 V
rated frequency (UL):	50 / 60 Hz

SCCR protected max.:	45 kA
	with any DIVQ circuit breaker 1200 A / 480 V AC

Mechanical data
W x H x D:	783 x 300 x 300
weight:	1716.0 kg/100
poles:	3-pole
cross-section:	500 mm²

Application notes

Reference	The scope of delivery includes: 2 busbar supports, 3 busbars, fastening brackets, fastening screws and holders for covers.


for UL feeder circuits >250V
