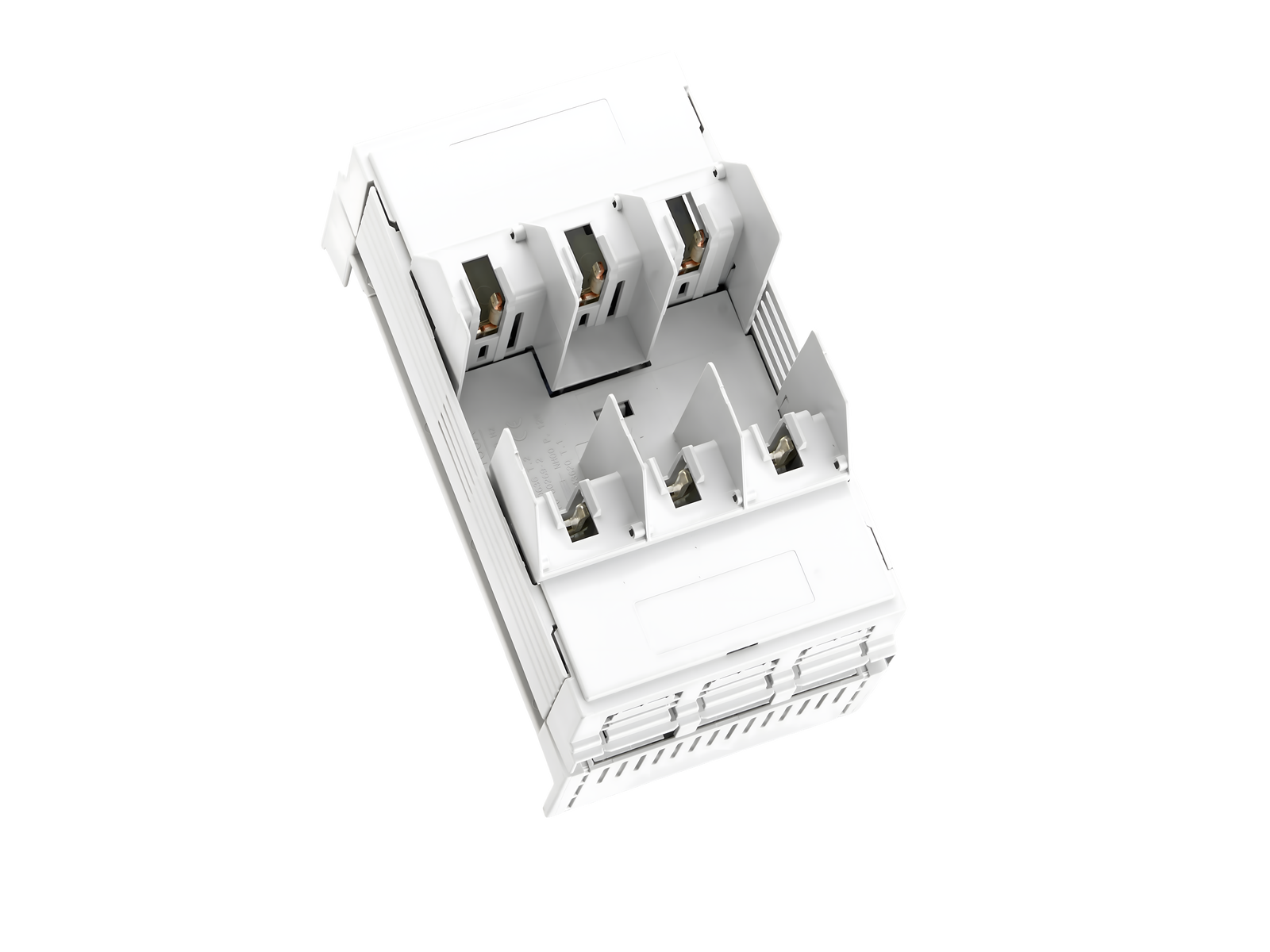

NH fuse-base 160 A

The picture may show a similar product.

Description

Part No.: 03299 000

QUADRON 60Classic

NH fuse-base 160 A

screw M8

size 00 / 3P

connection top or bottom

for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars

System

60Classic

Advantages of the product

CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom
Simple and safe clicking into place and making contact
Safe connection through shock protection split into two
Busbar supports for flat busbars can be mounted above each other

Product group	10
Subgroup	51

pack size	1
EAN	4021267032999

ECLASS 14.0	27142106
ETIM 5.0	EC000067
ETIM 8.0	EC000067
ETIM 10.0	EC000067

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016

Approvals

IEC (CB) , VDE , CCC

type number: QCC-NH00

EAC Type: NH

Technical data

for fuse links size:	NH 000, NH 00
fuse links acc. to standard:	IEC / HD 60269-2
permitted power dissipation of the fuse-link:	12 W

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016

Electrical data IEC
rated current (IEC):	160 A
rated voltage (IEC) AC:	690 V

rated voltage (IEC) DC:

440 V

rated surge voltage U_imp :

6 kV

short-circuit strength when protected by fuses:

50 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 8.3 W.

(The power dissipation at full load would be 13.0 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	800 V
max. permitted voltage (IEC) DC:	800 V

max. permitted operation temperature

55°C

Adapter module, degree of protection IP20 at front

Mechanical data
W x H x D:	106 x 200 x 90
weight:	87.0 kg/100
poles:	3-pole
for busbars:	12, 15, 20, 25, 30 x 5, 10 and section busbars

Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars

Terminal points
screw connection
M8
screw drive:	SW13
Md min.:	8.0 Nm
Md max.:	10.0 Nm
Not suitable for aluminium cables !

Material properties
halogen-free:	No

Application notes

Not suitable for aluminium cables !

permitted power dissipation of the fuse-link:	12 W
