Part No.: 03199000

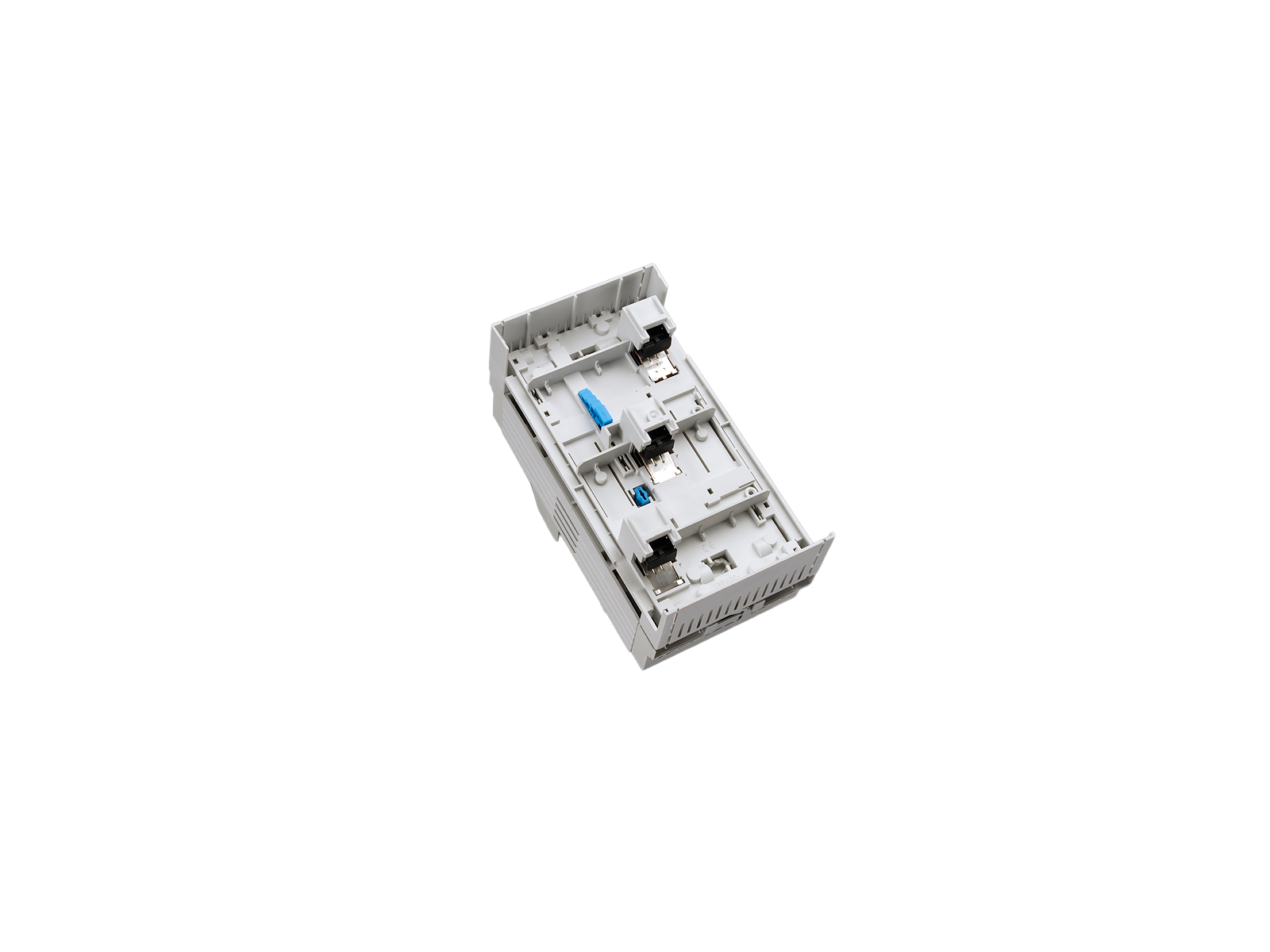

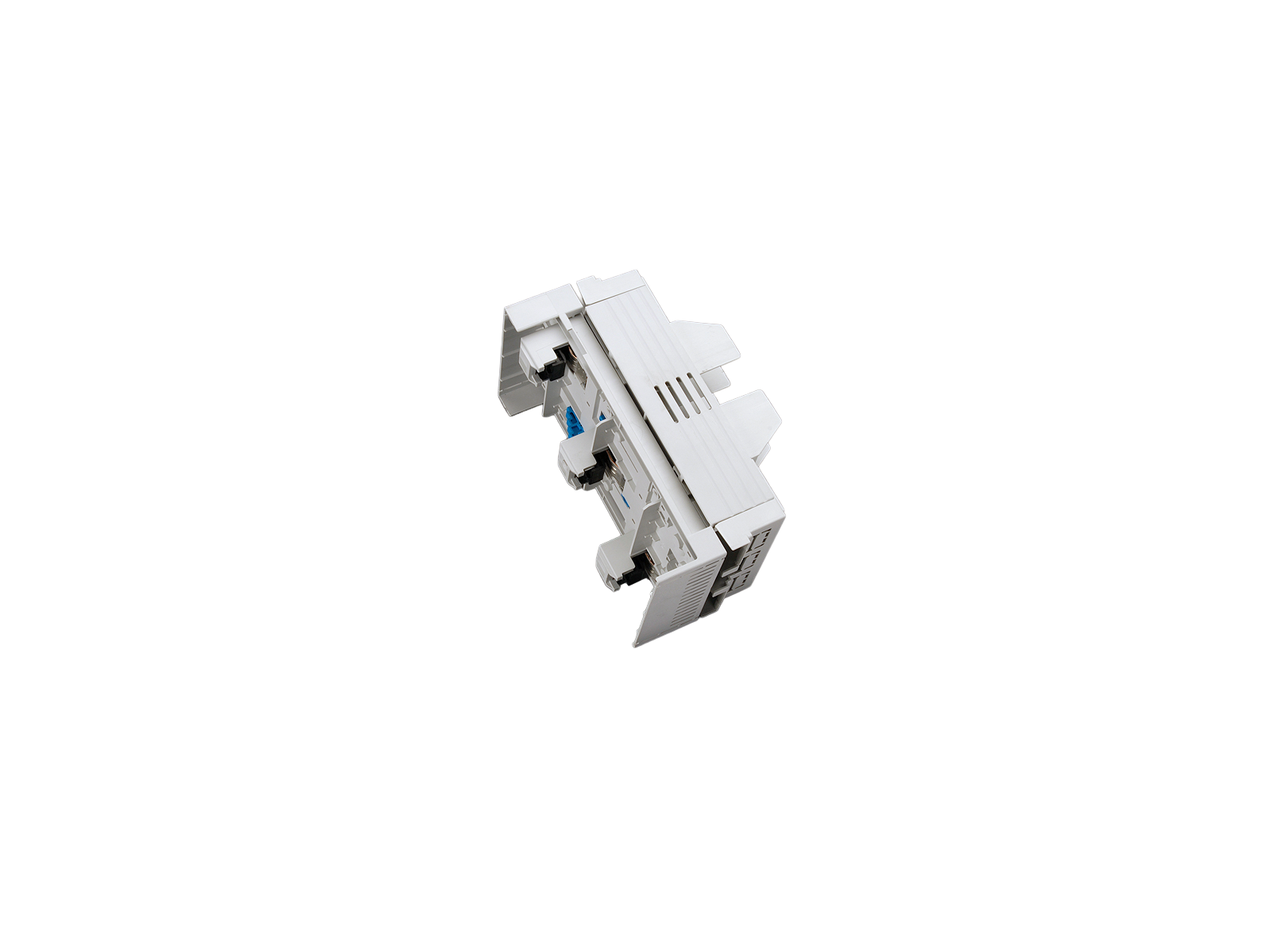

QUADRON®60Classic
NH fuse-base 160 A
box terminal
size 00 / 3P
connection top or bottom
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
Advantages of the product
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom
Simple and safe clicking into place and making contact
Safe connection through shock protection split into two
Busbar supports for flat busbars can be mounted above each other
| Product group | 10 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267031992 |
| ECLASS 6.1 | 27142106 |
| ECLASS 7.1 | 27142106 |
| ETIM 4.0 | EC000067 |
| ETIM 5.0 | EC000067 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Approvals
IEC (CB) , VDE , CCC
type number: QCC-NH00
CCC certificate: 2012010302581751
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| rated current (IEC): | 160 A |
| rated voltage (IEC) AC: | 690 V |
| rated voltage (IEC) DC: | 440 V |
| rated surge voltage Uimp : | 6 kV |
| short-circuit strength when protected by fuses: | 50 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 8.3 W.
(The power dissipation at full load would be 13.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 800 V |
| max. permitted voltage (IEC) DC: | 800 V |
| Adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
| Mechanical data | |
| W x H x D: | 106 x 200 x 90 |
| weight: | 87.0 kg/100 |
| poles: | 3-pole |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars
| Terminal points | |
| Not suitable for aluminium cables ! | |
|
Box terminal: |
|
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 12 W |
