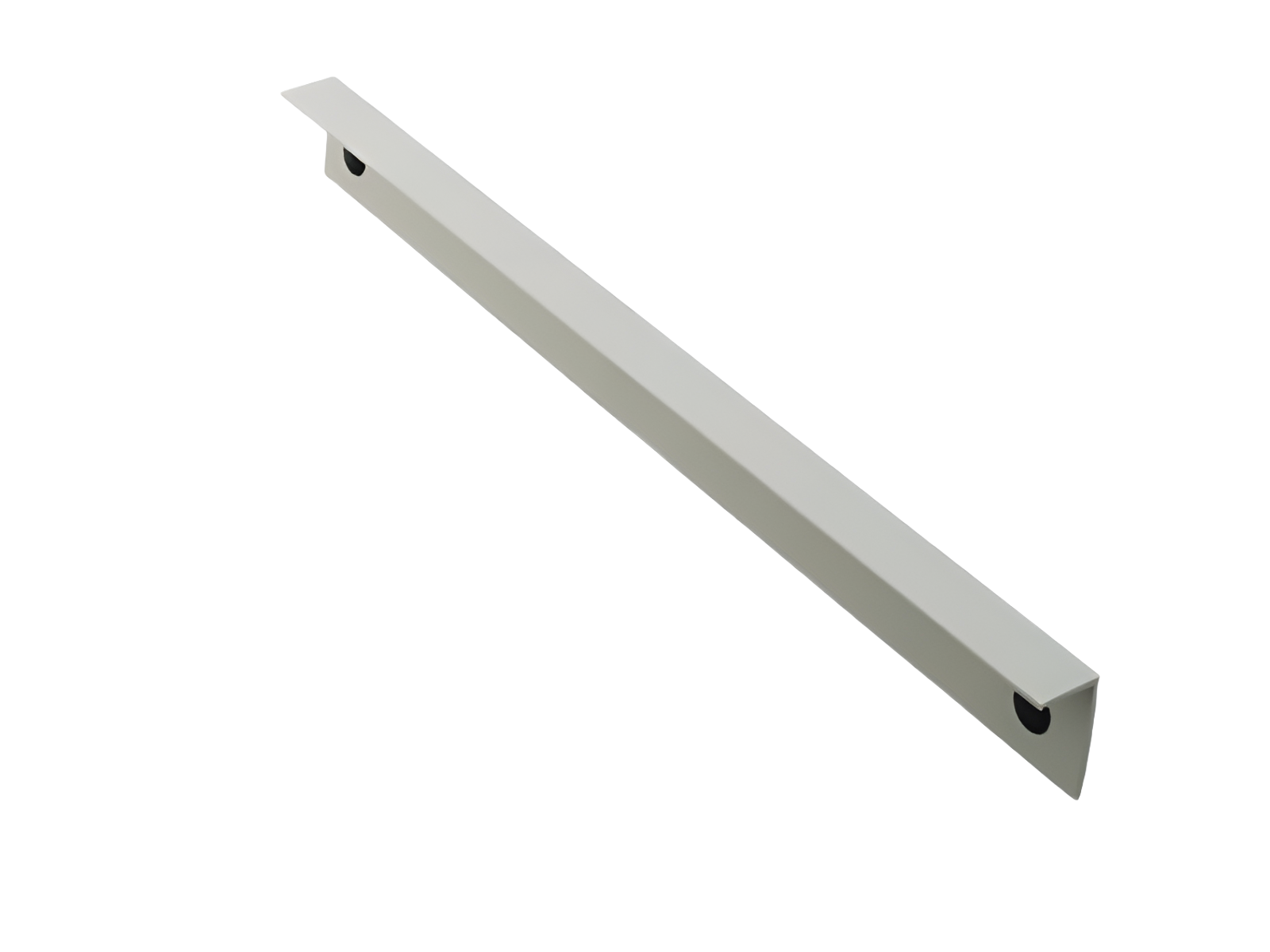

trim strip, attachable at side (33317)

The picture may show a similar product.

Description

Part No.: 33317000

trim strip, attachable at side

for NH-LTS size 00

size 00

System

60Classic

Product group	09
Subgroup	51

pack size	2
EAN	4021267333171

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
W x H x D:	20 x 350 x 35
weight:	6.0 kg/100

Application notes


short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

03299000
QUADRON^®60Classic
NH fuse-base 160 A
screw M8
size 00 / 3P
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
