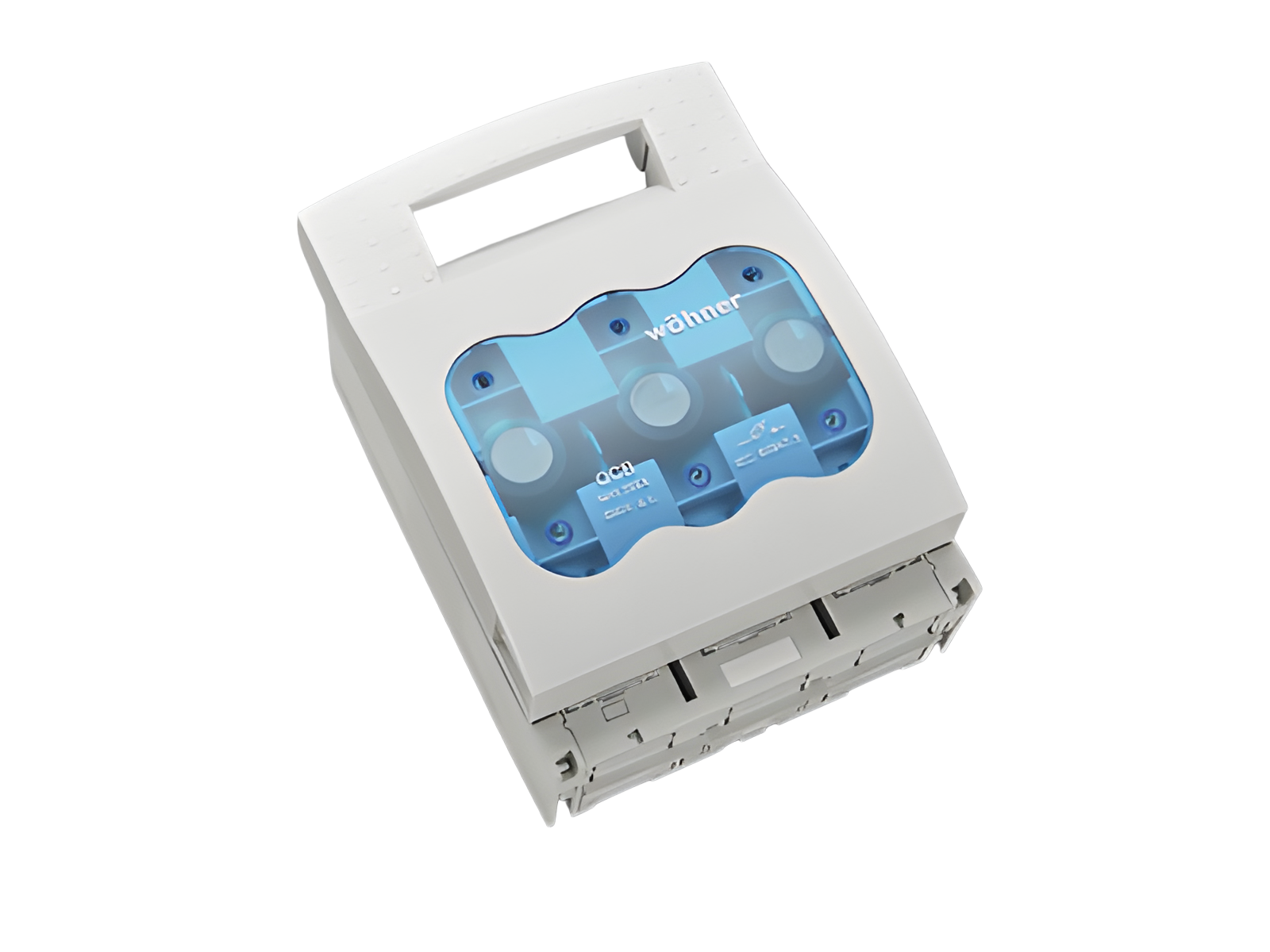

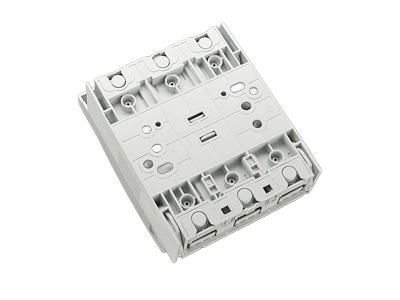

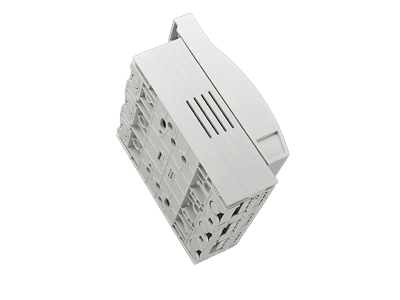

The picture may show a similar product.
Part No.: 33201 000
QUADRON®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
for mounting plate
System
Panel
Advantages of the product
For safe connection of the leads, the shock protection is split into 2.
Self-closing inspection holes are available in the cover.
| Product group | 09 |
| Subgroup | 06 |
| pack size | 1 |
| EAN | 4021267332013 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , VDE , CCC , DNV GL
for UL feeder circuits >250V
type number: QCB-NH1
| for fuse links size: | NH 1 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| rated current (IEC): | 250 A |
| rated voltage (IEC) AC: | 690 V |
| rated voltage (IEC) DC: | 440 V |
| rated isolation voltage Ui AC: | 800 V |
| rated isolation voltage Ui DC: | 500 V |
| rated surge voltage Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (400V) AC-23B (400V/160A) AC-21B (690V) AC-20B (1000V) at pollution degree 2 to obtain a higher utilisation category the product can be retrofitted with arcing chambers (see accessories) visible information required if used at more than 690V AC: do not switch under load |
| Utilisation category DC (IEC 60947-3) : | DC specifications: 2 current paths (L1,L3) in series DC-20B (440V) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load |
| cond. short-circuit current with fuses (AC): | 100 kA / 690 V |
| approved wth fuse links of operation class: | gG |
| rated peak withstand current Ipk max.: | 13.7 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 8.1 kA |
| Icw approved with: | Trennmesser |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 9.0 W.
(The power dissipation at full load would be 14.1 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 725 V |
| max. permitted voltage (IEC) DC: | 800 V |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich. |
|
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Details UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 250 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Mechanical data | |
| W x H x D: | 184 x 243 x 112 |
| weight: | 171.0 kg/100 |
| poles: | 3-pole |
| Mounting: | for mounting plate |
| front degree of protection: | IP30 |
| Terminal points | |
| screw connection | |
| M10 | |
| screw drive: | SW16 |
| Md min.: | 20.0 Nm |
| Md max.: | 30.0 Nm |
| torque (UL): | 221 lb-in |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
33158
000

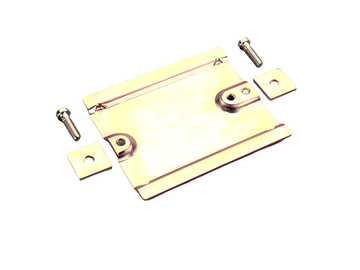

rapid mounting set
for 2 mounting rails, rails centre distance 125 mm or 150 mm
size 1 - 2
More
33145
000
prism terminal, double, for Cu cables
2x 35 - 70 mm²
for: QCB-NH1, QCS-NH1, QCS-320
More
33163
000
clamp connector for Cu cables
70 - 150 mm²
for: QCB-NH2, LTS-F 400, LTS 630
More
33166
000
prism terminal, single, for Cu cables
35 - 150 mm²
QCB-NH1, QCS-NH1, QCS-320
for: QCB-NH1, QCS-NH1, QCS-320
More
33909
000
box terminal for Cu cables
35 - 150 mm²
QCB-NH1, QCS-NH1, QCS-320
for: QCB-NH1, QCS-NH1, QCS-320
More
33142
000
cover for cable lugs, top / bottom attachable
for: QCB-NH1, QCS-NH1, QCS-320
More
33152
000
trim frame, single
215 x 330
size 1
More
33155
000
barrier for handle
for NH fuse-switch disconnector size 1-3
for closing of handle area from rear
More
33917
000
pilot switch
changeover 250 V AC / 5 A, 30 V DC / 4 A
QUADRON®60Classic, QUADRON®Panel size 1
More
33918
000
arcing chamber
retrofit package for higher utilisation category
for QCB-NH1
More
33157
000
lid interlock
for sealing wire or 3 padlocks with shackle of 4 - 7 mm
Size 1 - 3
More
