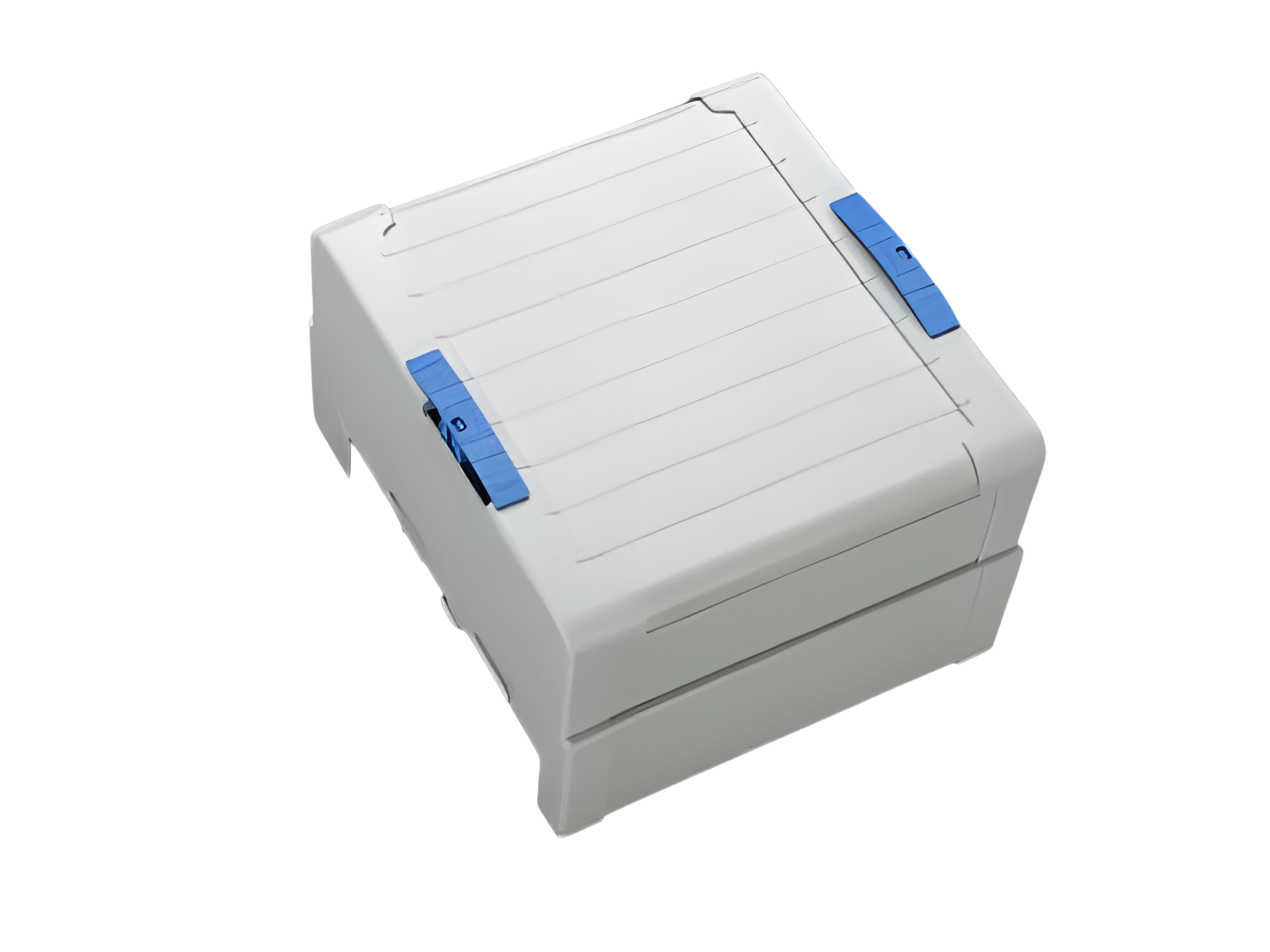

cover cap, 3-pole (01539)

The picture may show a similar product.

Description

Part No.: 01539 000

cover cap, 3-pole

180 mm wide

180 x 200 x 90

for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars

System

60Classic

Product group	07
Subgroup	36

pack size	1
EAN	4021267015398

ECLASS 6.1	27370390
ECLASS 7.1	27370390
ETIM 4.0	EC002498
ETIM 5.0	EC002848

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

CSA , UL

for UL feeder circuits >250V

type number: CTC60-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003

Details UL
Standards
UL 508

for UL feeder circuits >250V

Mechanical data
W x H x D:	180 x 200 x 90
weight:	33.0 kg/100
poles:	3-pole
for busbars:	12, 15, 20, 25, 30 x 5, 10 and section busbars

Application notes

Also suitable as reserve section cover.

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit


for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
