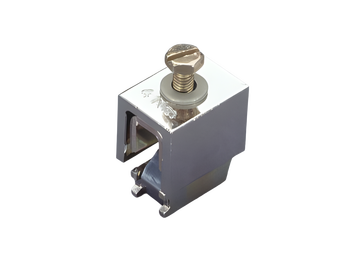

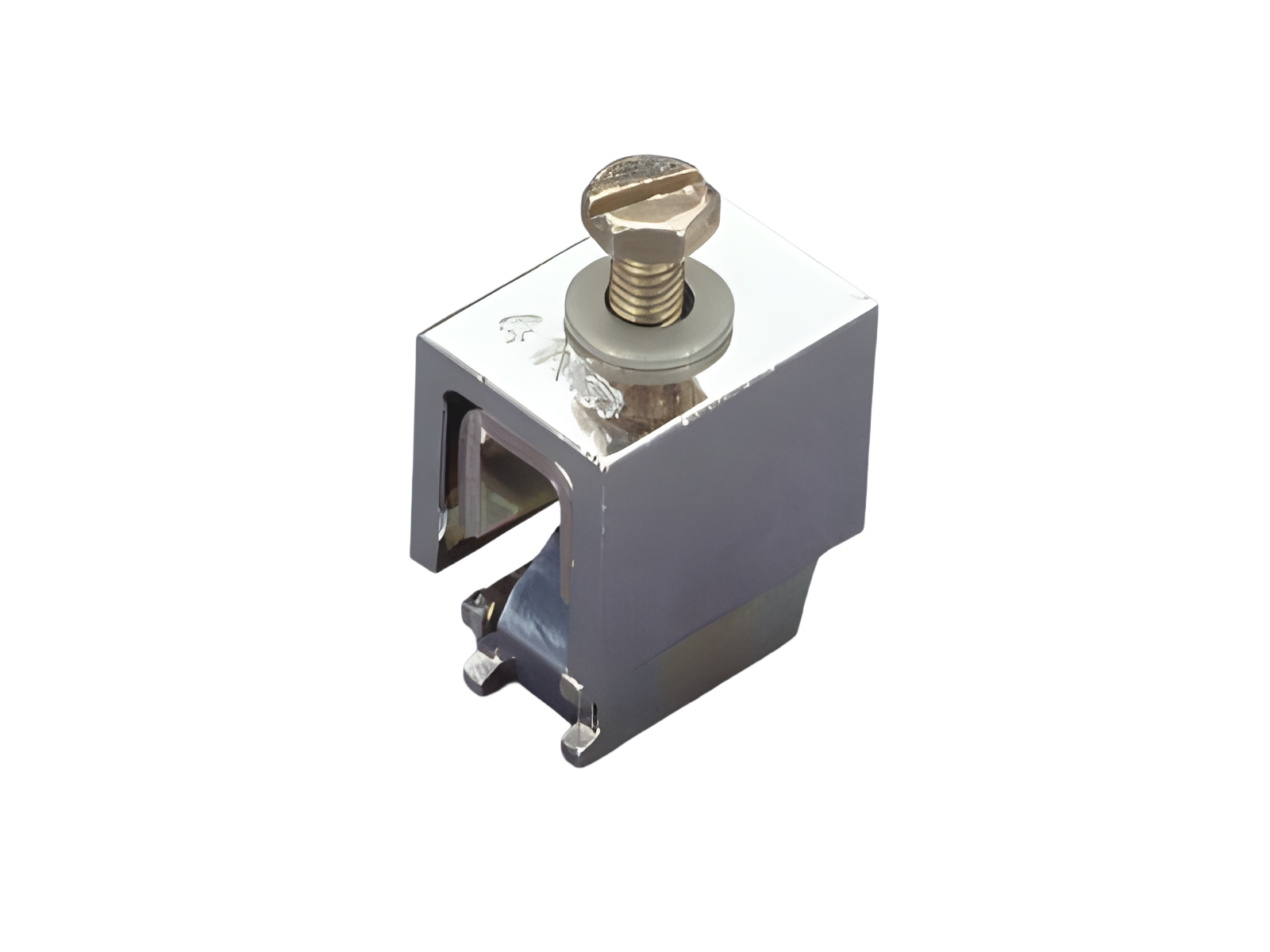

The picture may show a similar product.
Part No.: 01514000
clip-on screw connection, for cable lugs
M8
for busbars 12, 15, 20, 25, 30 x 10 and section busbars
System
60Classic, centre feed unit, 100Energy
| Product group | 07 |
| Subgroup | 28 |
| pack size | 20 |
| EAN | 4021267015145 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
Approvals
DNV GL
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated voltage (IEC) AC: | 690 V |
| rated peak withstand current Ipk max.: | 35.5 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.3 W.
(The power dissipation at full load would be 0.5 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current capacity (IEC) max.: | 490 A |
| Mechanical data | |
| W x H x D: | 30 x 32 x 36 |
| weight: | 16.5 kg/100 |
| for busbars: | 12, 15, 20, 25, 30 x 10 and section busbars |
Screw M8, 8mm available length
| Terminal points | |
| screw connection | |
| M8 | |
| screw drive: | SW13 |
| Terminal space: | M8 x 8 |
|
Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
| Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
| The insulation performance of the article depends on the installation conditions. | |
