side-mounted module for busbar adapters (32963)

The picture may show a similar product.

Description

Part No.: 32963000

side-mounted module for busbar adapters

attachable to both sides

9 x 200

for EEC60..

System

60Classic

Product group 05
Subgroup 57
pack size 10
EAN 4021267329631
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

Approvals

DNV GL

for UL feeder circuits >250V

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
for UL feeder circuits >250V
Mechanical data
W x H x D: 9 x 200 x 40
weight: 2.3 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32471000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 260, with twin cables AWG10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32478000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 200, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32484000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32588000
EQUES®60Classic
busbar adapter 32 A
for direct starter Siemens 3RA6
45 x 200, with leads AWG 10 (6 mm²), with metal mounting rail
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32463000
EQUES®60Classic
busbar adapter 63 A
for direct starter ABB MS45x and Eaton PKZ5
72 x 260, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32485000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

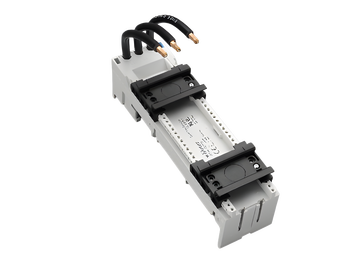

32535000
EQUES®60Classic
busbar adapter 63 A
for direct starter Allen-Bradley 140M-F
54 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

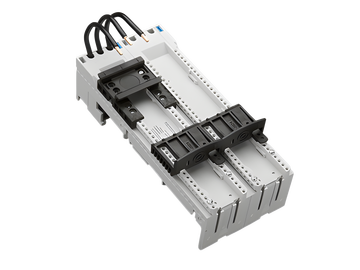

32452000
EQUES®60Classic
busbar adapter 25 A
for reversing starter Eaton PKZM01, PKE12
90 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32438000
EQUES®60Classic
busbar adapter 32 A
for direct starter Schneider Electric GV2M, GV2P
45 x 260, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

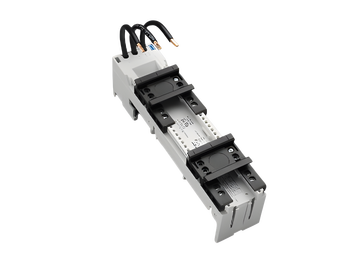

32434000
EQUES®60Classic
busbar adapter 32 A
for direct starter Schneider Electric GV2M, GV2P
45 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32477000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 200, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

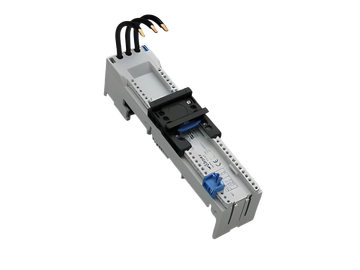

32427000
EQUES®60Classic
busbar adapter 32 A
for direct starter Schneider Electric LUB12, LUB32
45 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

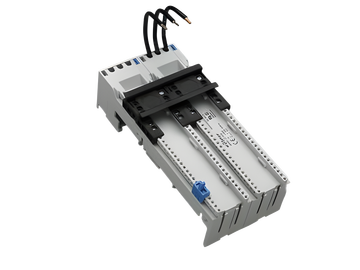

32448000
EQUES®60Classic
busbar adapter 25 A
for reversing starter Siemens S00 with screw connection
90 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32445000
EQUES®60Classic
busbar adapter 25 A
for direct starter Siemens S00 with screw connection
45 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32428000
EQUES®60Classic
busbar adapter 32 A
for reversing starter Schneider Electric LUB12/32
45 x 260, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

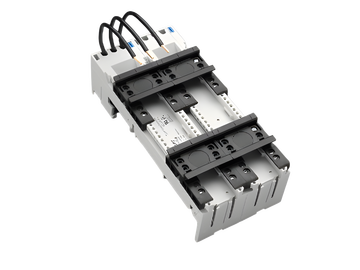

32440000
EQUES®60Classic
busbar adapter 16 A
for reversing starter Allen-Bradley 140M-RC2E, Eaton PKZM0, Siemens S00, Schneider Electric GV2 with spring terminals
90 x 200, with leads AWG 14 (2.5 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32460000
EQUES®60Classic
busbar adapter 63 A
for direct starter ABB MS45x, Eaton PKZM4, Siemens S2
55 x 260, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32637000
EQUES®60Classic
busbar adapter 25 A
for direct starter Siemens S00 with spring terminal connection
45 x 260, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

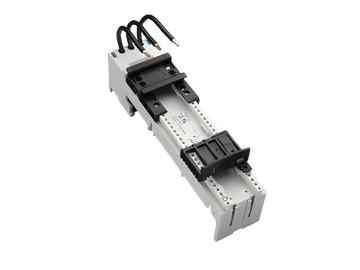

32450000
EQUES®60Classic
busbar adapter 25 A
for direct starter Eaton PKZM01, PKE12
45 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

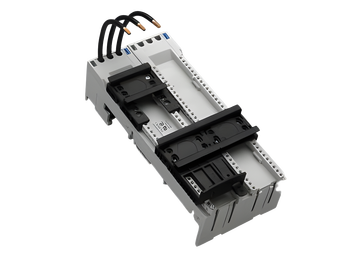

32453000
EQUES®60Classic
busbar adapter 32 A
for reversing starter Eaton PKZM0, PKE32
90 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

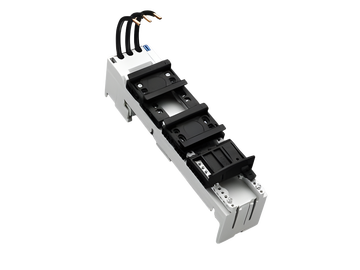

32451000
EQUES®60Classic
busbar adapter 32 A
for direct starter Eaton PKZM0, PKE32
45 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32487000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
45 x 260, without leads, with spring terminals 1.5 - 6 mm² from front
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32446000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
81 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32638000
EQUES®60Classic
busbar adapter 32 A
for direct starter Siemens S0 with spring terminal connection
45 x 260, with 165 mm long leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32455000
EQUES®60Classic
busbar adapter 63 A
2 adjustable mounting rails
54 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32456000
EQUES®60Classic
busbar adapter 63 A
1 adjustable mounting rail
63 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32457000
EQUES®60Classic
busbar adapter 63 A
1 adjustable mounting rail
72 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

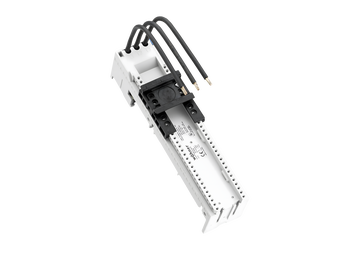

32659000
EQUES®60Classic
busbar adapter 32 A
for direct starter Siemens S0 with spring terminal connection
45 x 200, with 165 mm long leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32498000
EQUES®60Classic
busbar adapter 32 A
for direct starter ABB MS116, MS132
45 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

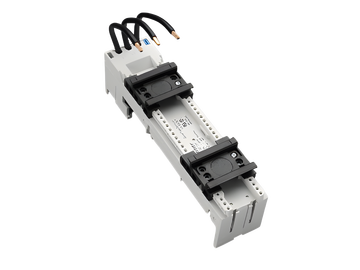

32533000
EQUES®60Classic
busbar adapter 32 A
for direct starter Allen-Bradley 140M-C, 140M-D
45 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

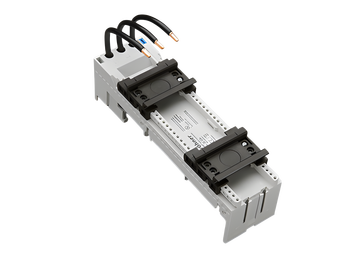

32534000
EQUES®60Classic
busbar adapter 32 A
for reversing starter Allen-Bradley 140M-C, 140M-D
54 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32512000A
EQUES®60Classic
busbar adapter 32 A
for direct starter ABB MS116/132
54 x 200, with leads AWG 10 (6 mm², 150 mm long)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
stock sale
More

32436000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 200, with screw terminals 6mm² from rear
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32486000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
45 x 200, without leads, with spring terminals 1.5 - 6 mm² from front
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32467000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32464000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
54 x 200, without leads, with terminals 1.5 - 16 mm², front operated
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32461000
EQUES®60Classic
busbar adapter 63 A
2 adjustable mounting rails
54 x 260, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32459000
EQUES®60Classic
busbar adapter 63 A
2 adjustable mounting rails
81 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32454000
EQUES®60Classic
busbar adapter 63 A
1 adjustable mounting rail
54 x 200, with leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32639000
EQUES®60Classic
busbar adapter 32 A
for direct starter Siemens S0 with screw connection
45 x 260, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

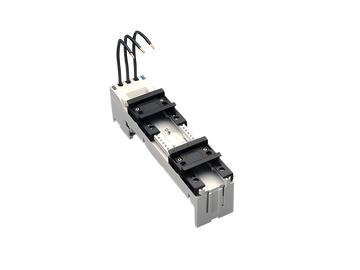

32429000
EQUES®60Classic
busbar adapter 16 A
for direct starter Allen-Bradley 140M-RC2E, Eaton PKZM0, Siemens S00, Schneider Electric GV2 with spring terminals
45 x 200, with leads AWG 14 (2.5 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32444000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
72 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32598000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 200, with twin cables AWG10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32443000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
63 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32442000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
54 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32431000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32469000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
72 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32449000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
54 x 260, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32439000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 260, with screw terminals 6mm² from rear
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32635000
EQUES®60Classic
busbar component support
1 adjustable mounting rail and 1 positioner for Siemens S00
45 x 200, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32465000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 260, without leads, with terminals 1.5 - 16 mm², front operated
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32466000
EQUES®60Classic
busbar adapter 80 A
1 adjustable mounting rail
54 x 200, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32636000
EQUES®60Classic
busbar component support
1 adjustable mounting rail and 1 positioner for Siemens S00 and S0
45 x 260, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32655000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
45 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32432000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
90 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32472000
EQUES®60Classic
busbar adapter 80 A
2 adjustable mounting rails
54 x 260, without leads, with terminals 16 mm², operated from behind
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32433000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 260, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32441000
EQUES®60Classic
busbar adapter 32 A
1 adjustable mounting rail
54 x 200, with leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32650000
EQUES®60Classic
busbar adapter 25 A
for direct starter Siemens S00 with spring terminal connection
45 x 200, with 165 mm long leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32430000
EQUES®60Classic
busbar adapter 25 A
1 adjustable mounting rail
45 x 200, with leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

https://pim.woehner.de/EN/US/1000043756

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
