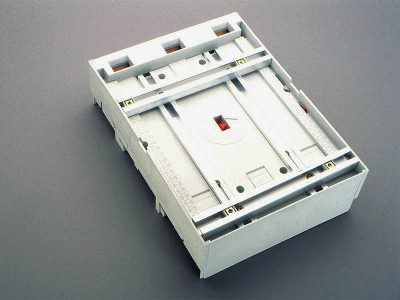

The picture may show a similar product.
System
60Classic
| Product group | 05 |
| Subgroup | 42 |
| pack size | 1 |
| EAN | 4021267322625 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
type number: 60630
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 630 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
| Electrical data UL | |
| rated current (UL): | 630 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| Mechanical data | |
| W x H x D: | 238 x 320 x 62 |
| weight: | 454.0 kg/100 |
| poles: | 3-pole |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
|
Movable fastening rails with M6 slide nuts for safe mounting of the switching devices. Max. separation of the fastening points 214 x 245 (WxH). |
|
32937
000
slide nut M5
for: 32168, 32214, 32215, 32216
