locking cap DII version -industry- (31911)

The picture may show a similar product.

Description

Part No.: 31911000

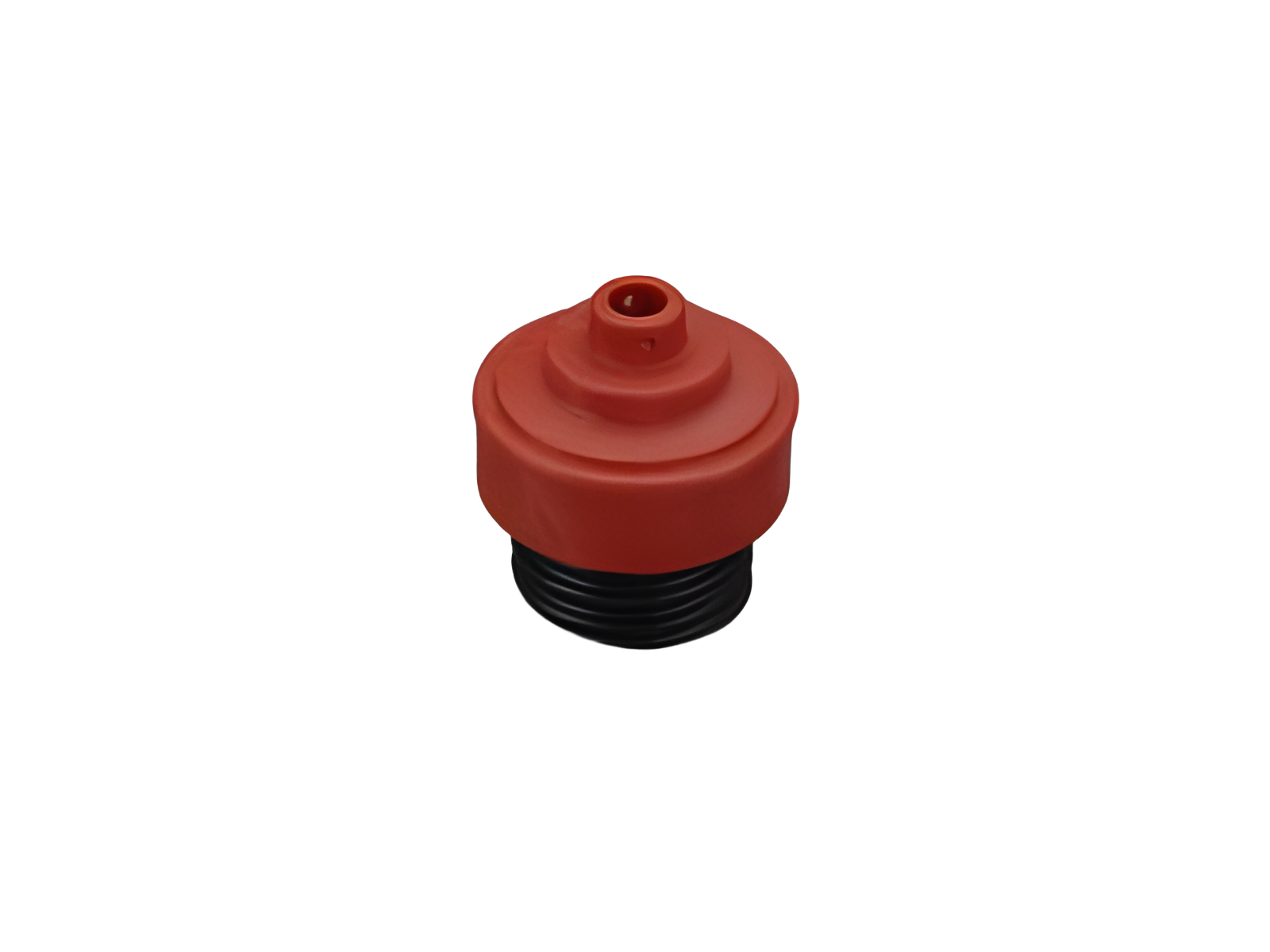

locking cap DII version -industry-

500 V

E 27

Product group	22
Subgroup	05

pack size	20
EAN	4021267319113

ECLASS 6.1	27142114
ECLASS 7.1	27142114
ETIM 4.0	EC000093
ETIM 5.0	EC000093

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

size:

DII / E 27

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data IEC
rated voltage (IEC) AC:	500 V

rated voltage (IEC) DC:

500 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight:	1.7 kg/100

Application notes


short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

31913000
key for locking cap
industry version D and D0
More

Usage

31950000

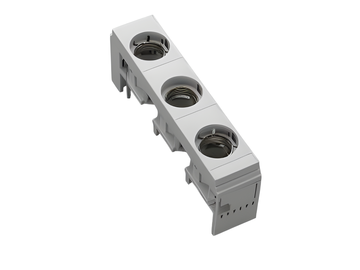

CUSTO^®60Classic
