D01 screw cap, porcelain (01103)

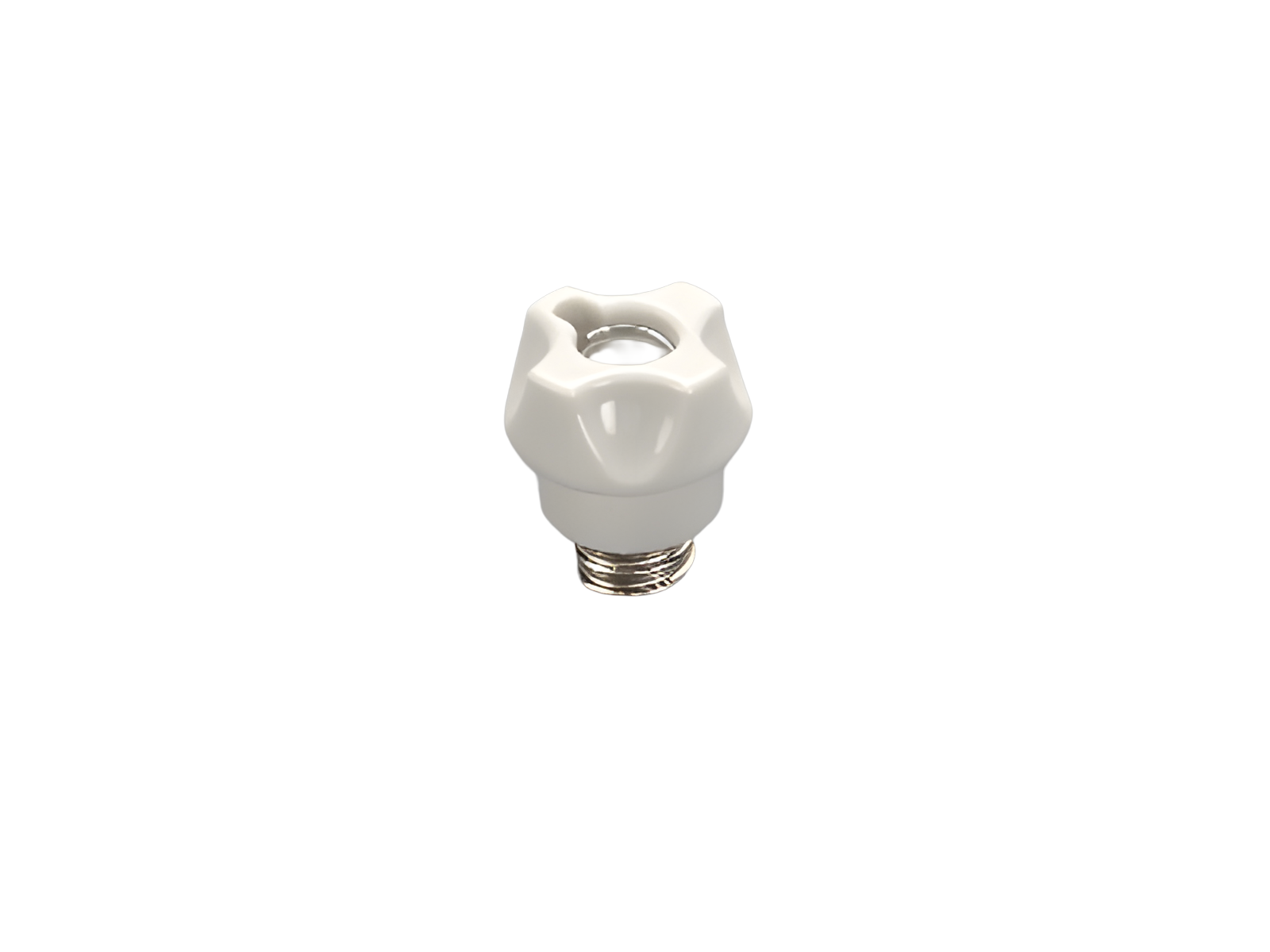

The picture may show a similar product.

Description

Part No.: 01103000

D01 screw cap, porcelain

400 V

E 14

Product group	22
Subgroup	05

pack size	20
EAN	4021267011031

ECLASS 6.1	27142115
ECLASS 7.1	27142115
ETIM 4.0	EC001643
ETIM 5.0	EC001643

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

size:

D01 / E 14

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data IEC
rated voltage (IEC) AC:	400 V

rated voltage (IEC) DC:

250 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight:	1.9 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

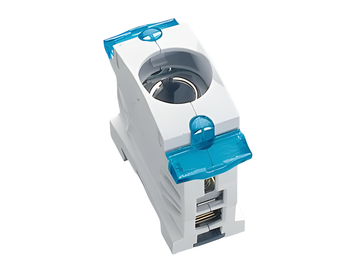

31301000
CUSTO^®Panel
D0 fuse base, panel-mounting
E 14 / 16 A / 1P
touch protected
More
