special-retaining spring for D01 - E 18 (01729)

The picture may show a similar product.

Description

Part No.: 01729000

special-retaining spring for D01 - E 18

2 - 16 A

Product group	22
Subgroup	05

pack size	50
EAN	4021267017293

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002936
ETIM 5.0	EC002936

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Technical data

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Mechanical data
weight:	0.1 kg/100

Application notes


short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

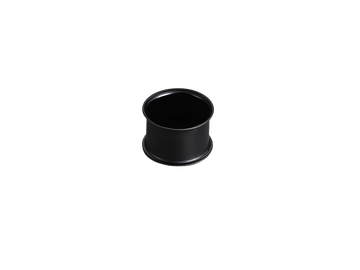

01721000
D02 gauge ring 35 A / 40 A
black
E 18
More

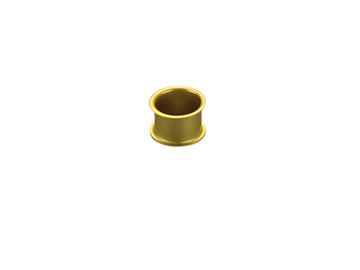

01720000
D02 gauge ring 25 A
yellow
E 18
More

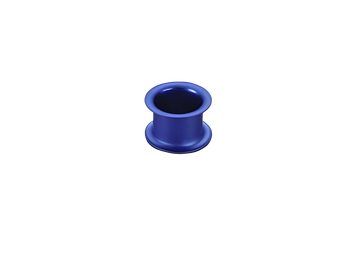

01719000
D02 gauge ring 20 A
blue
E 18
More

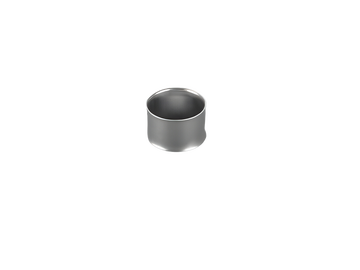

01722000
D02 gauge ring 50 A
white
E 18
More

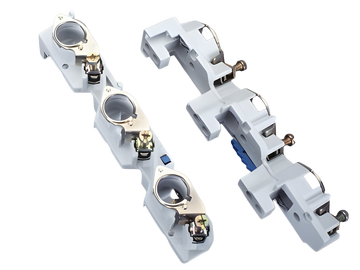

01492000
CUSTO^®60Classic
D0-fuse base, busbar mounted, 27mm
E 18 / 3P
for busbars: 12, 15, 20, 25, 30 x 10 and section busbars
More

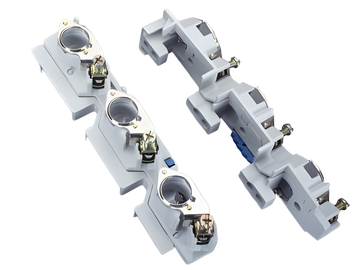

01058000
