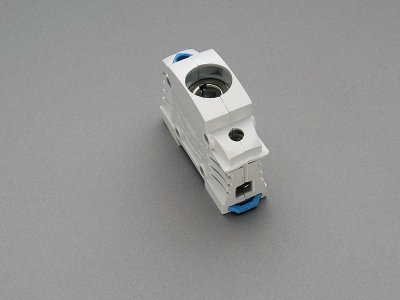

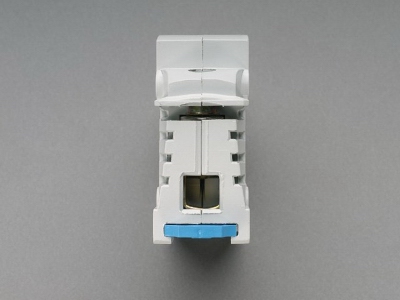

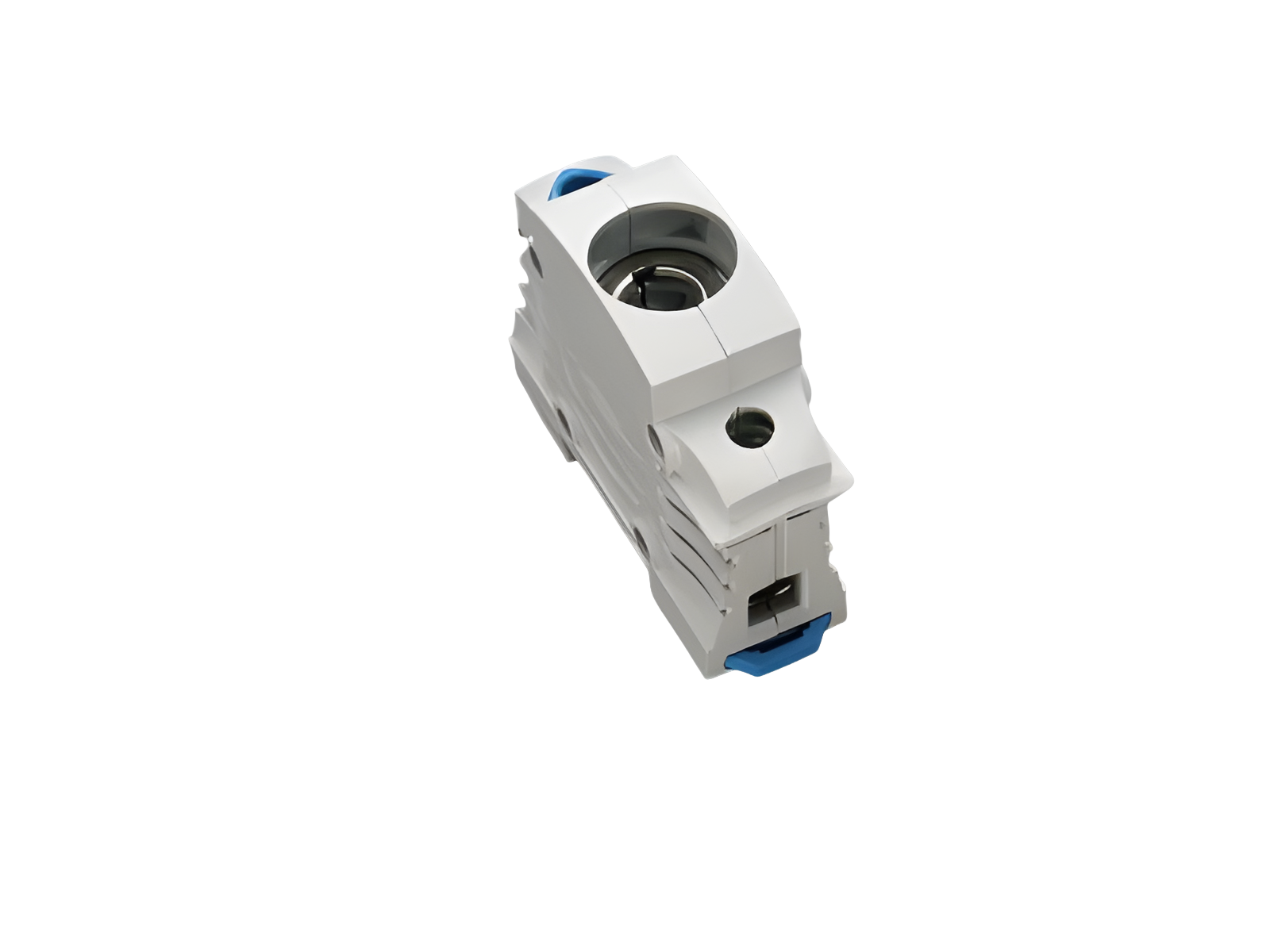

D0 fuse base, panel-mounting (31286)

The picture may show a similar product.

Description

Part No.: 31286 000

TRITON^®Panel

D0 fuse base, panel-mounting

Size D01 / E 14

E 14 / 16 A / 1P

touch protected acc. to DGUV V3

for mounting rail

System

Panel

Advantages of the product

large clamping range, holder for label

Product group	02
Subgroup	03

pack size	9
EAN	4021267312862

ECLASS 6.1	27142120
ECLASS 7.1	27142120
ETIM 4.0	EC001644
ETIM 5.0	EC001644

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Approvals

CCC , DNV GL

type number: 1413

Technical data

for fuse links size:	D0
fuse links acc. to standard:	IEC / HD 60269-3
permitted power dissipation of the fuse-link:	2.5 W

Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019

Electrical data IEC
rated current (IEC):	16 A
rated voltage (IEC) AC:	400 V

rated voltage (IEC) DC:

250 V

rated surge voltage U_imp :

6 kV

approved wth fuse links of operation class:	gG
short-circuit strength when protected by fuses:	50 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.3 W.

(The power dissipation at full load would be 0.4 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	440 V
max. permitted voltage (IEC) DC:	262 V

Mechanical data
W x H x D:	27 x 80 x 55
weight:	12.8 kg/100
poles:	1-pole
Mounting:	for mounting rail

Terminal points
min. cross-section:	1.5 mm²
max. cross-section:	35 mm²
Not suitable for aluminium cables !

box terminal : 1,5 - 35 mm² flexible cables, directly or with wire-end ferrule, 1,5 - 10 mm² solid round cables Md 4,0 Nm (flexible cables of maximum cross-section may not fit when using wire-end ferrule)

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.

permitted power dissipation of the fuse-link:	2.5 W
