for UL feeder circuits >250V

basic system 800 A (11807)

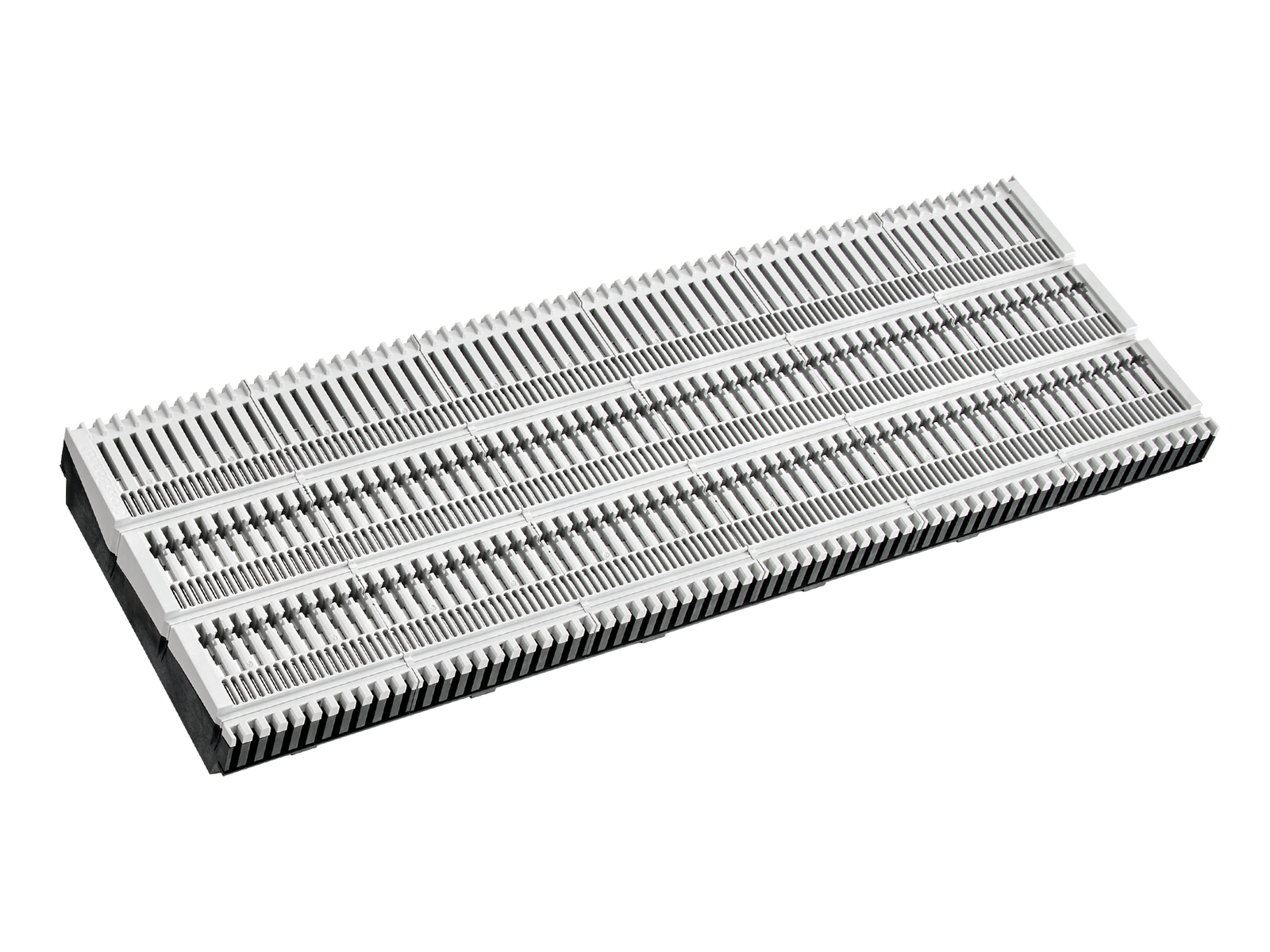

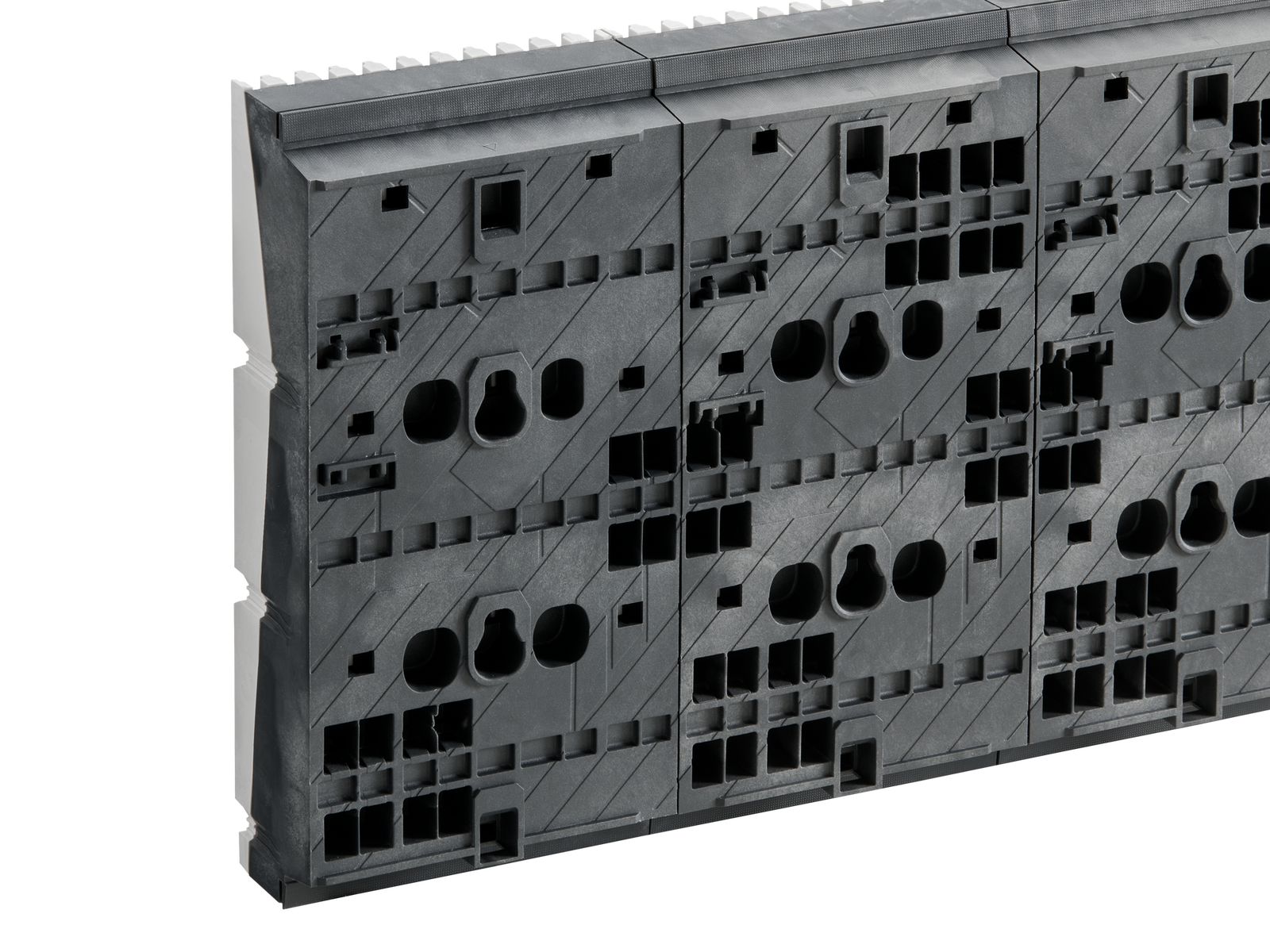

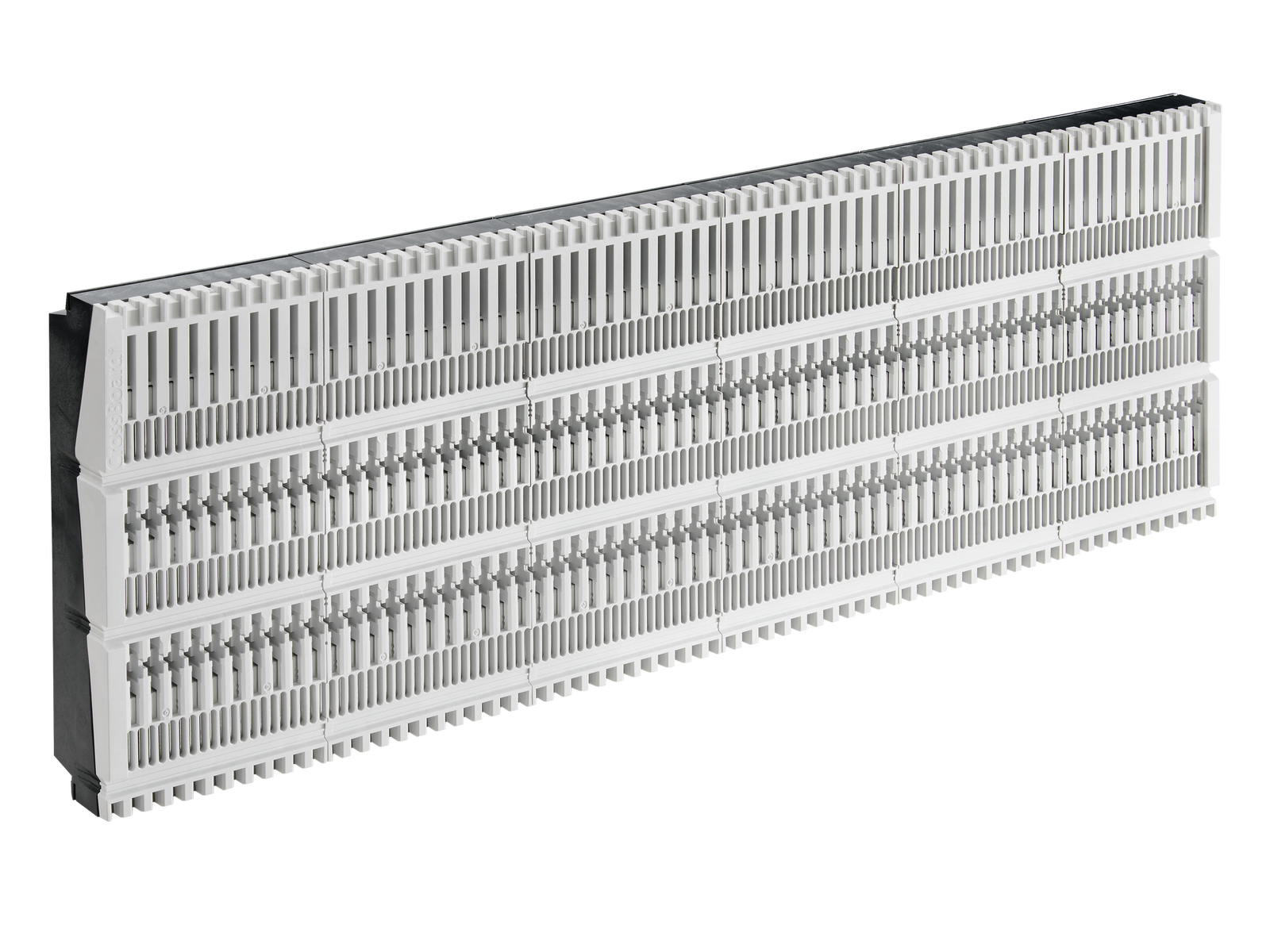

The picture may show a similar product.

Description

Part No.: 11807000A

CrossBoard®

basic system 800 A

for rear feeding

3-pole

700 mm long, touch-safe protected

with CrossLink® interface

coming soon

System

CrossBoard® 800 A

Advantages of the product

touch-safe protected busbar system up to 800 A
rear feedable
plug and play
completely pre-assembled and immediately ready for use

Product group 06
Subgroup 50
pack size 1
EAN 4021267118075

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

IEC (CB) , UL

for UL feeder circuits >250V

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
Electrical data IEC
Rated current (IEC): 800 A
rated voltage (IEC) AC: 800 V
rated isolation voltage Ui AC: 1000 V
rated surge voltage Uimp : 6 kV
rated peak withstand current  Ipk max.: 80 kA
rated short-time withstand current Icw (1.0 s) max.: 40 kA
Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) DC: 1000 V
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 800 A
rated voltage (UL) AC: 800 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
SCCR unprotected max.: 40 kA
3 cycles (without OPD) @ 600 V AC
SCCR protected max.: 100 kA
SCCR: 100 kA with JDDZ fuse Class L/T 800 A / 600 V AC
65 kA with any DIVQ/7 circuit breaker 800 A / 480 V AC
Mechanical data
W x H x D: 700 x 200 x 45
poles: 3-pole
degree of protection: IP20

Application notes

for UL feeder circuits >250V
