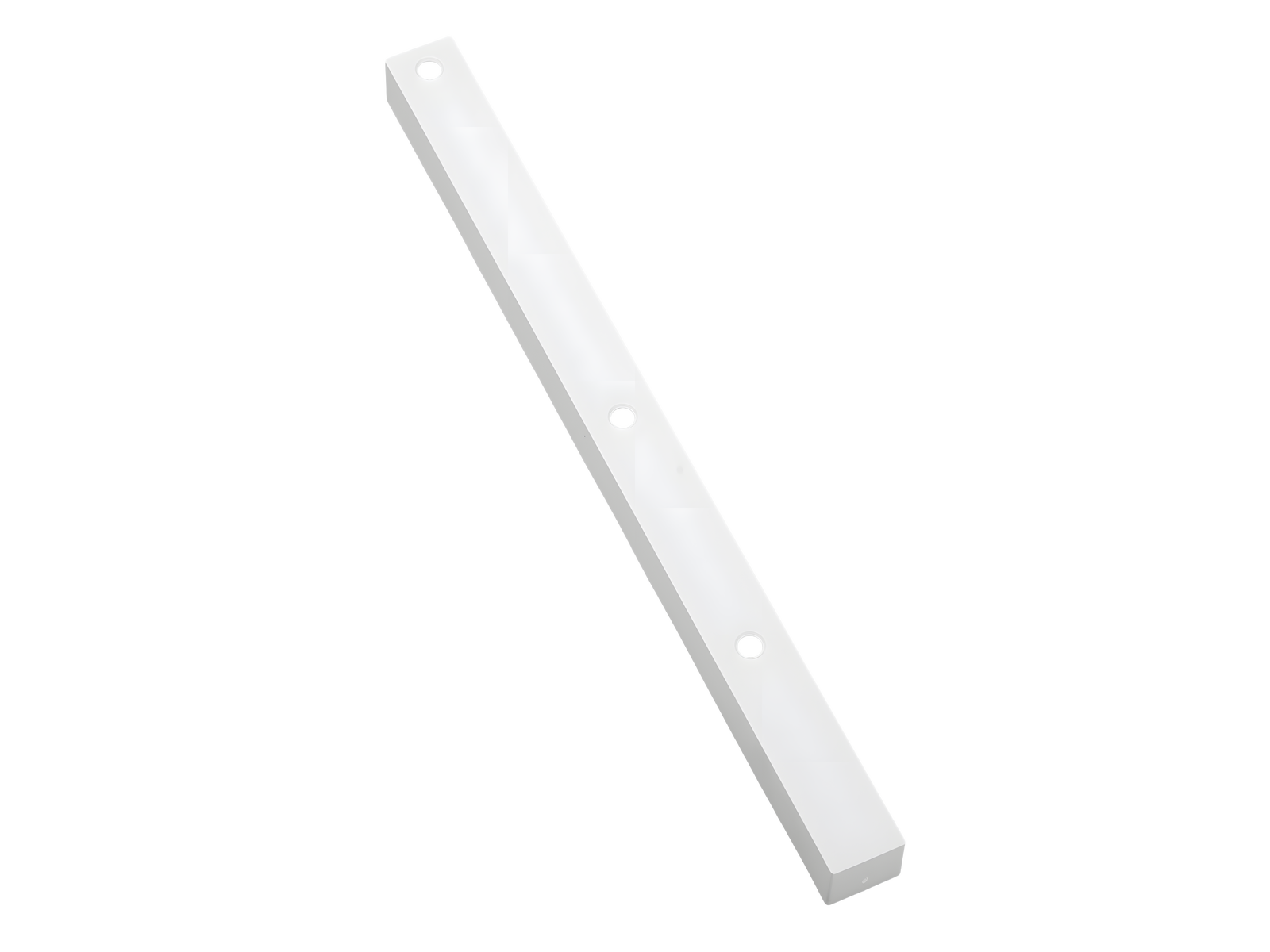

spacer (01359)

The picture may show a similar product.

Description

Part No.: 01359 000A

spacer

suitable for 01357

for UL applications

System

60Classic

Product group	06
Subgroup	30

pack size	10
EAN	4021267013592

ECLASS 6.1	27370390
ECLASS 7.1	27370390
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

for UL feeder circuits >250V

type number: D620-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020

Details UL
Standards
UL 508

for UL feeder circuits >250V

Electrical data UL
rated voltage (UL) AC:	600 V
rated frequency (UL):	50 / 60 Hz

Mechanical data
W x H x D:	20 x 274 x 18
weight:	13.1 kg/100

Application notes




for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

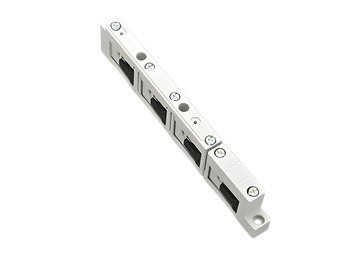

01357 000
universal busbar support UL
4-pole, with internal screw holes
for busbars: 12, 20, 30 x 5, 10
More
