busbar adapter 630 A (32746)

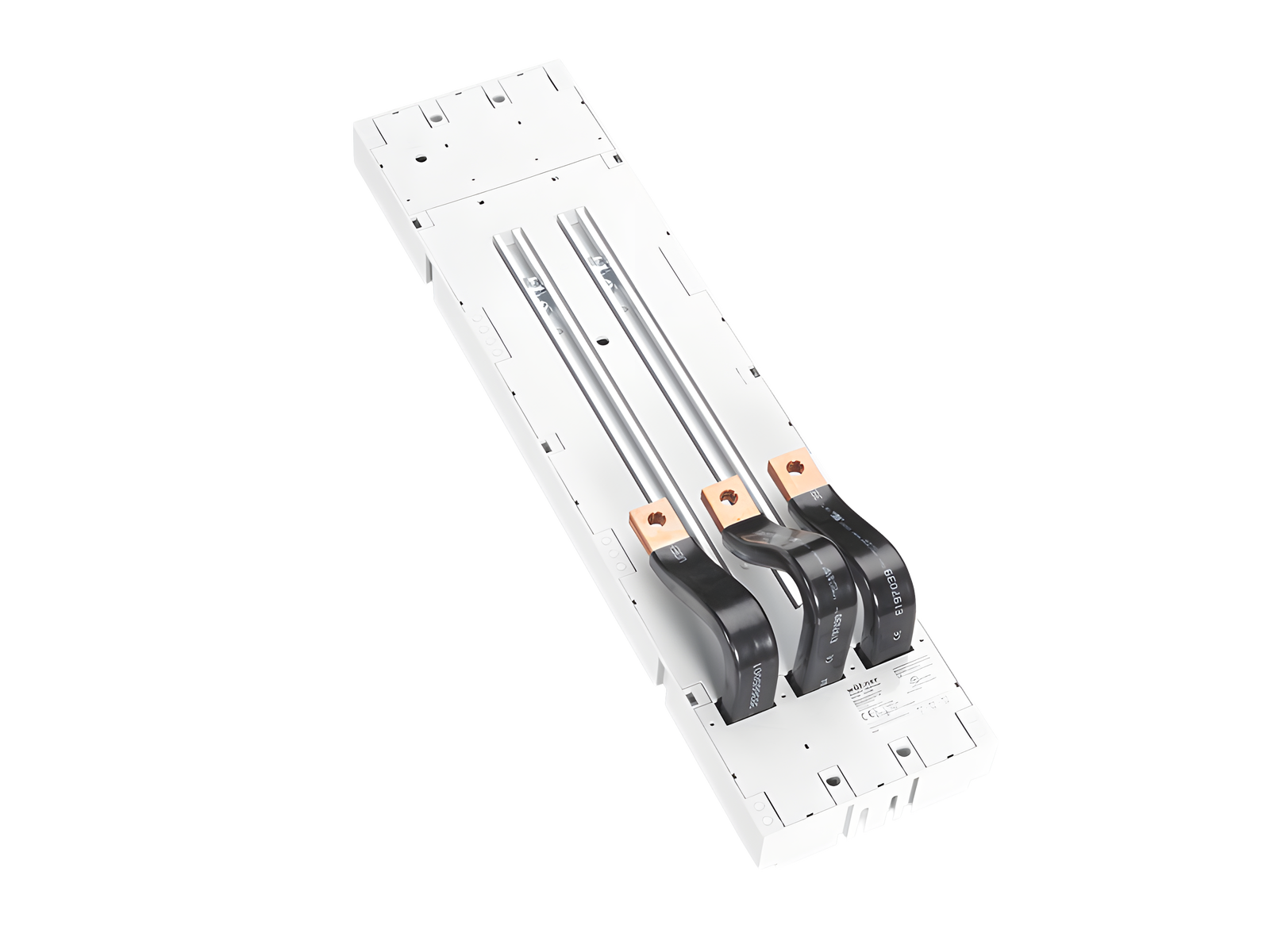

The picture may show a similar product.

Description

Part No.: 32746000A

EQUES^®185Power

busbar adapter 630 A

universal version up to 630 A, phase distance 43-46 mm

connection at bottom, flat clamp connection

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Advantages of the product

Device can be mounted covering the busbar support (in systems with and without CrossLink® touch-safe protection cover)

Product group	05
Subgroup	48

pack size	1
EAN	4021267327460

ECLASS 6.1	27370304
ECLASS 7.1	27370304
ETIM 4.0	EC001531
ETIM 5.0	EC001531

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

for UL feeder circuits >250V

type number: EQ185-A630-C

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020

Electrical data IEC
rated current (IEC):	630 A
rated voltage (IEC) AC:	690 V

rated isolation voltage U_i AC:	1000 V
rated surge voltage U_imp :	12 kV

rated peak withstand current I_pk max.:	63 kA
rated short-time withstand current I_cw (1.0 s) max.:	30 kA

the following required reductions have been determined by tests:
with MCCB ABB Tmax T5, XT5
with MCCB Allen-Bradley 140G-K
with MCCB Eaton NZM3
with MCCB Schneider Electric NSX630
with MCCB Schrack MC3
with MCCB Siemens 3VA14, 3VM64
with MCCB Siemens 3VA23, 3VA24
with MCCB Siemens 3VA64

Power dissipation of the adapter:
at 500A => 58W
at 530A => 65W
at 565A => 73W

Details UL
Standards
UL 508

for UL feeder circuits >250V

Electrical data UL
rated current (UL):	630 A
rated voltage (UL) AC:	1000 V
rated frequency (UL):	50 / 60 Hz
rated voltage (UL) DC:	1000 V

SCCR unprotected max.:	22 kA
	3 cycles (without OPD) @ 600 V AC

Mechanical data
W x H x D:	150 x 585 x 47
weight:	700.0 kg/100
poles:	3-pole
for busbars:	30, 40, 60, 80, 100, 120 x 10

CT can be integrated in the device:

Application notes

Reference	ready for current transformer

short-circuit withstandability:	the short-circuit capacity of the combination of adapter and MCCB depends on the MCCB

for UL feeder circuits >250V
