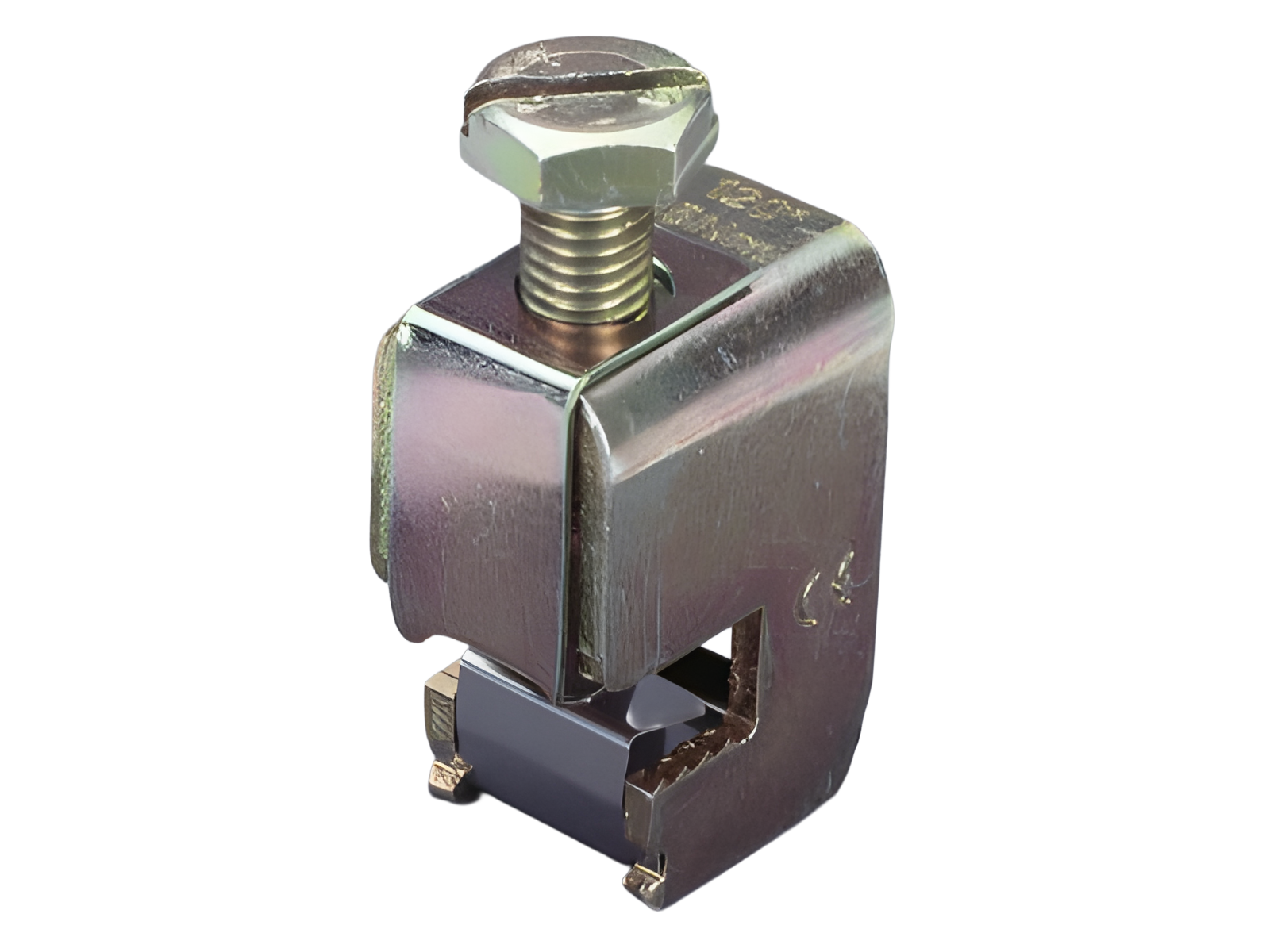

universal conductor terminal (01203)

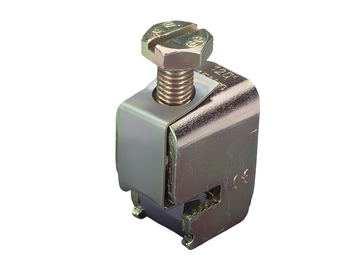

The picture may show a similar product.

Description

Part No.: 01203000

CRITO^®

universal conductor terminal

16 - 120 mm², AWG 6 - 250 MCM

for busbars flat busbars 10 mm and section busbars

System

60Classic, 30Compact 3P, centre feed unit, 100Energy

Advantages of the product

Terminal with integrated holding spring, captive clamping screw and opened terminal space.
Indication of nominal cross-section and tightening torque noted on the terminal.

Product group	07
Subgroup	18

pack size	25
EAN	4021267012038

ECLASS 6.1	27141146
ECLASS 7.1	27141146
ETIM 4.0	EC000001
ETIM 5.0	EC000001

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

CSA , UL , DNV GL

type number: 528

UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003

Electrical data IEC
rated current (IEC):	250 A
rated voltage (IEC) AC:	800 V

rated peak withstand current I_pk max.:	62.8 kA
rated short-time withstand current I_cw (1.0 s) max.:	20.8 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.0 W.

(The power dissipation at full load would be 0.0 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	1000 V
max. permitted voltage (IEC) DC:	1500 V
current capacity (IEC) max.:	440 A

Details UL
Standards
UL 508

suitable for field-installed conductors

Electrical data UL
rated current (UL):	255 A
rated voltage (UL) AC:	600 V
rated frequency (UL):	50 / 60 Hz

Mechanical data
W x H x D:	24 x 36 x 55
weight:	10.9 kg/100
for busbars:	flat busbars 10 mm and section busbars

Terminal points
min. cross-section:	16 mm²
max. cross-section:	120 mm²
Terminal space:	17 x 15
Md min.:	12.0 Nm
Md max.:	18.0 Nm
Not suitable for aluminium cables !

16 - 120 mm² / AWG 4 - MCM 250 flexible cables, directly or with wire-end ferrule, solid round cables, lam. Cu 4 x 15.5 x 0,8 or 6 x 15.5 x 0,8 or 10 x 15.5 x 0,8 (flexible cables of maximum cross-section may not fit when using wire-end ferrule)

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.


The suitability for feeder circuits (meeting the required feeder spacings) depends on the installation conditions.
