for UL feeder circuits >250V

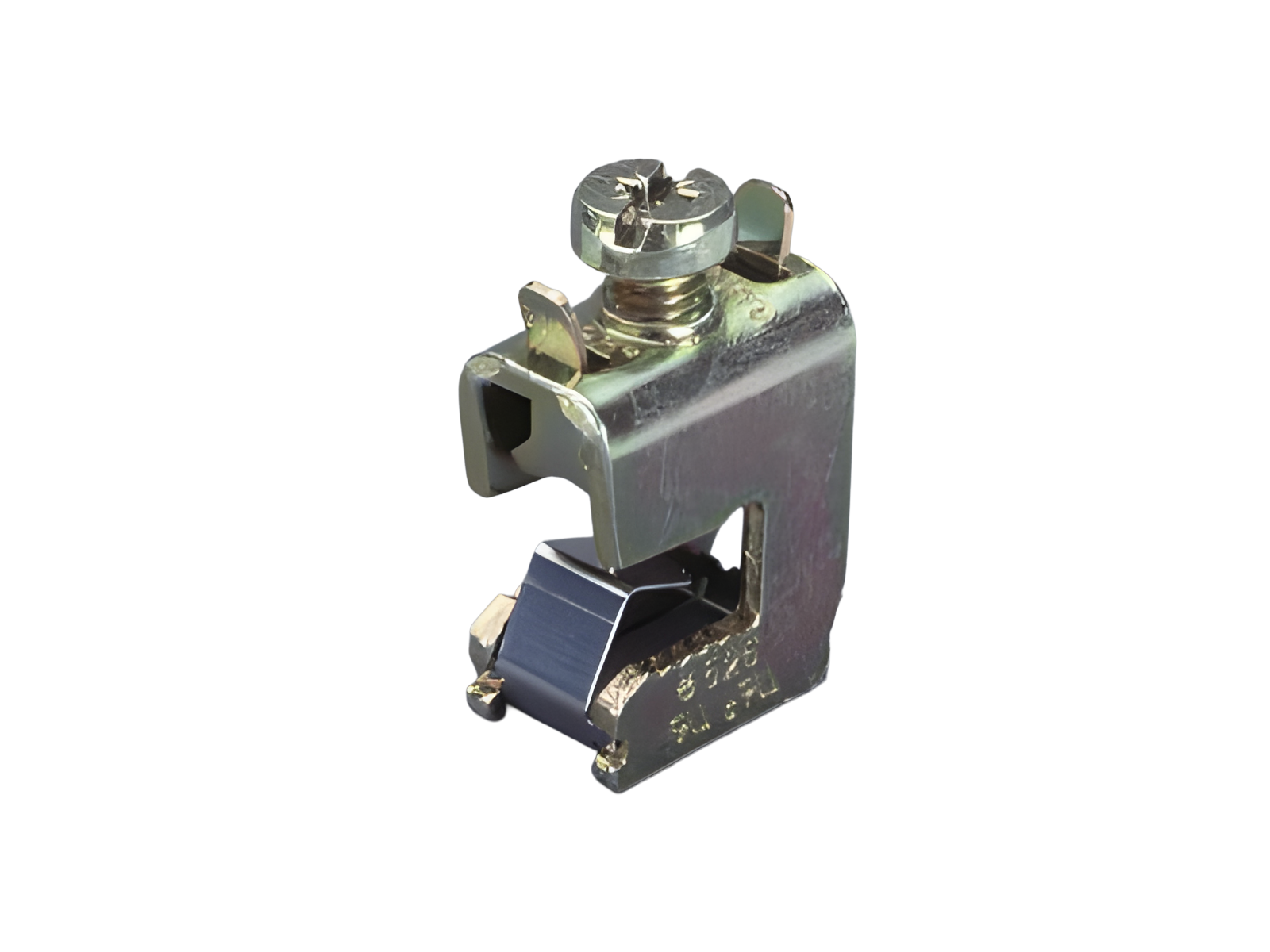

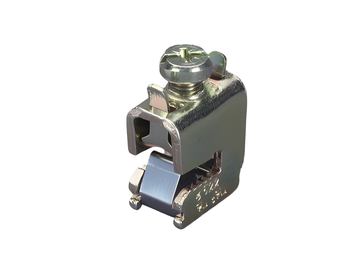

The picture may show a similar product.
Part No.: 01290000
CRITO®
universal conductor terminal
4 - 35 mm², AWG 12 - 2
for busbars flat busbars 10 mm
System
60Classic, 30Compact 3P, 100Energy
Advantages of the product
Terminal with integrated holding spring, captive clamping screw and opened terminal space.
Indication of nominal cross-section and tightening torque noted on the terminal.
| Product group | 07 |
| Subgroup | 06 |
| pack size | 50 |
| EAN | 4021267012908 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Approvals
CSA , UL , DNV GL
type number: 526
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| Rated current (IEC): | 115 A |
| rated voltage (IEC) AC: | 690 V |
| rated peak withstand current Ipk max.: | 34.9 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current capacity (IEC) max.: | 270 A |
| Details UL | |
| Standards | |
| UL 508 |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 115 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| for wires UL: | Cu 75°C |
| Mechanical data | |
| W x H x D: | 16 x 29 x 35 |
| weight: | 4.7 kg/100 |
| for busbars: | flat busbars 10 mm |
| Terminal points | |
| min. cross-section: | 4 mm² |
| max. cross-section: | 35 mm² |
| Terminal space: | 10 x 11 |
| Md min.: | 4.8 Nm |
| Md max.: | 7.2 Nm |
| Not suitable for aluminium cables ! | |
| for wires UL: | Cu 75°C |
|
4 - 35 mm² / AWG 10 - AWG 2 |
|
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
|
The suitability for feeder circuits (meeting the required feeder spacings) depends on the installation conditions. |
