holder for flexible copper (01299)

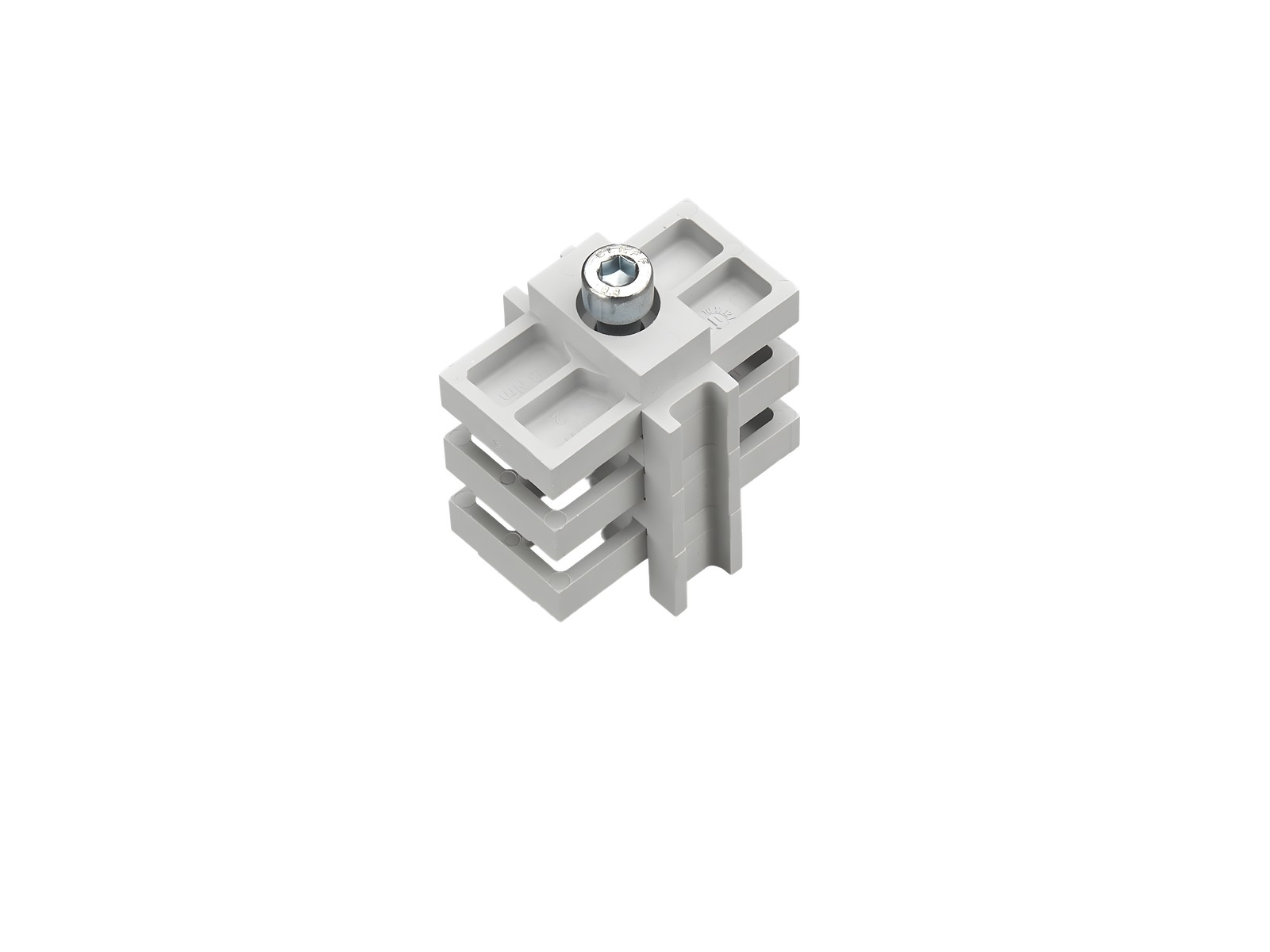

The picture may show a similar product.

Description

Part No.: 01299 000

holder for flexible copper

for multiple fastening for lam. Cu of 5x 40 x 1 to 10x 100 x 1

Product group	06
Subgroup	30

pack size	4
EAN	4021267012991

ECLASS 6.1	27370390
ECLASS 7.1	27370390
ETIM 4.0	EC002498
