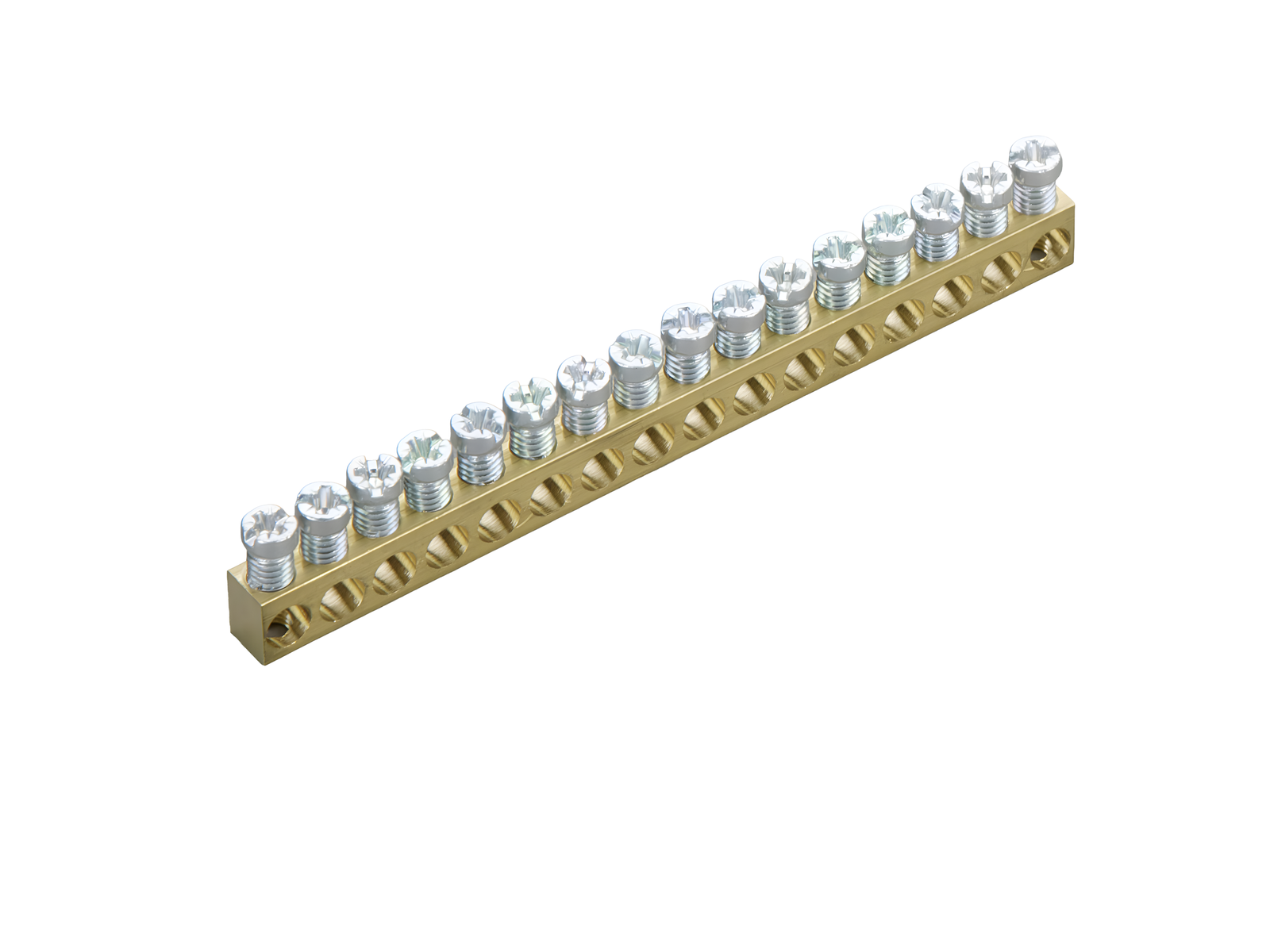

earth/neutral busbar 63A (01128)

The picture may show a similar product.

Description

Part No.: 01128000

earth/neutral busbar 63A

16 terminal points

protected against self-loosening

Product group	06
Subgroup	33

pack size	100
EAN	4021267011284

ECLASS 6.1	27141139
ECLASS 7.1	27141139
ETIM 4.0	EC000485
ETIM 5.0	EC000485

Approvals

Standards

IEC 60664-1:2007

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60664-1:2007

Electrical data IEC
rated current (IEC):	63 A

Mechanical data
W x H x D:	104 x 9 x 6.5
weight:	4.3 kg/100

Terminal points
max. cross-section:	10 mm²

0.5 - 6mm² flexible with wire-end ferrule 0.75 - 6mm² solid round

Application notes

Reference	max. Drehmoment = 2Nm

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

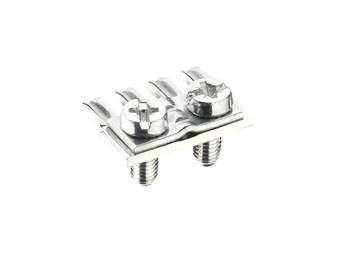

01114000
CRITO^®
connection terminal for PE/N bar
35 mm²
suitable for PE and N busbars 01126 - 01130
More

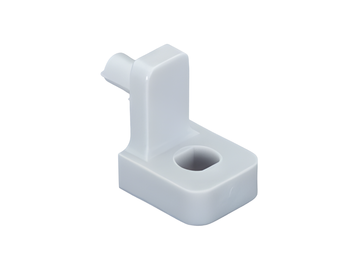

01119000
terminal support for PE/N-bar
screw-on
More

01120000
terminal support for PE/N-bar
screw-on
More

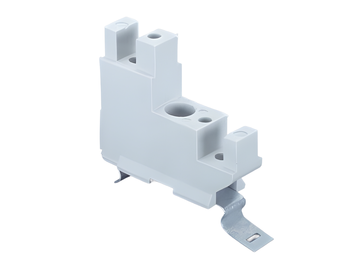

01121000
terminal support for PE/N-bar
snap-on to mounting rail TH35
More

08825000
rail mounting
for mounting rail 35 x 7.5
for PE/N bars 01126 - 01129 and 01926 - 01932
More
