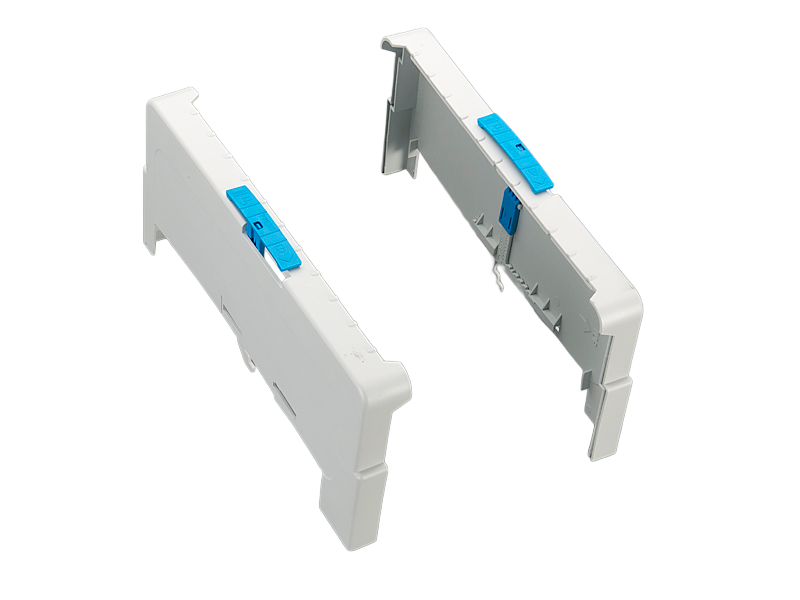

set of holders for cover sections (01137)

The picture may show a similar product.

Description

Part No.: 01137000

set of holders for cover sections

for 4-pole busbar systems

set consisting of left and right holder, for covers 01599, 01555 and 01417

for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars

System

60Classic

Product group 07
Subgroup 36
pack size 1
EAN 4021267011376
catalog page 2020 : 3.4
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002848

Approvals

Standards

IEC 61439-1:2011
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

CSA , UL , DNV GL , EAC

for UL feeder circuits >250V

type number: TC60-L

EAC Type: CO-S

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2011
IEC 60999-1:1999
IEC 60999-2:2003
Electrical data
short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
Details UL
Standards
UL 508
for UL feeder circuits >250V
Mechanical data
W x H x D: 28 x 264 x 92
weight: 21.0 kg/100
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars

Links

Downloads

Accessories

01417000
cover section
top / bottom, slotted, 1.10 m long, for holders 01136 or 01137
3 x 118 x 1100
More

01555000
cover section
top / bottom, 1.10 m long, for holders 01136 or 01137
3 x 109 x 1100
More

01599000
front cover section, for 4-pole systems
front mounted, 1.10 m long, for holder 01137
3 x 250 x 1100
More

Usage

01162000
CRITO®60Classic
connection set, 4-pole, without cover
lam. Cu. 20 - 32 x 3 - 15
for busbars: 20, 25, 30 x 5, 10 and section busbars
More

01070000
CRITO®
brace terminal
600 - 1200 mm²
terminal space 68 x 28
for busbars: 30 x 10 and section busbars
More

01071000
CRITO®
brace terminal
1000 - 2000 mm²
terminal space 105 x 28
for busbars: 30 x 10 and section busbars
More

01147000
CRITO®60Classic
connection set, 4-pole, without cover
95 -  300 mm², AWG 3/0 - 600 MCM
for busbars: 20, 25, 30 x 5, 10 and section busbars
More

01069000
CRITO®
brace terminal
500 - 1000 mm²
terminal space 55 x 28
for busbars: 30 x 10 and section busbars
More
