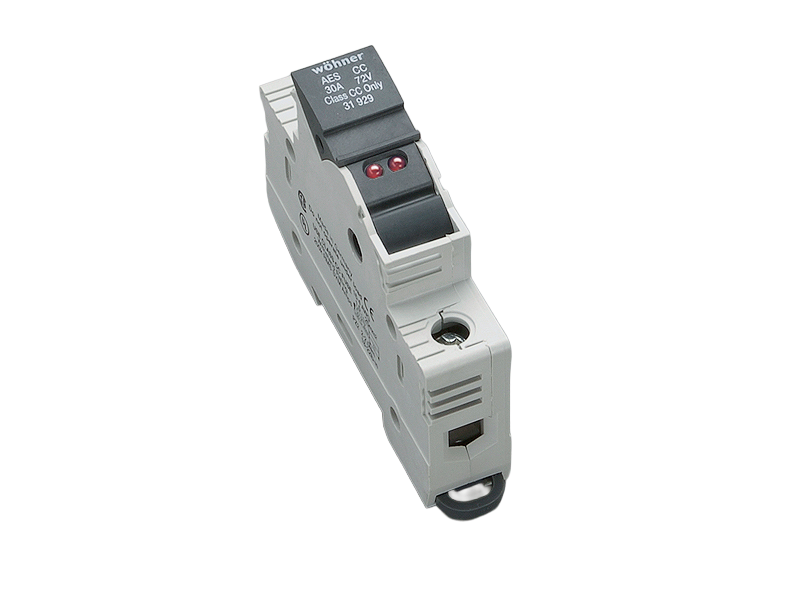

The picture may show a similar product.
Part No.: 31929 000
AMBUS Panel
holder for cylindrical fuses, with LED
Class CC / 1P
30 A / 12 - 72 V
indication (LED) of a tripped fuse link
for mounting rail
System
Panel
Advantages of the product
large clamping range, also for two identical conductors (adjacent)
holder for label
with indicator for tripped fuse
any polarity for DC voltage
| Product group | 17 |
| Subgroup | 07 |
| pack size | 12 |
| EAN | 4021267319298 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002705 |
| ETIM 8.0 | EC002705 |
| ETIM 10.0 | EC002705 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J
UL 4248-1
UL 4248-4
Approvals
UL , CCC
type number: AESCC
EAC Type: AES
UL file: E230163, UL category (for USA): IZLT https://www.ul.com
UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com
CCC certificate: 21107299296
| for fuse links size: | Class CC |
| fuse links acc. to standard: | UL 248-4 |
| permitted power dissipation of the fuse-link: | 4 W |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016, Fuse system J |
| Electrical data IEC | |
| min. operating voltage AC: | 12 V |
| min. operating voltage DC: | 12 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,2 W.
(The power dissipation at full load would be 0,3 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| min. permitted operation temperature | -40°C |
| indicator light operating voltage range: 12 - 72 V AC / DC |
| Details UL | |
| Standards | |
|
UL 4248-1
UL 4248-4 |
| suitable for field-installed conductors |
| Electrical data UL | |
| rated current (UL): | 30 A |
| rated voltage (UL) AC: | 72 V |
| min. operating voltage AC: | 12 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 72 V |
| min. operating voltage DC: | 12 V |
| for wires UL: | Cu 60°C |
| SCCR: | 200 kA |
| Mechanical data | |
| W x H x D: | 18 x 81 x 58 |
| weight: | 6,2 kg/100 |
| poles: | 1-pole |
| Mounting: | for mounting rail |
| degree of protection: | IP20 |
| front degree of protection: | IP20 |
| Terminal points | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 11 mm |
| min. cross-section: | 0,75 mm² |
| max. cross-section: | 25 mm² |
| Md min.: | 2,0 Nm |
| Md max.: | 2,5 Nm |
| Not suitable for aluminium cables ! | |
| torque (UL): | 18 - 22 / 22 - 26 (AWG 6 - AWG 4) lb-in |
| for wires UL: | Cu 60°C |
|
connection of 2 wires (of same cross-section)
|
|
| Material properties | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
|
The indicator light signals that the fuse has tripped, but only when the closed fuse-holder is under voltage. |
|
| permitted power dissipation of the fuse-link: | 4 W |
