for UL feeder circuits >250V

power supply 10 A (36200000A)

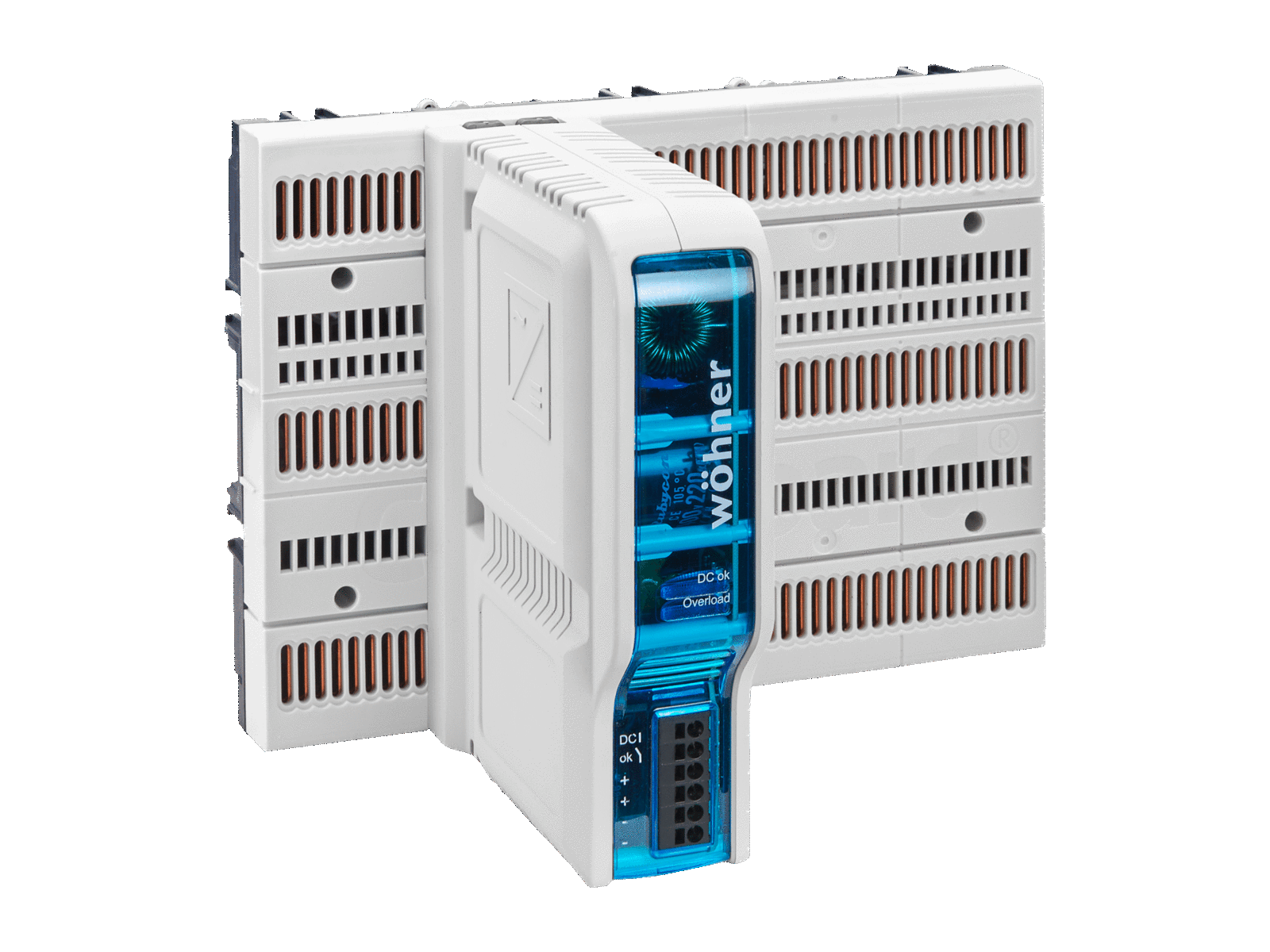

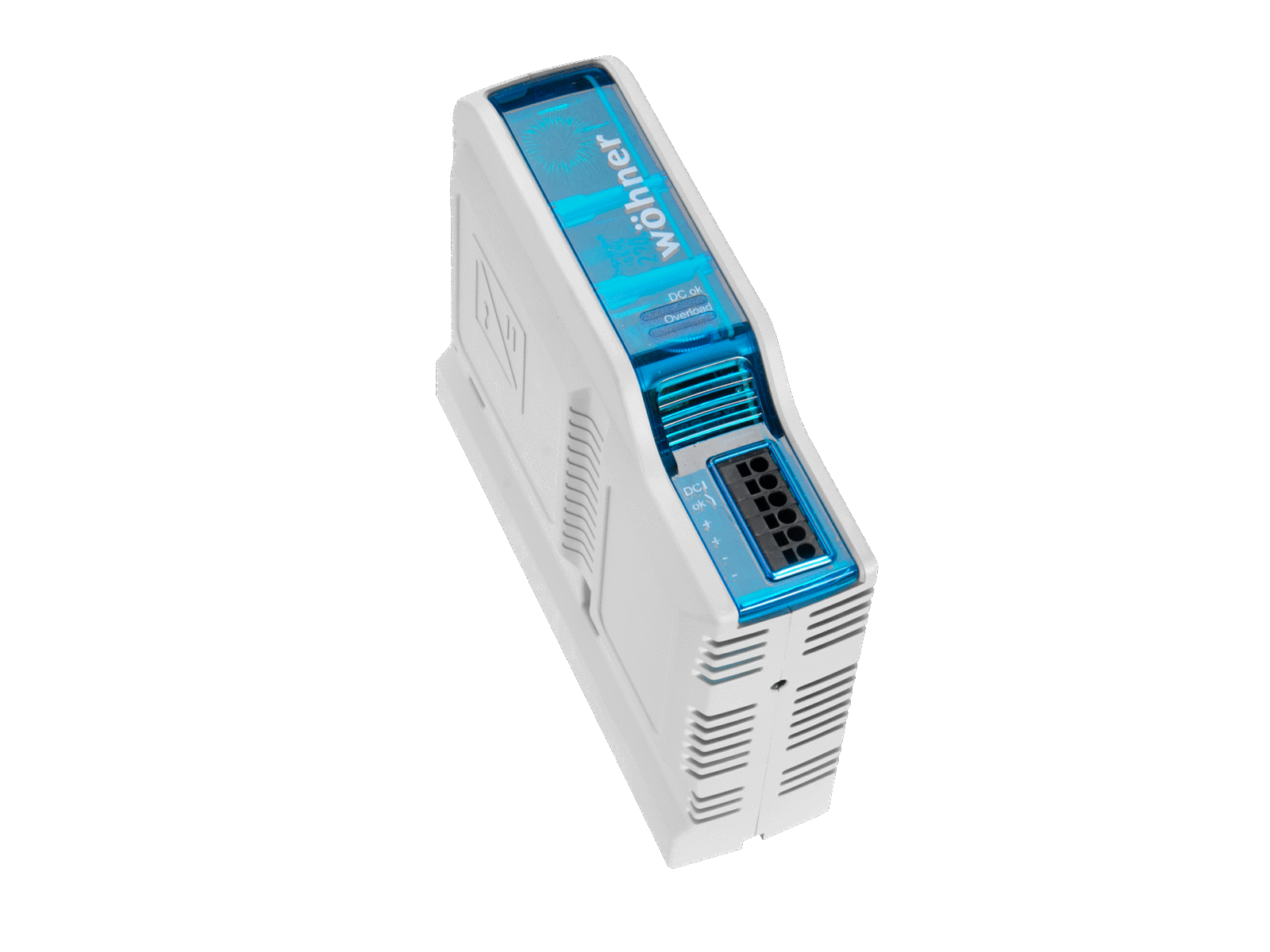

The picture may show a similar product.

Description

Part No.: 36200 000A

BROOME10 CrossBoard

power supply 10 A

400 V AC / 24 V DC, with push-in terminals

with CrossLink interface

System

CrossBoard 125A / 250A, CrossBoard 800 A

Advantages of the product

Direct installation to CrossBoard®
Efficiency of 95% permits an installation width of 45 mm
Self-protected at short-circuit with intelligent re-start
No pre-fuse needed
Overvoltage category III

Product group 21
Subgroup 40
pack size 1
EAN 4021267362003
ECLASS 14.0 27142325
ETIM 5.0 EC002540
ETIM 8.0 EC002540
ETIM 10.0 EC002540

Approvals

Standards

IEC 61010-1:2010
IEC 61010-2-201:2013

UL 61010-1

UL 61010-2-201

Approvals

IEC (CB) , UL

for UL feeder circuits >250V

type number: BROOME10

EAC Type: PS

UL file: E497002, UL category (for USA): NMTR. https://www.ul.com

UL file: E497002, UL category (for Canada): NMTR7. https://www.ul.com

Technical data

Details IEC
Standards
IEC 61010-1:2010
IEC 61010-2-201:2013
Electrical data IEC
rated voltage (IEC) AC: 480 V
min. operating voltage AC: 380 V
output voltage DC: 24 V
output current: 10 A
voltage control: No
typical hold-up time (400 V): 20 ms
typical hold-up time (480 V): 20 ms
separation input / output: SELV / PELV
over-voltage protection: 32 V
parallel operation possible: Yes
serial operation possible: Yes
rated frequency (IEC): 50 / 60 Hz
rated isolation voltage Ui AC: 500 V
rated surge voltage Uimp : 4 kV

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 8,2 W.

(The power dissipation at full load would be 12,8 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
min. permitted operation temperature -25°C
max. permitted operation temperature 70°C
min. permitted temperature for transport and storage -25°C
max. permitted temperature for transport and storage 70°C
2-pole feeding at L1 and L2
Details UL
Standards
UL 61010-1
UL 61010-2-201
for UL feeder circuits >250V
Electrical data UL
rated voltage (UL) AC: 480 V
min. operating voltage AC: 380 V
rated frequency (UL): 50 / 60 Hz
Mechanical data
W x H x D: 45 x 160 x 130
weight: 71,8 kg/100
poles: 2-pole
degree of protection: IP30
for vertical busbar system: Yes
for horizontal busbar system: No
Terminal points
push-in connection
AWG14 (2,5 mm²)
screw drive: 0.5x3
wire stripping: 10 mm
min. cross-section: 0,2 mm²
max. cross-section: 2,5 mm²

min. cross-section UL: AWG 24
max. cross-section UL: AWG14


f+AE max. 1,5 mm²
Material properties
halogen-free: Yes

Application notes

for UL feeder circuits >250V
