for UL feeder circuits >250V

connection module (01441000A)

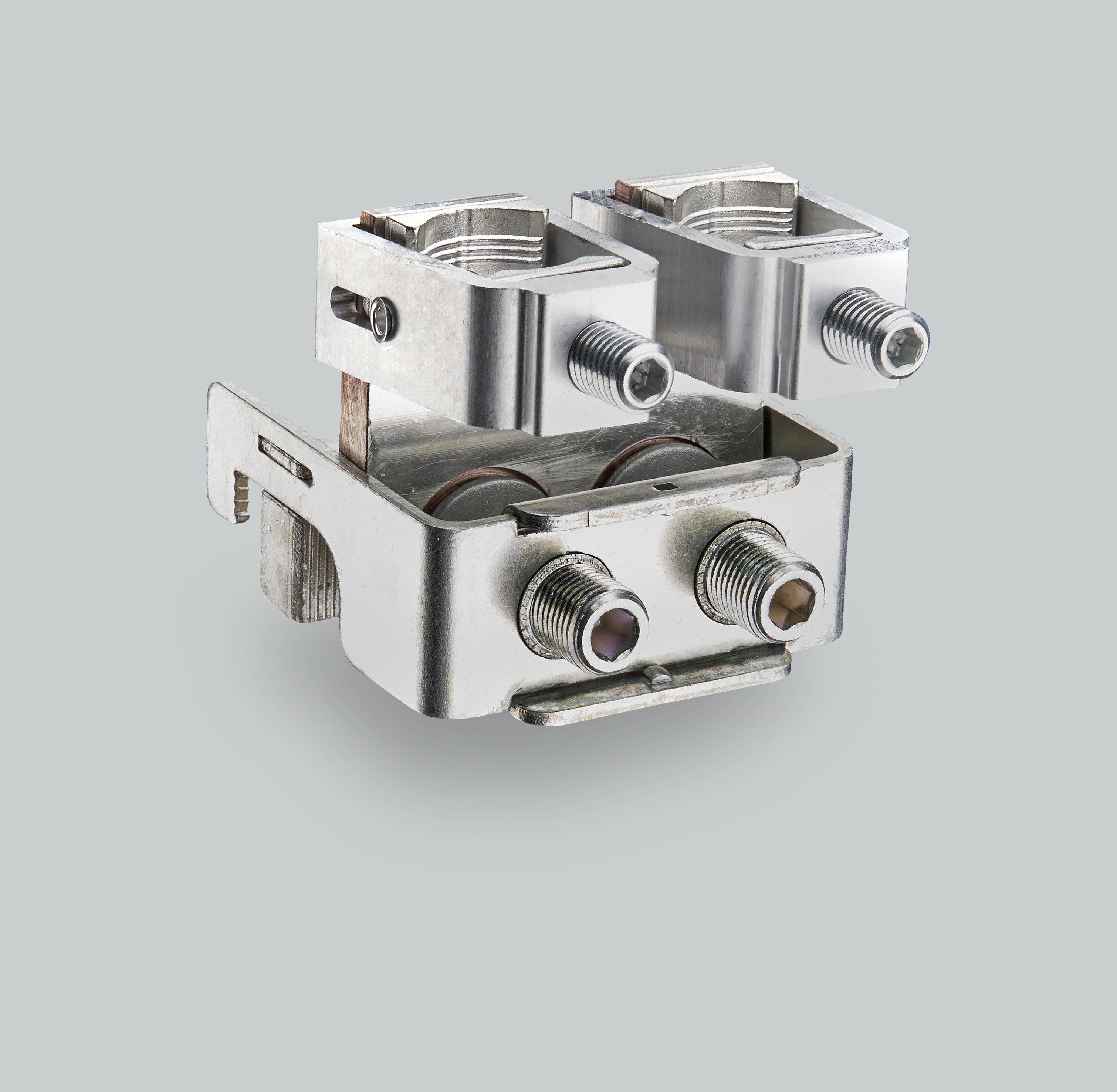

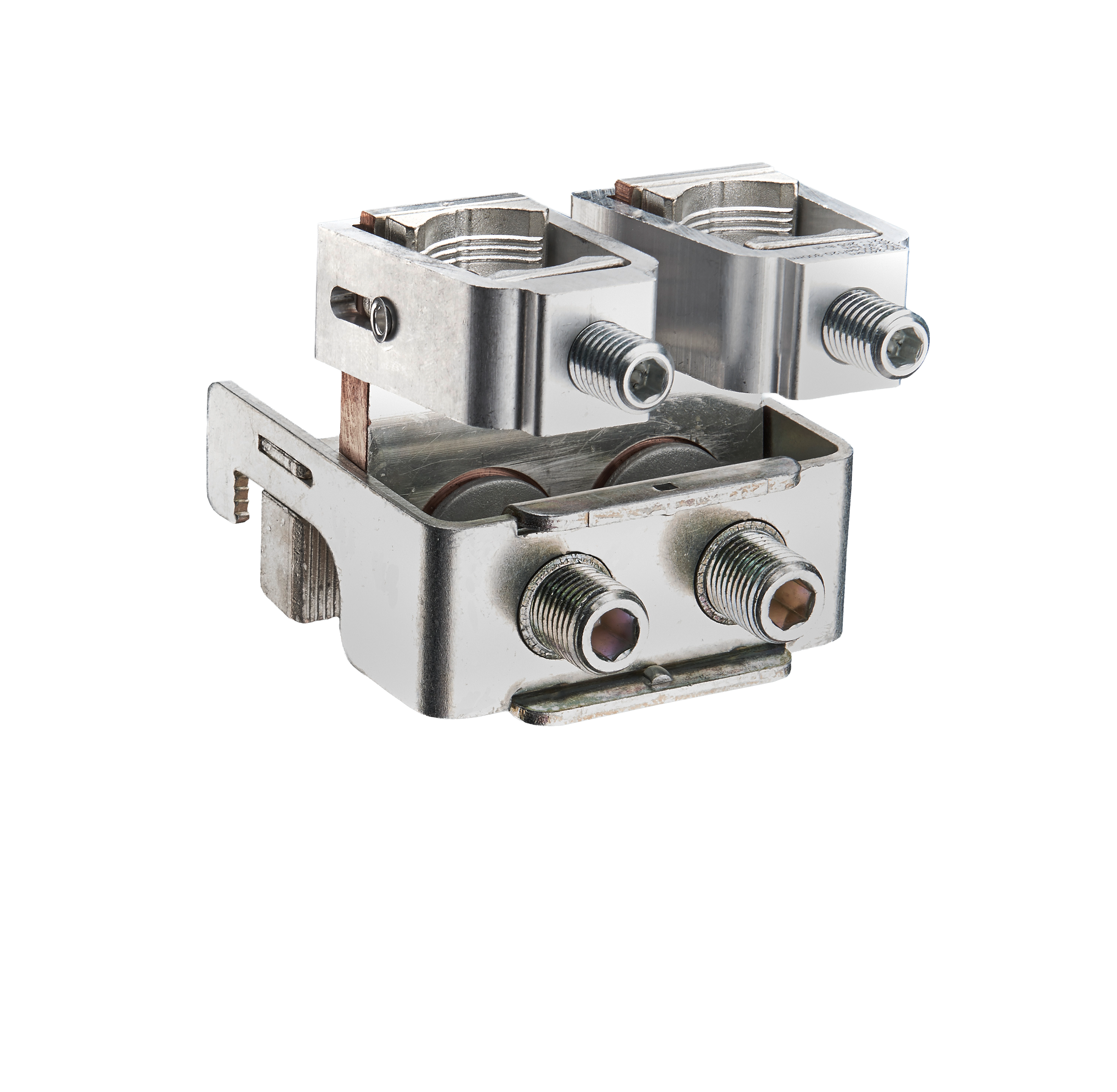

The picture may show a similar product.

Description

Part No.: 01441 000A

CRITO 185Power

connection module

for direct cable connection, with 2 box terminals 300 mm²

without cover

connection top or bottom

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Product group 07
Subgroup 54
pack size 1
EAN 4021267014414
ECLASS 14.0 27250116
ETIM 5.0 EC000001
ETIM 8.0 EC000001
ETIM 10.0 EC000001

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: CR185-A2x300

EAC Type: TE-X

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Electrical data IEC
rated current (IEC): 1000 A
rated voltage (IEC) AC: 690 V
rated peak withstand current  Ipk max.: 75.5 kA
rated short-time withstand current Icw (0.5 s) max.: 35.4 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 18,8 W.

(The power dissipation at full load would be 29,4 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 1000 V
max. permitted voltage (IEC) DC: 1500 V
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 840 A
rated voltage (UL) AC: 1000 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 1000 V
SCCR unprotected max.: 35 kA
3 cycles (without OPD) @ 1000 V AC
Mechanical data
W x H x D: 98 x 88 x 100
weight: 133,0 kg/100
poles: 1-pole
for busbars: 30, 40, 60, 80, 100, 120 x 10

with 2 box terminals for direct connection of cables
round stranded from 120 to 300mm²
sector stranded from 150 to 300mm²

Terminal points
min. cross-section: 120 mm²
max. cross-section: 300 mm²
Material properties
halogen-free: Yes

Application notes

The insulation performance of the article depends on the installation conditions.
for UL feeder circuits >250V

Links (Prices, CAD data)

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD data WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

covers

01437 000A
cover cap incl. rear touch protection cover
for connection modules 185Power
for use with CrossLink®185 touch-safe protection cover modules
