for UL feeder circuits >250V

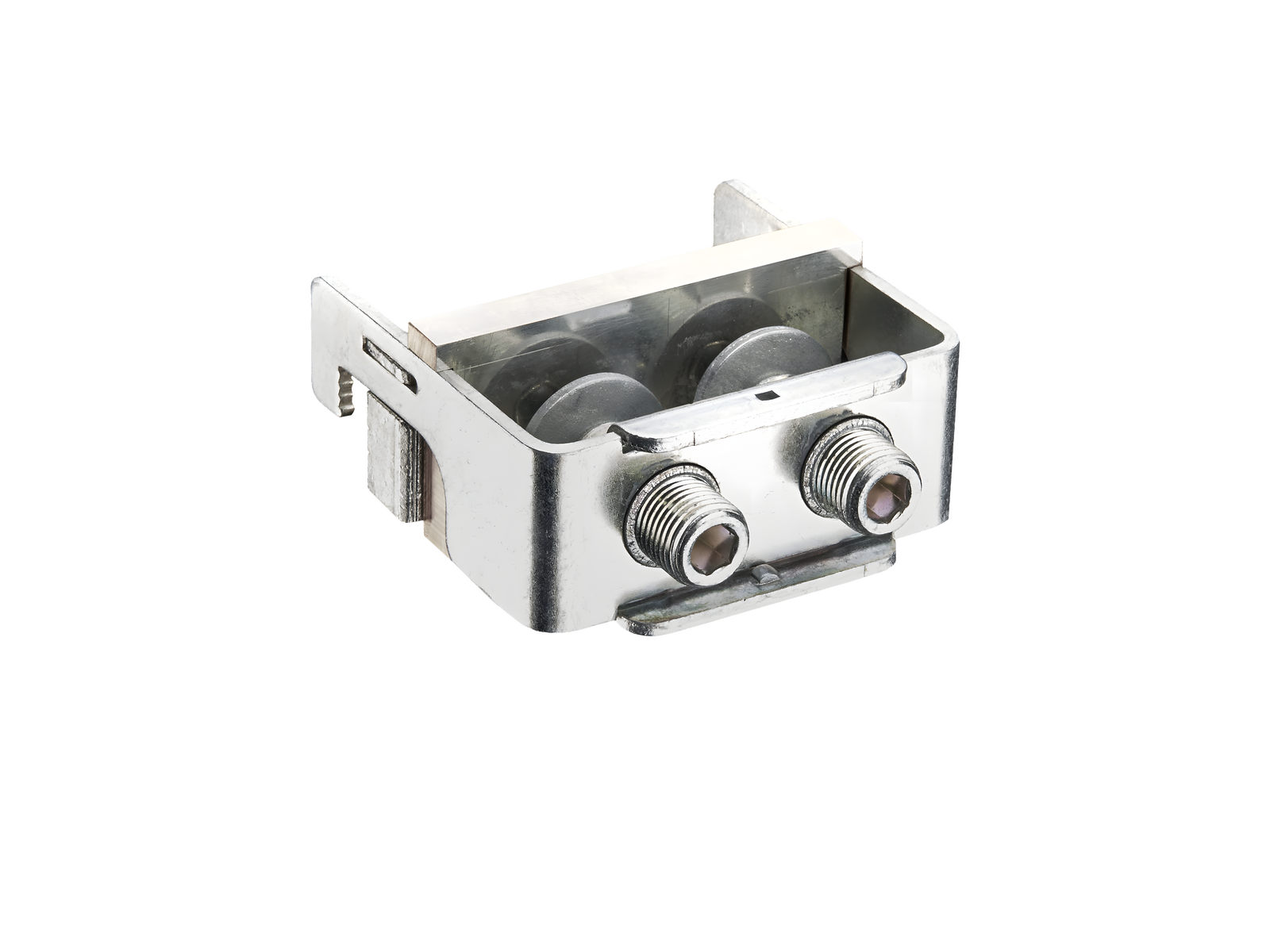

The picture may show a similar product.
Part No.: 01442 000A
CRITO 185Power
connection module
for lam. Cu max. 2x 80 x 10
without cover
connection top or bottom
for busbars 30, 40, 60, 80, 100, 120 x 10
System
185Power
Advantages of the product
also rigid copper busbars can be connected if they are installed without mechnical tension
Terminals with captive clamping screws
| Product group | 07 |
| Subgroup | 54 |
| pack size | 1 |
| EAN | 4021267014421 |
| ECLASS 14.0 | 27250116 |
| ETIM 5.0 | EC000001 |
| ETIM 8.0 | EC000001 |
| ETIM 10.0 | EC000001 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: CR185-A80
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| rated current (IEC): | 1400 A |
| rated voltage (IEC) AC: | 690 V |
| rated peak withstand current Ipk max.: | 84.6 kA |
| rated short-time withstand current Icw (1.0 s) max.: | 40.5 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| the following short-circui values can be reached, if the phase distance of the connection modules is extended from 100mm to 150mm : Ipk : 107 kA Icw : 50,7 kA / 1s |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 1400 A |
| rated voltage (UL) AC: | 1000 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 50 kA |
| 3 cycles (without OPD) @ 1000 V AC |
| Mechanical data | |
| W x H x D: | 98 x 88 x 95 |
| weight: | 94,5 kg/100 |
| poles: | 1-pole |
| for busbars: | 30, 40, 60, 80, 100, 120 x 10 |
| Terminal points | |
| lam. Cu width: | 50 - 80 mm |
| lam. Cu thickness: | 5 - 10 mm |
| number of lam. Cu: | 2 |
| Material properties | |
| halogen-free: | Yes |
| The insulation performance of the article depends on the installation conditions. | |
| for UL feeder circuits >250V |
01437
000A
cover cap incl. rear touch protection cover
for connection modules 185Power
for use with CrossLink 185 touch-safe protection cover modules
