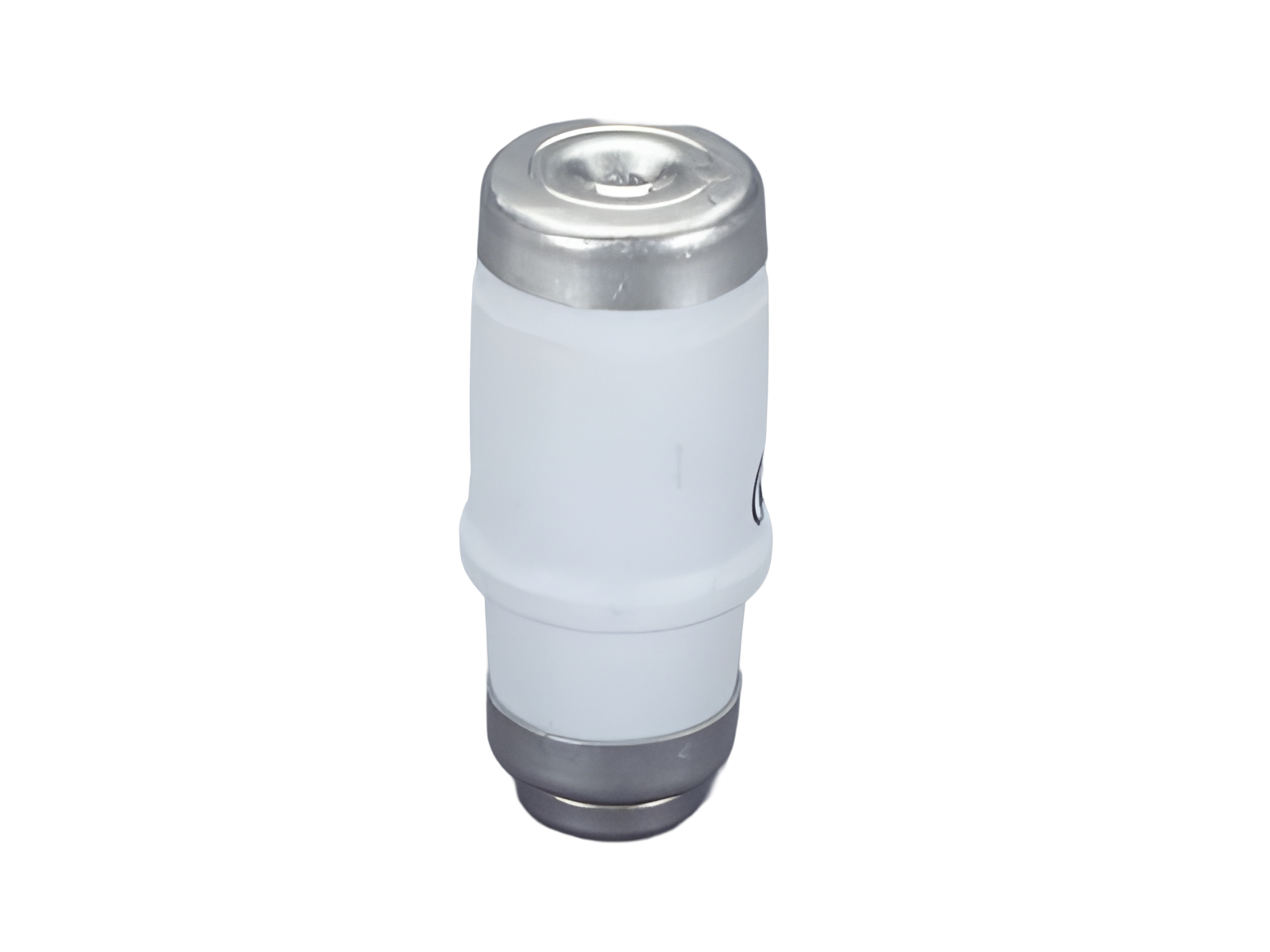

The picture may show a similar product.
Part No.: 01697000A
D02 fuse link 32 A
400 V, gG
E 18
with silver plated contacts
| Product group | 22 |
| Subgroup | 01 |
| pack size | 10 |
| EAN | 4021267016975 |
| ECLASS 6.1 | 27142119 |
| ECLASS 7.1 | 27142119 |
| ETIM 4.0 | EC001642 |
| ETIM 5.0 | EC001642 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
| size: | D02 / E 18 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
| Electrical data IEC | |
| rated current (IEC): | 32 A |
| rated voltage (IEC) AC: | 400 V |
| rated voltage (IEC) DC: | 250 V |
| operation class | gG |
| rated short-circuit breaking capacity AC | 50 kA |
| rated short-circuit breaking capacity DC | 8 kA |
| Mechanical data | |
| weight: | 1,3 kg/100 |
