Part No.: 32701000A

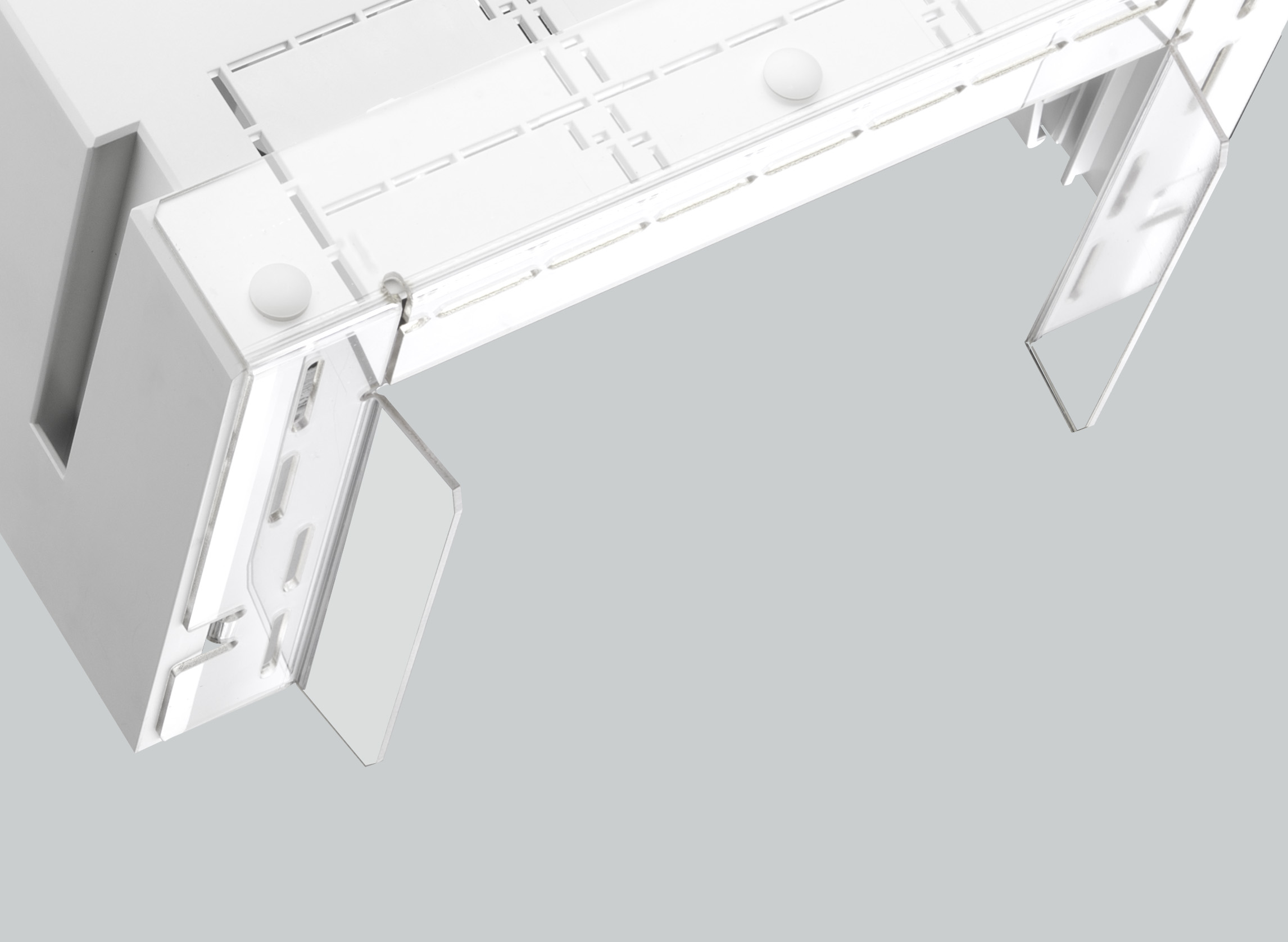

IP20 protection cover (front)
incl. 3 top covers
300 mm wide
for Eaton NZM4, GE FK1600, Legrand DPX³ 1600
System
185Power
Product group | 05 |
Subgroup | 57 |
pack size | 1 |
EAN | 4021267327019 |
ECLASS 6.1 | 27370390 |
ECLASS 7.1 | 27370390 |
ETIM 4.0 | EC002498 |
ETIM 5.0 | EC002498 |
Standards
IEC 61439-1:2020
type number: C185-E
CCC approval: no certification required
Details IEC | |
Standards | |
IEC 61439-1:2020 |
Mechanical data | |
W x H x D: | 297 x 232 x 194 |
weight: | 123,8 kg/100 |
poles: | 3-pole |
short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
32704000A
touch-safe protection shroud IP20 (rear installation)
for all adapters
More
32731000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, clamp connection
for: Eaton NZM4 (1600 A), Siemens 3VL8 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
32789000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, screw connection, changed phase
for: Eaton NZM4 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More
32809000A
EQUES®185Power
busbar adapter 1440 A
300 x 652, connection top, screw connection
for: GE FK1600, Legrand DPX³ 1600
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More
32763000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top, clamp connection
for: Eaton NZM4 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
32762000A
EQUES®185Power
busbar adapter 1250 A
300 x 652, connection top, clamp connection
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
32761000A
EQUES®185Power
busbar adapter 1440 A
300 x 652, connection top, clamp connection
for: Eaton NZM4 (1600 A), Siemens 3VL8 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
32787000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection bottom, clamp connection, changed phase
for: Eaton NZM4 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
32788000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, clamp connection, changed phase
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
32790000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, screw connection, changed phase
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More
32779000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection top / bottom, screw connection
for: Eaton NZM4 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More
32780000A
EQUES®185Power
busbar adapter 1400 A
300 x 652, connection top / bottom, screw connection
for: Eaton NZM4 (1600 A), Siemens 3VL8 (1600 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More
32781000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection top / bottom, screw connection
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
not suitable for systems with CrossLink protection modules
More
32732000A
EQUES®185Power
busbar adapter 1200 A
300 x 652, connection bottom, clamp connection
for: Eaton NZM4 (1250 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
32733000A
EQUES®185Power
busbar adapter 1000 A
300 x 652, connection bottom, clamp connection
for: Eaton NZM4 (630 A, 800 A, 1000 A)
for busbars: 30, 40, 60, 80, 100, 120 x 10
More
