The picture may show a similar product.
Part No.: 01433000A

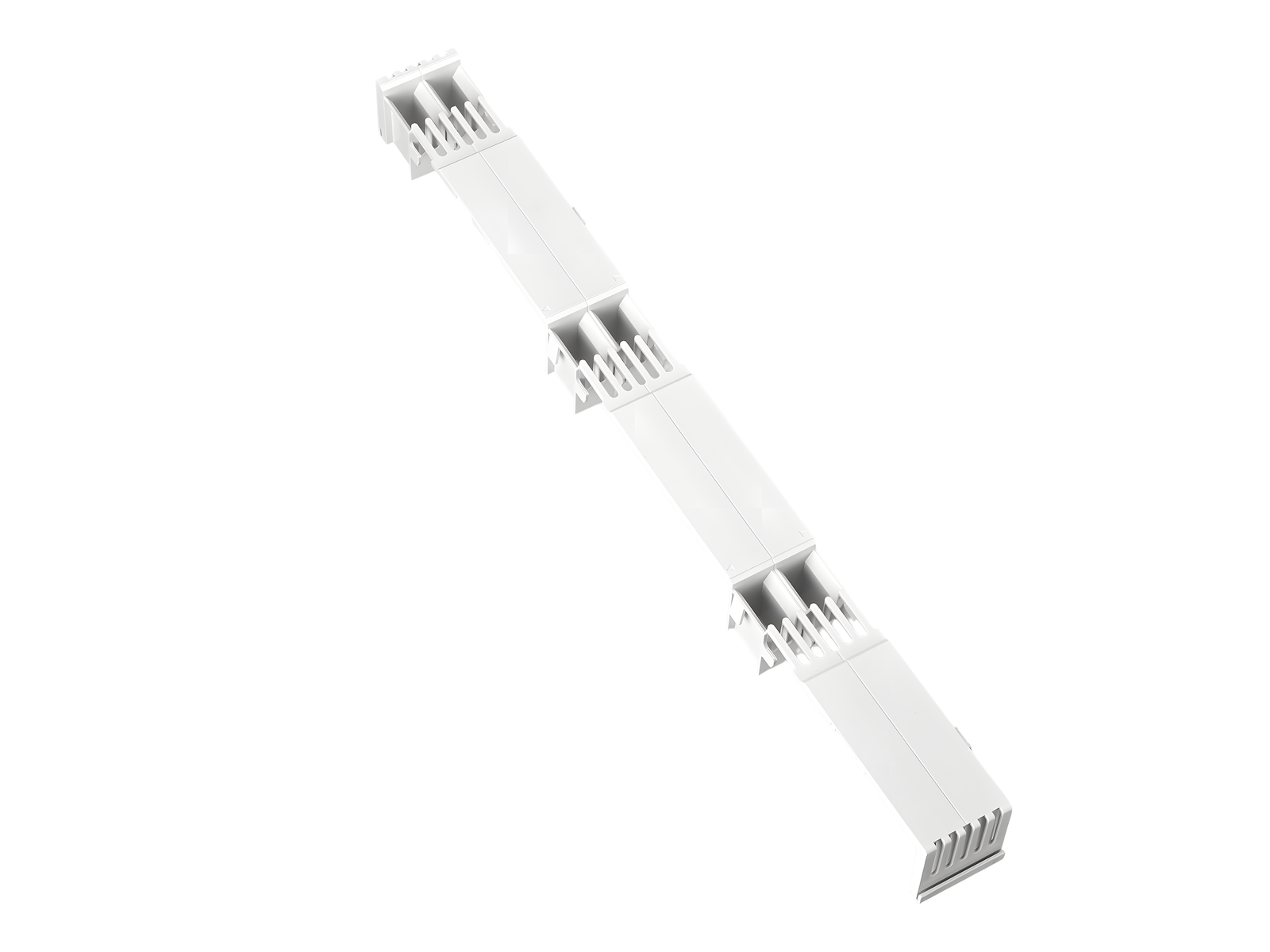

CrossLink®185Power
CrossLink® touch-safe protection cover module
50 mm wide
50 x 540
for busbars 30, 40, 60, 80, 100, 120 x 10
System
185Power
| Product group | 06 |
| Subgroup | 27 |
| pack size | 8 |
| EAN | 4021267014339 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: CL185-A50
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
the current carrying capacity of the busbar system is reduced by factor 0,94 when the shock protection module is used, |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Mechanical data | |
| W x H x D: | 50 x 556 x 49 |
| weight: | 16,0 kg/100 |
| for busbars: | 30, 40, 60, 80, 100, 120 x 10 |
| front degree of protection: | IP20 |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
| for UL feeder circuits >250V | |
