replacement fuse for MOTUS® (31567)

The picture may show a similar product.

Description

Part No.: 31567000

replacement fuse for MOTUS®

fuse 16 A for version 0.6 A and 2.4 A

10x38 gR

Product group 21
Subgroup 51
pack size 3
EAN 4021267315672
ECLASS 6.1 27142002
ECLASS 7.1 27142002
ETIM 4.0 EC002704
ETIM 5.0 EC002704

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system F

Technical data

size: 10x38
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system F
Electrical data IEC
Rated current (IEC): 16 A
rated voltage (IEC) AC: 500 V
operation class gR
Electrical data UL
rated current (UL): 16 A
rated voltage (UL) AC: 500 V
rated frequency (UL): 50 / 60 Hz
Mechanical data
W x H x D: 10 x 10 x 38
weight: 2,8 kg/100

Application notes

short-circuit withstandability: determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

36110000A
MOTUS®CrossBoard
hybrid motor starter, 3-pole
electronic unit direct and reversing starter 0.18 - 2.4 A / switch for resistive loads 0.18 - 2.4 A
More

36109000A
MOTUS®CrossBoard
hybrid motor starter, 3-pole
electronic unit direct and reversing starter 0.075 - 0.6 A / switch for resistive loads 0.075 - 0.6 A
More

36130000A
MOTUS®CrossBoard
hybrid motor starter, 3-pole
electronic unit direct and reversing starter 0.18 - 3.0 A / switch for resistive loads 0.18 - 3.0 A
with IO-Link interface
NEW
More

36123000A
MOTUS®Panel
hybrid motor starter, 3-pole
direct and reversing starter 0.18 - 3.0 A / switch for resistive loads 0.18 - 3.0 A
with IO-Link interface
NEW
More

36103000B
MOTUS®Panel
hybrid motor starter, 3-pole
direct and reversing starter 0.18 - 2.4 A / switch for resistive loads 0.18 - 2.4 A
More

36104000B
MOTUS®30Compact
hybrid motor starter, 3-pole
direct and reversing starter 0.18 - 2.4 A / switch for resistive loads 0.18 - 2.4 A
for busbars: 12 x 5, 10
More

36105000B
MOTUS®60Classic
hybrid motor starter, 3-pole
direct and reversing starter 0.18 - 2.4 A / switch for resistive loads 0.18 - 2.4 A
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

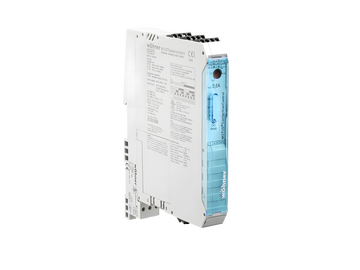

36100000B
MOTUS®Panel
hybrid motor starter, 3-pole
direct and reversing starter 0.075 - 0.6 A / switch for resistive loads 0.075 - 0.6 A
More

36101000B
MOTUS®30Compact
hybrid motor starter, 3-pole
direct and reversing starter 0.075 - 0.6 A / switch for resistive loads 0.075 - 0.6 A
for busbars: 12 x 5, 10
More

36102000B
MOTUS®60Classic
hybrid motor starter, 3-pole
direct and reversing starter 0.075 - 0.6 A / switch for resistive loads 0.075 - 0.6 A
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

36125000A
MOTUS®60Classic
hybrid motor starter, 3-pole
direct and reversing starter 0.18 - 3.0 A / switch for resistive loads 0.18 - 3.0 A
with IO-Link interface
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

36124000A
MOTUS®30Compact
hybrid motor starter, 3-pole
direct and reversing starter 0.18 - 3.0 A / switch for resistive loads 0.18 - 3.0 A
with IO-Link interface
for busbars: 12 x 5, 10
NEW
More
