Part No.: 03694000

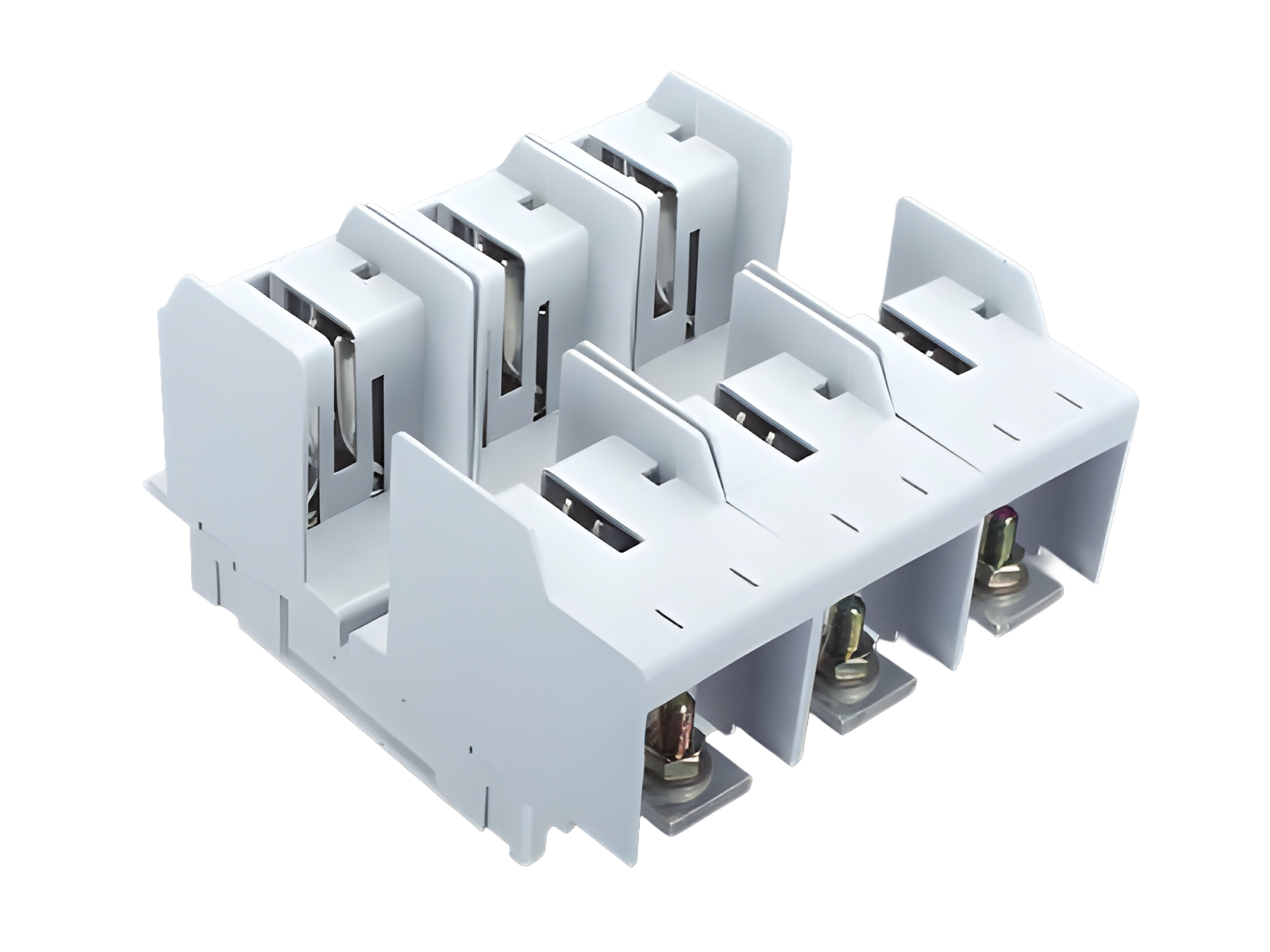

NH busbar mounted fuse base, 400 A
screw
size 2 / 3P
| Product group | 10 |
| Subgroup | 45 |
| pack size | 1 |
| EAN | 4021267036942 |
| ECLASS 6.1 | 27142106 |
| ECLASS 7.1 | 27142106 |
| ETIM 4.0 | EC000067 |
| ETIM 5.0 | EC000067 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
Approvals
DNV GL
| permitted power dissipation of the fuse-link: | 45 W |
| size: | NH 2 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| Rated current (IEC): | 400 A |
| rated voltage (IEC) AC: | 690 V |
| rated voltage (IEC) DC: | 440 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 35,8 W.
(The power dissipation at full load would be 56,0 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 800 V |
| max. permitted voltage (IEC) DC: | 800 V |
| for fuse links IEC 60269-2 / DIN VDE 0636-201 size 2 up to 45W power dissipation |
| Mechanical data | |
| W x H x D: | 190 x 206 x 121 |
| weight: | 286,1 kg/100 |
| poles: | 3-pole |
Type of fastening: hook clips,
connection screw:
screw connection M10, 18 - 22Nm torque
| Terminal points | |
| Not suitable for aluminium cables ! |
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 45 W |
