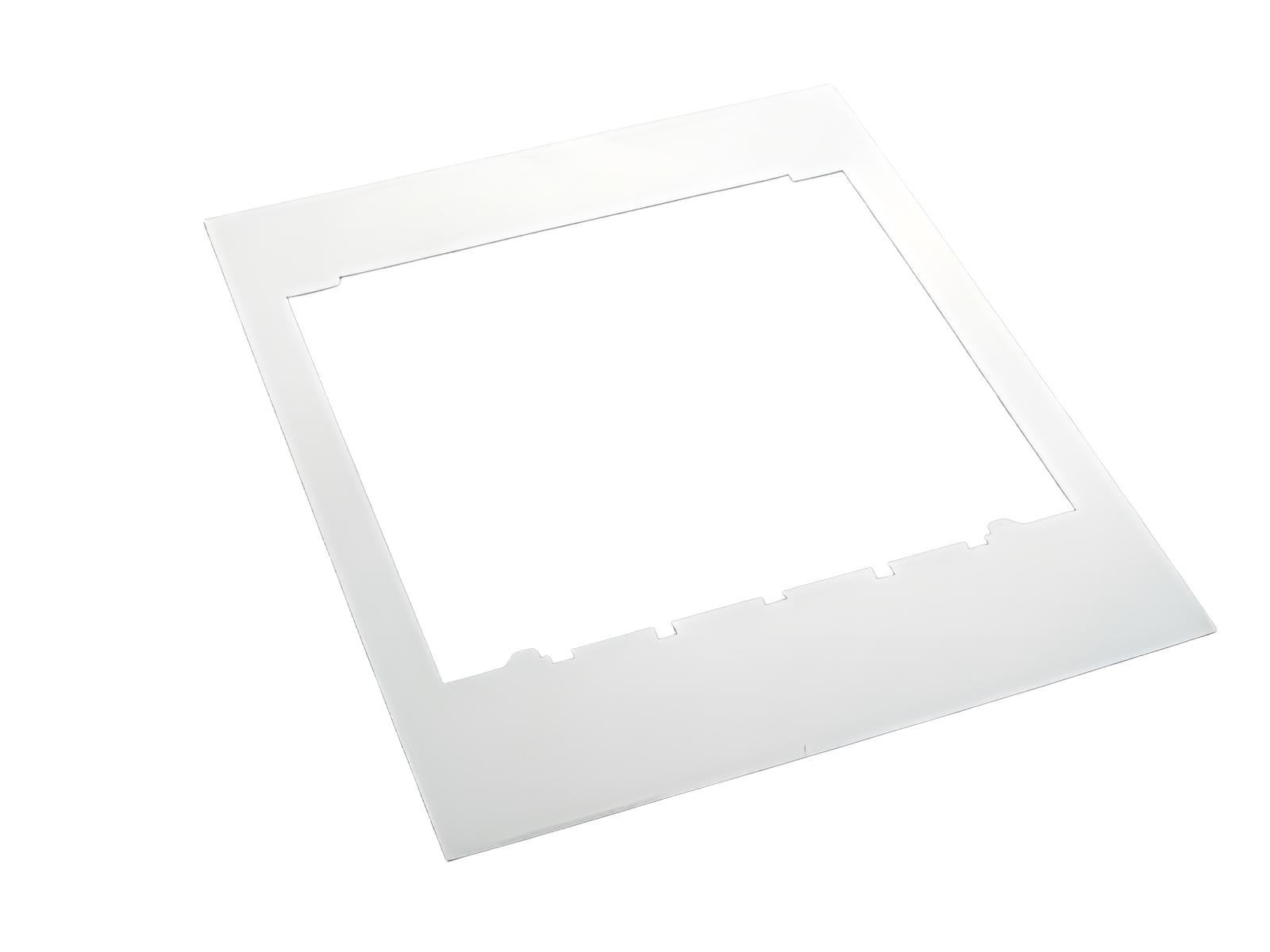

trim frame, single (33154)

The picture may show a similar product.

Description

Part No.: 33154000

trim frame, single

290 x 330

size 3

Product group 09
Subgroup 51
pack size 1
EAN 4021267331542
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Mechanical data
W x H x D: 290 x 330 x 2
weight: 13,2 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Downloads

Usage

33603000
QUADRON®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33203000
QUADRON®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
More

33151000
QUADRON®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
with electromechanical fuse monitoring
More

33162000
QUADRON®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More

33332000
QUADRON®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
with electronic fuse monitoring
More

33327000
QUADRON®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10  and section busbars
More
