Part No.: 01162000

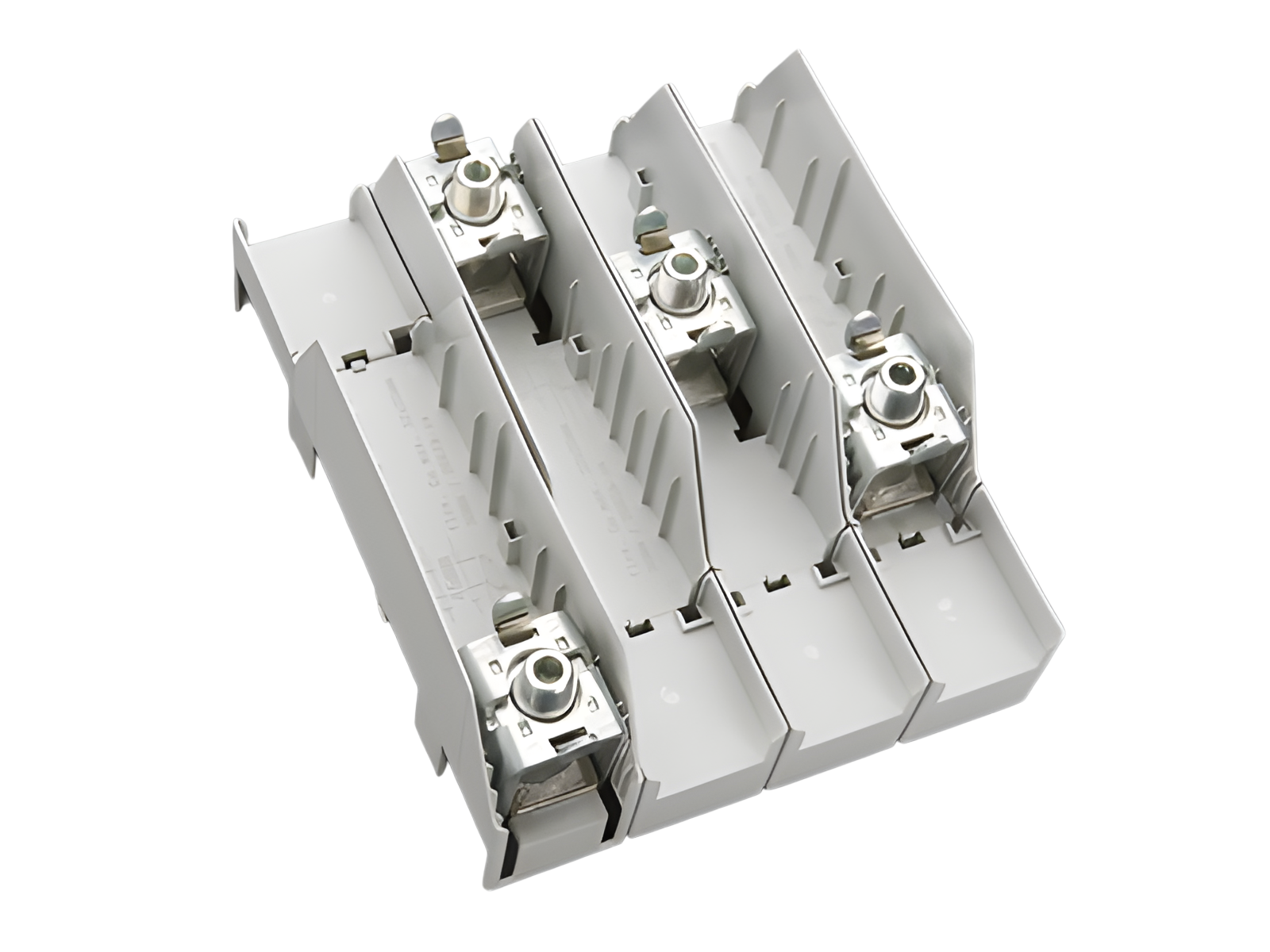

CRITO®60Classic
connection set, 4-pole, without cover
lam. Cu. 20 - 32 x 3 - 15
for busbars 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 07 |
| Subgroup | 51 |
| pack size | 1 |
| EAN | 4021267011628 |
| ECLASS 6.1 | 27141146 |
| ECLASS 7.1 | 27141146 |
| ETIM 4.0 | EC000001 |
| ETIM 5.0 | EC000001 |
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Approvals
DNV GL
CCC approval: no certification required
| Details IEC | |
| Standards | |
|
IEC 61439-1:2020 IEC 60999-1:1999 IEC 60999-2:2003 |
| Electrical data IEC | |
| rated current (IEC): | 550 A |
| rated voltage (IEC) AC: | 800 V |
| rated peak withstand current Ipk max.: | 50.3 kA |
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. permitted voltage (IEC) AC: | 1000 V |
| max. permitted voltage (IEC) DC: | 1500 V |
| current capacity (IEC) max.: | 800 A |
| Electrical data UL | |
| rated current (UL): | 800 A |
| Mechanical data | |
| W x H x D: | 204 x 244 x 115 |
| weight: | 180,0 kg/100 |
| poles: | 4-polig |
| for busbars: | 20, 25, 30 x 5, 10 and section busbars |
| Terminal points | |
| Md min.: | 24,0 Nm |
| Md max.: | 36,0 Nm |
| Not suitable for aluminium cables ! | |
|
lam. Cu from 3 x 20 x 1 to 10 x 32 x 1 |
|
| Not suitable for aluminium cables ! | |
| The insulation performance of the article depends on the installation conditions. | |
