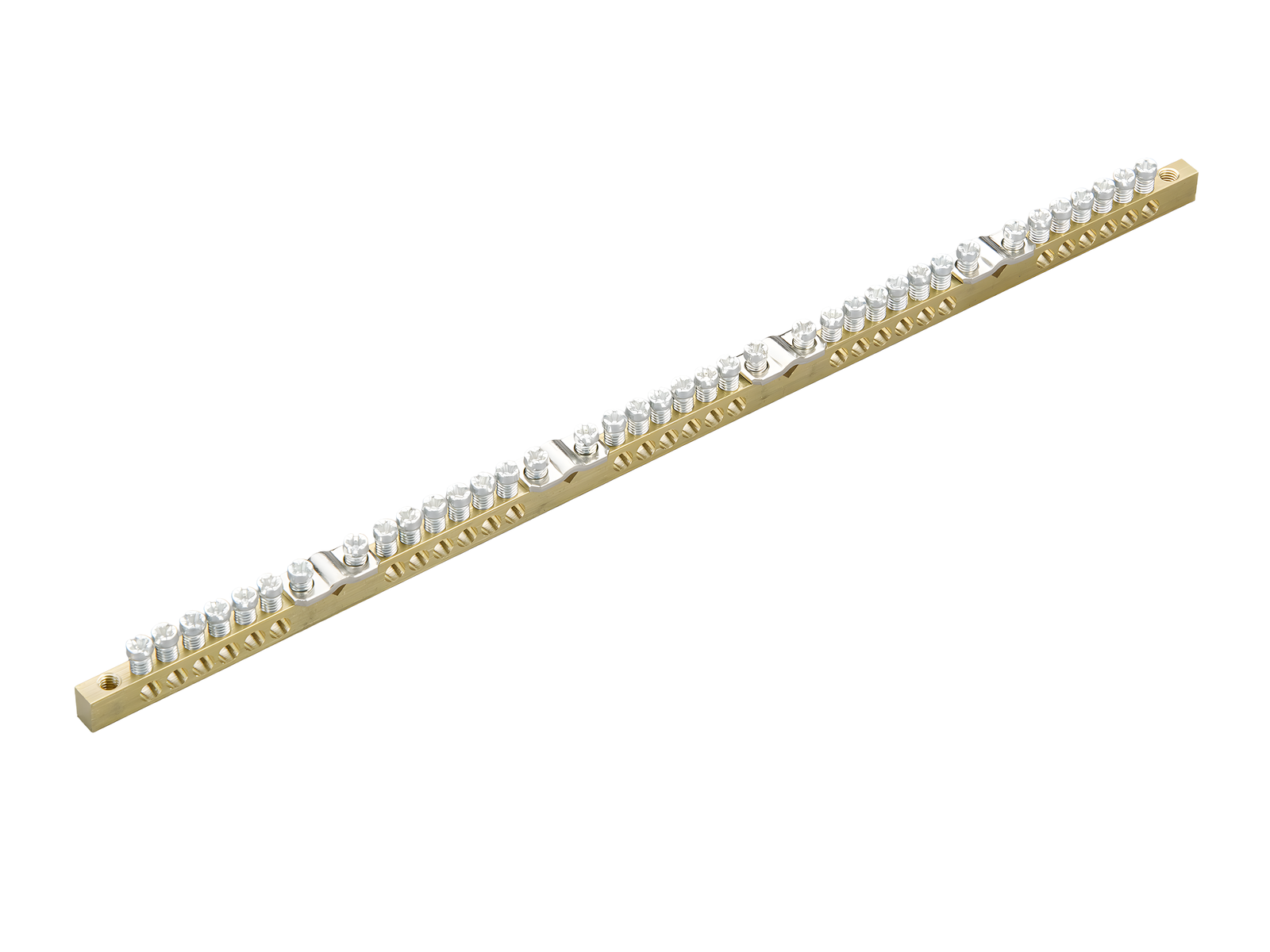

earth/neutral busbar 63A (01930)

The picture may show a similar product.

Description

Part No.: 01930000

earth/neutral busbar 63A

30 terminal points 10mm², screw-on, 311.5 mm long

4 terminal clamps 25 mm²

Product group 06
Subgroup 33
pack size 50
EAN 4021267019303
ECLASS 6.1 27141139
ECLASS 7.1 27141139
ETIM 4.0 EC000485
ETIM 5.0 EC000485

Approvals

Standards

IEC 60664-1:2007

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60664-1:2007
Mechanical data
W x H x D: 312 x 9 x 6.5
weight: 16,7 kg/100
Terminal points


Zugang: 10 bis 25 mm² (10 mm² durch Umdrehen der Anschlussschelle)
Abgang: 4 bis 10 mm²

Application notes

Reference

max. Drehmoment = 2Nm

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| CAD symbol 2D DXF

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

08825000
rail mounting
for mounting rail 35 x 7.5
for PE/N bars 01126 - 01129 and 01926 - 01932
More

01120000
terminal support for PE/N-bar
screw-on
More
