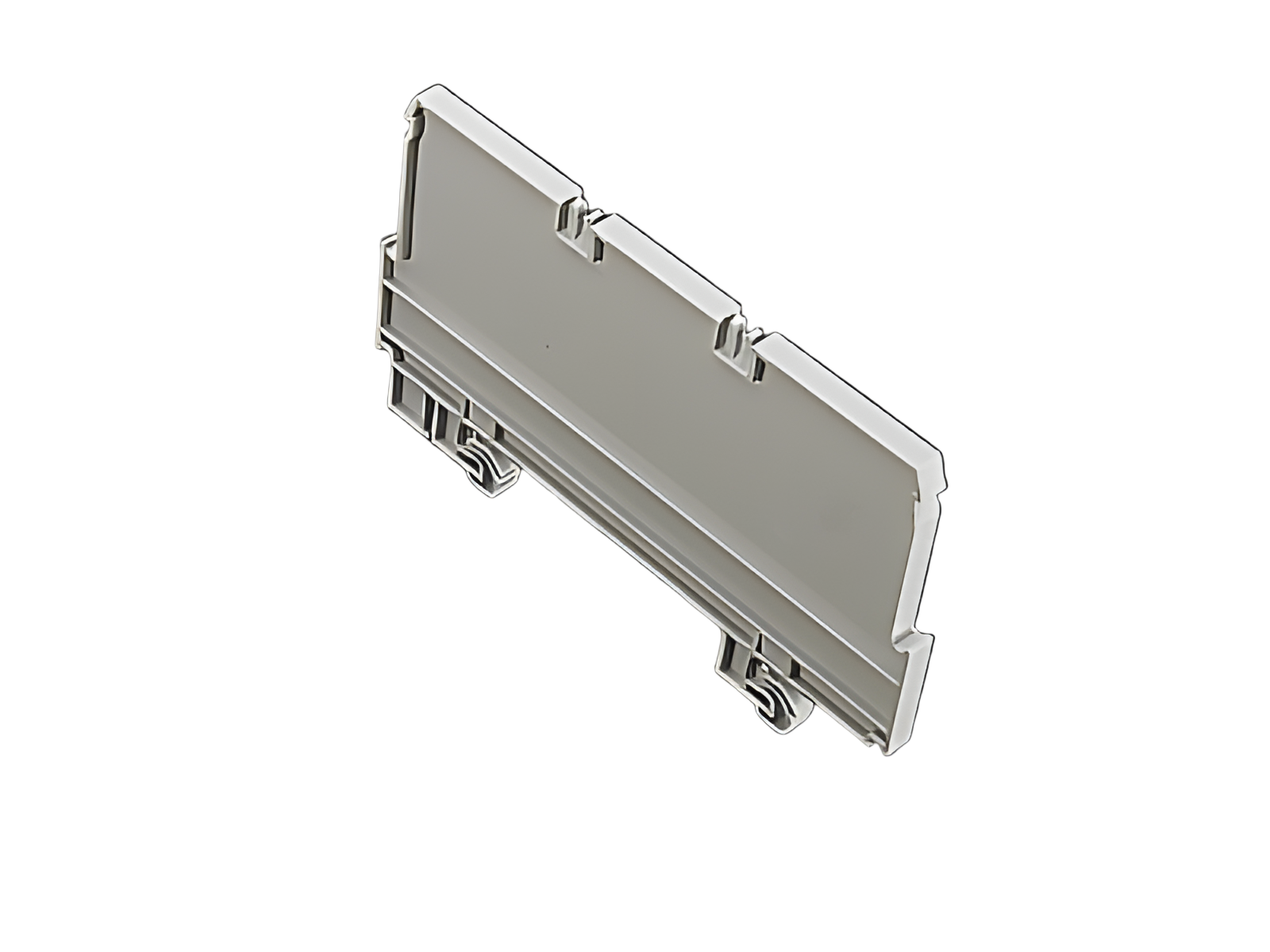

The picture may show a similar product.
Part No.: 01320 000
Mount for cover section
depth 107 mm, for 01025, 01236, 01237, 01238
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 06 |
| Subgroup | 27 |
| pack size | 8 |
| EAN | 4021267013202 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
type number: C026-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Mechanical data | |
| W x H x D: | 9 x 196 x 107 |
| weight: | 12,0 kg/100 |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
|
not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
|
| for UL feeder circuits >250V |
