The picture may show a similar product.

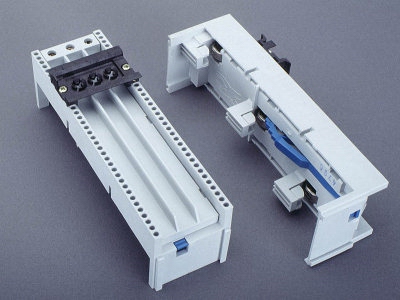

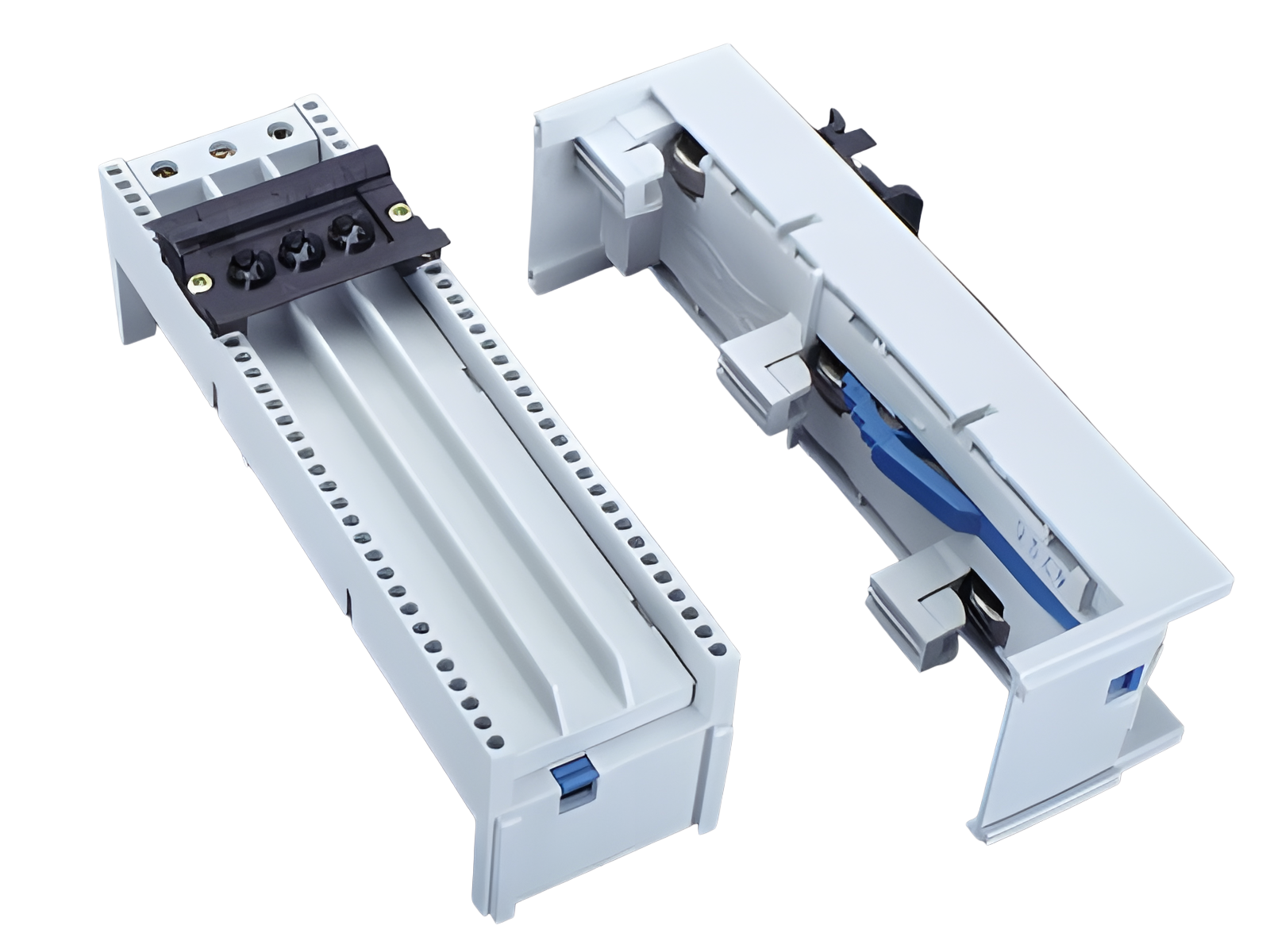

Part No.: 32153 000
adapter 80 A, 1 mounting rail
with terminals 16 mm² (top)
54 x 182
System
60Classic
Advantages of the product
Conductor ends ultrasonically sealed.
Click mechanism when pushing onto the busbar.
| Product group | 05 |
| Subgroup | 27 |
| pack size | 4 |
| EAN | 4021267321536 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL , DNV GL
type number: 6080
UL file: E123577, UL category (for USA): NMTR2 https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR8 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 80 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
| Details UL | |
| Standards | |
| UL 508 |
| Electrical data UL | |
| rated current (UL): | 80 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 10 kA |
| 3 cycles (without OPD) @ 600 V AC |
| Mechanical data | |
| W x H x D: | 54 x 182 x 60 |
| weight: | 23,0 kg/100 |
| poles: | 3-pole |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|
For safe mechanical and electrical connection of all commercially available switchgear to the busbar system, mounting rails can be offset in the 5mm grid. |
|
32901
000
mounting rail, plastic
EN 60715, 54 mm wide
35 x 54 x 8.5
