The picture may show a similar product.
Part No.: 01726000

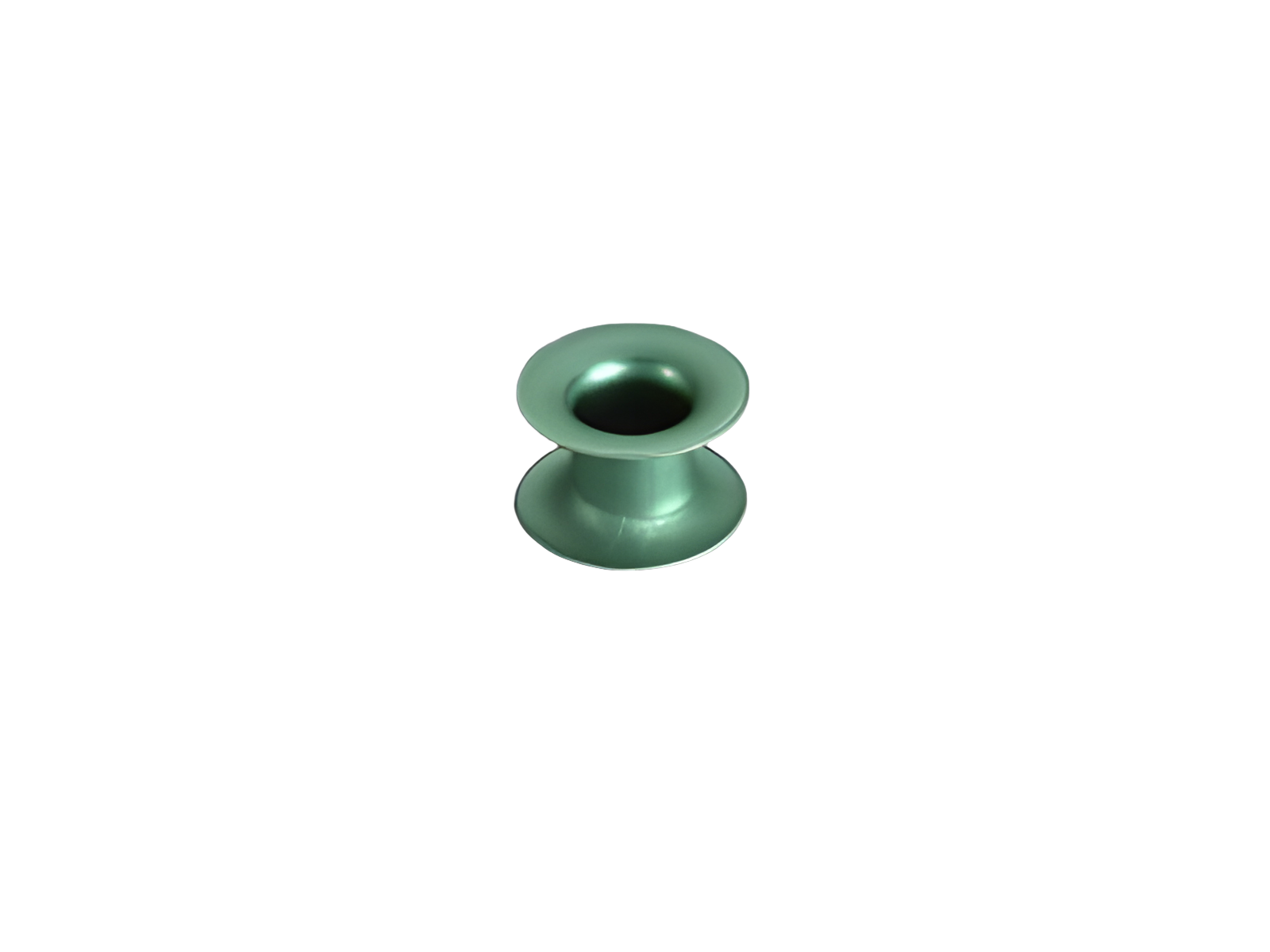

special D01 gauge ring 6 A
green
E 18
| Product group | 22 |
| Subgroup | 03 |
| pack size | 50 |
| EAN | 4021267017262 |
| ECLASS 6.1 | 27142111 |
| ECLASS 7.1 | 27142111 |
| ETIM 4.0 | EC000278 |
| ETIM 5.0 | EC000278 |
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
| size: | D02 / E 18 |
| Details IEC | |
| Standards | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
| Electrical data IEC | |
| rated current (IEC): | 6 A |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Mechanical data | |
| weight: | 0,1 kg/100 |
