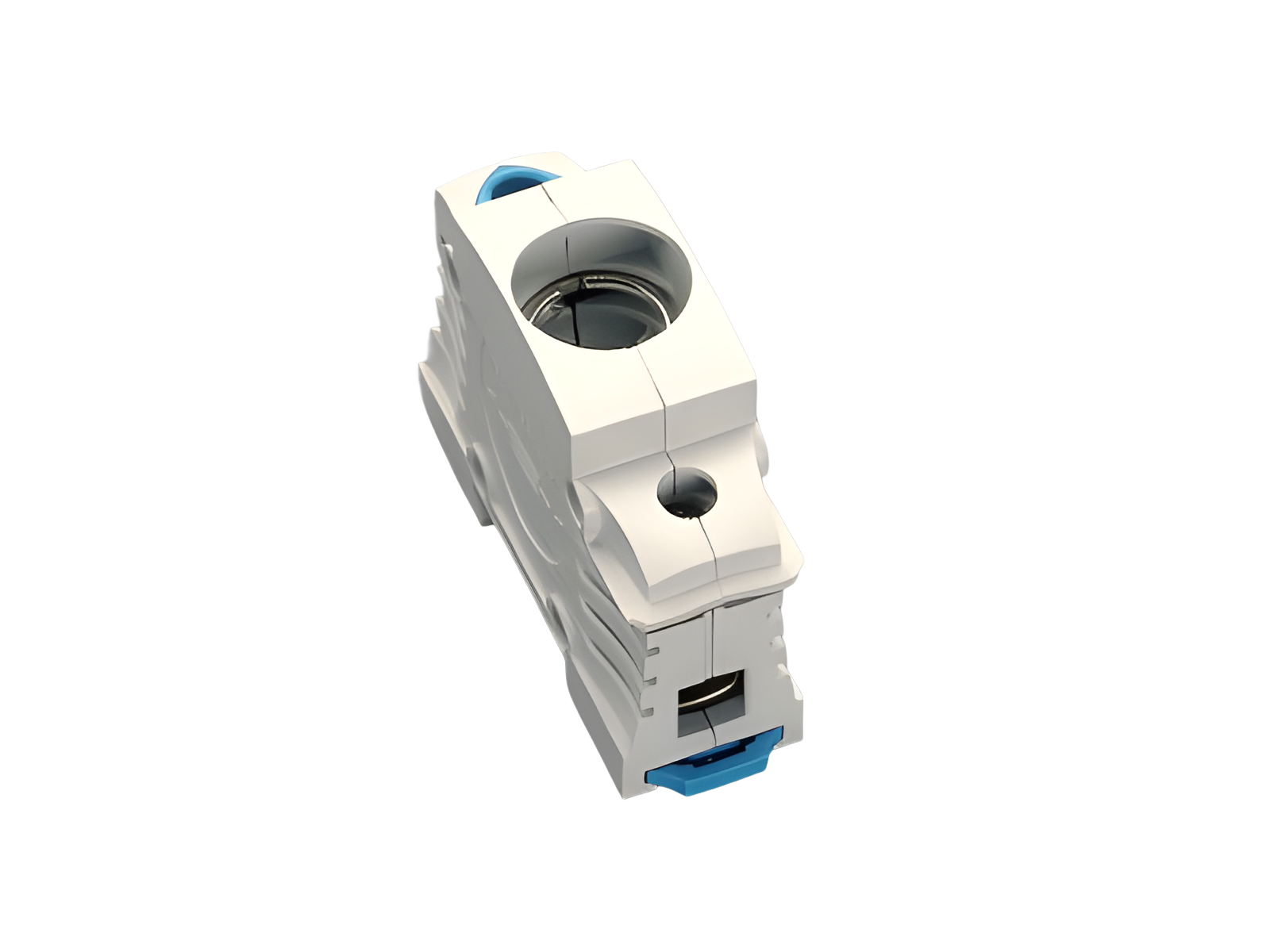

D0 fuse base, panel-mounting (31291)

The picture may show a similar product.

Description

Part No.: 31291000

TRITON®Panel

D0 fuse base, panel-mounting

E 18 / 63 A / 1P

touch protected acc. to DGUV V3

for mounting rail

System

Panel

Advantages of the product

large clamping range, holder for label

Product group 02
Subgroup 06
pack size 9
EAN 4021267312916
ECLASS 6.1 27142120
ECLASS 7.1 27142120
ETIM 4.0 EC001644
ETIM 5.0 EC001644

Approvals

Standards

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019

Approvals

CCC , DNV GL

type number: 1813

Technical data

for fuse links size: D0
fuse links acc. to standard: IEC / HD 60269-3
permitted power dissipation of the fuse-link: 5,5 W
Details IEC
Standards
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
Electrical data IEC
rated current (IEC): 63 A
rated voltage (IEC) AC: 400 V
rated voltage (IEC) DC: 250 V
rated surge voltage Uimp : 6 kV
approved wth fuse links of operation class: gG
short-circuit strength when protected by fuses: 50 kA

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 2,6 W.

(The power dissipation at full load would be 4,0 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 440 V
max. permitted voltage (IEC) DC: 262 V

The feed direction marked on the product must be strictly observed.
Mechanical data
W x H x D: 27 x 80 x 55
weight: 13,9 kg/100
poles: 1-pole
Mounting: for mounting rail
Terminal points
min. cross-section: 1,5 mm²
max. cross-section: 35 mm²
Not suitable for aluminium cables !


box terminal :
1,5 - 35 mm² flexible cables, directly or with wire-end ferrule,
1,5 - 10 mm² solid round cables
Md 4,0 Nm

(flexible cables of maximum cross-section may not fit when using wire-end ferrule)

Application notes

Not suitable for aluminium cables !
The insulation performance of the article depends on the installation conditions.
permitted power dissipation of the fuse-link: 5,5 W

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Accessories

31014000A
comb-type busbar, 1-pole, bridge type, pitch 27 mm
80 A, 1 m long
16 mm²
More

31024000A
comb type busbar, 1-pole, fork type, pitch 27 mm
80 A, 1 m long
16 mm²
More

31028000A
connection terminal, side connection
6 - 50 mm²
for: 31014, 31024, 31309, 31311
More

31086000
label support
for Triton, snap-on
More

Similar products

31293000
TRITON®Panel
D0 fuse base, panel-mounting
E 18 / 63 A / 3P
touch protected acc. to DGUV V3
More
