for UL feeder circuits >250V
The picture may show a similar product.
Part No.: 32074 000B

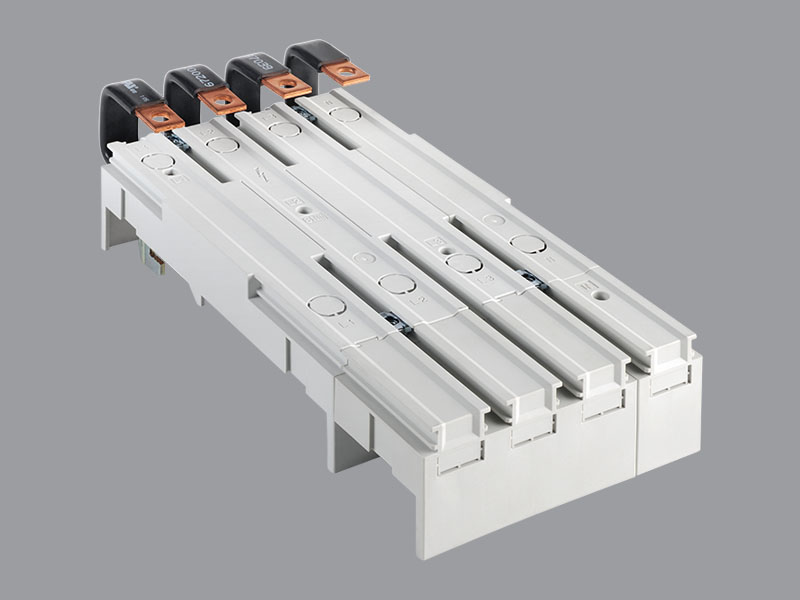

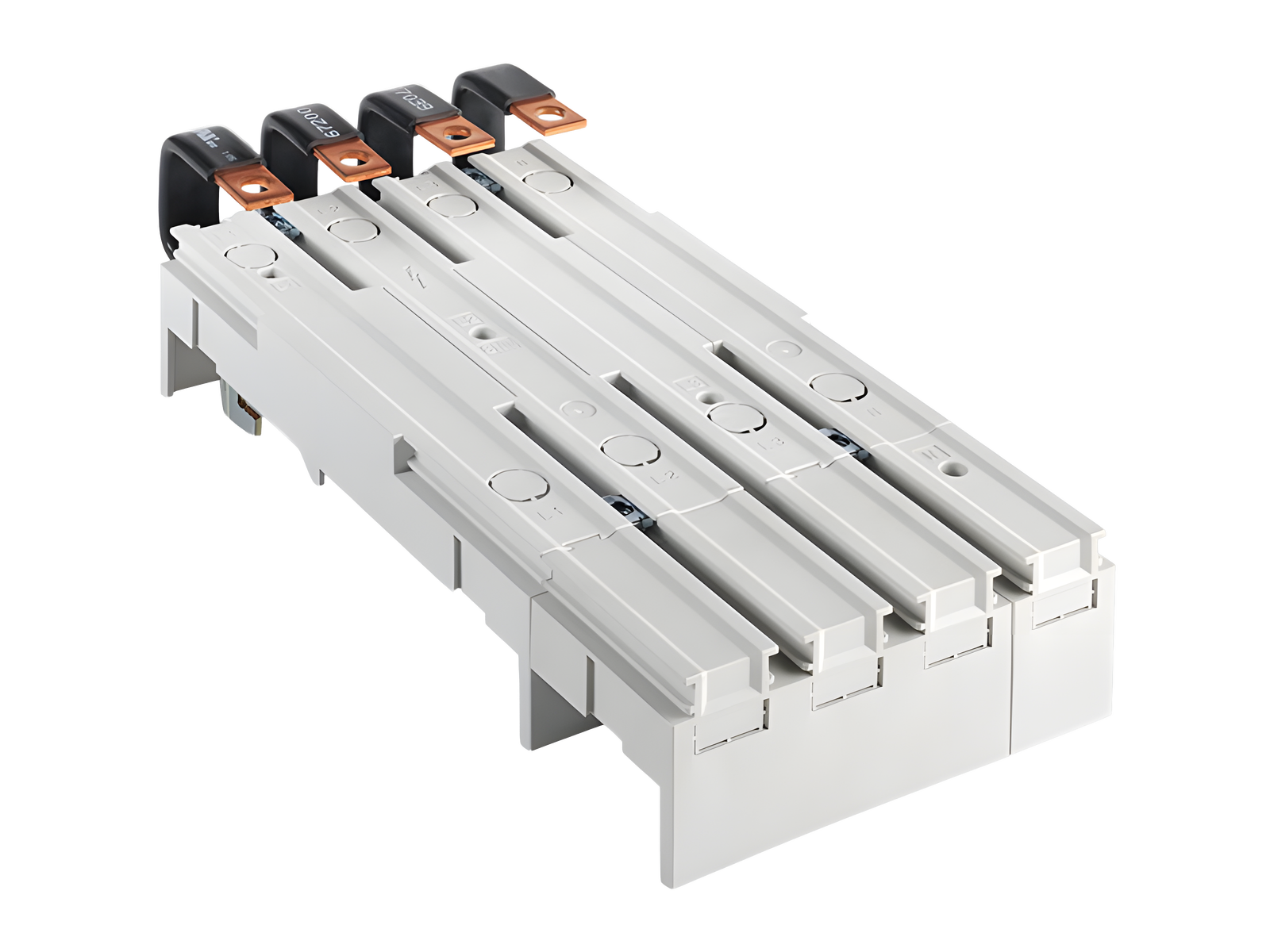

EQUES®60Classic
busbar adapter 250 A, 4-pole
with laminated copper (top)
140 x 260
phase distance 35 mm
N on right side
connection to the system top
for ABB T3, T4, XT3, XT4 / Eaton NZM2 / Schneider Electric NSX 250 / Siemens 3VA12, 3VA20, 3VA21, 3VA22
for busbars 12, 15, 20, 25, 30 x 5, 10 and section busbars
System
60Classic
| Product group | 05 |
| Subgroup | 36 |
| pack size | 1 |
| EAN | 4021267320744 |
| ETIM 5.0 | EC001531 |
| ETIM 8.0 | EC001531 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| rated current (IEC): | 250 A |
| rated voltage (IEC) AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 15,9 W.
(The power dissipation at full load would be 24,8 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| min. permitted operation temperature | -40 |
| Mechanical data | |
| W x H x D: | 140 x 260 x 35 |
| weight: | 115,5 kg/100 |
| poles: | 3-pole+N |
| for busbars: | 12, 15, 20, 25, 30 x 5, 10 and section busbars |
| Material properties | |
| halogen-free: | Yes |
| There must be a clearance of at least 10 mm above the article to remove it from the busbar system. | |
|
the short-circuit capacity of the combination of adapter and MCCB depends on the MCCB |
|
