for UL feeder circuits >250V

connection module (01443)

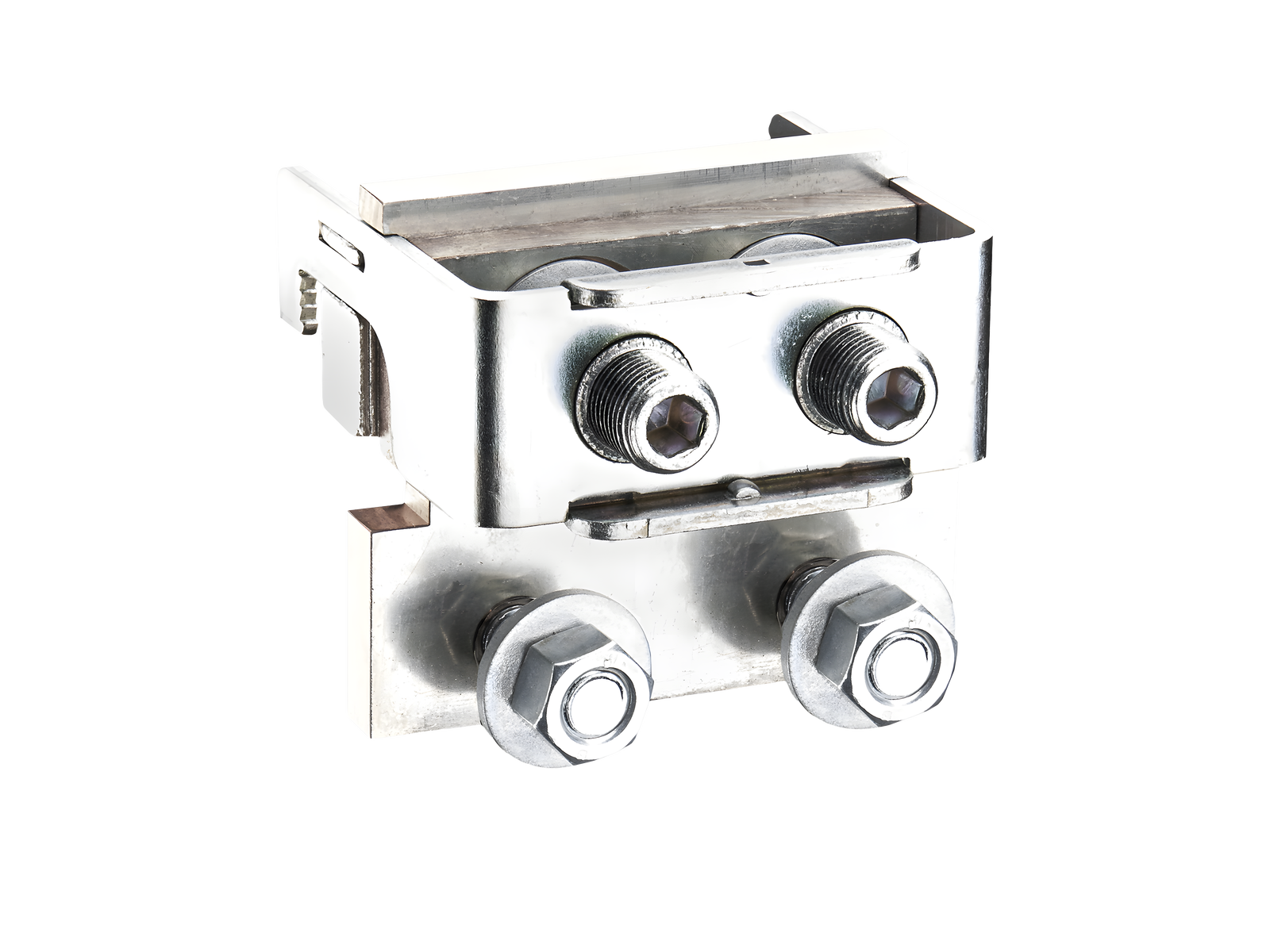

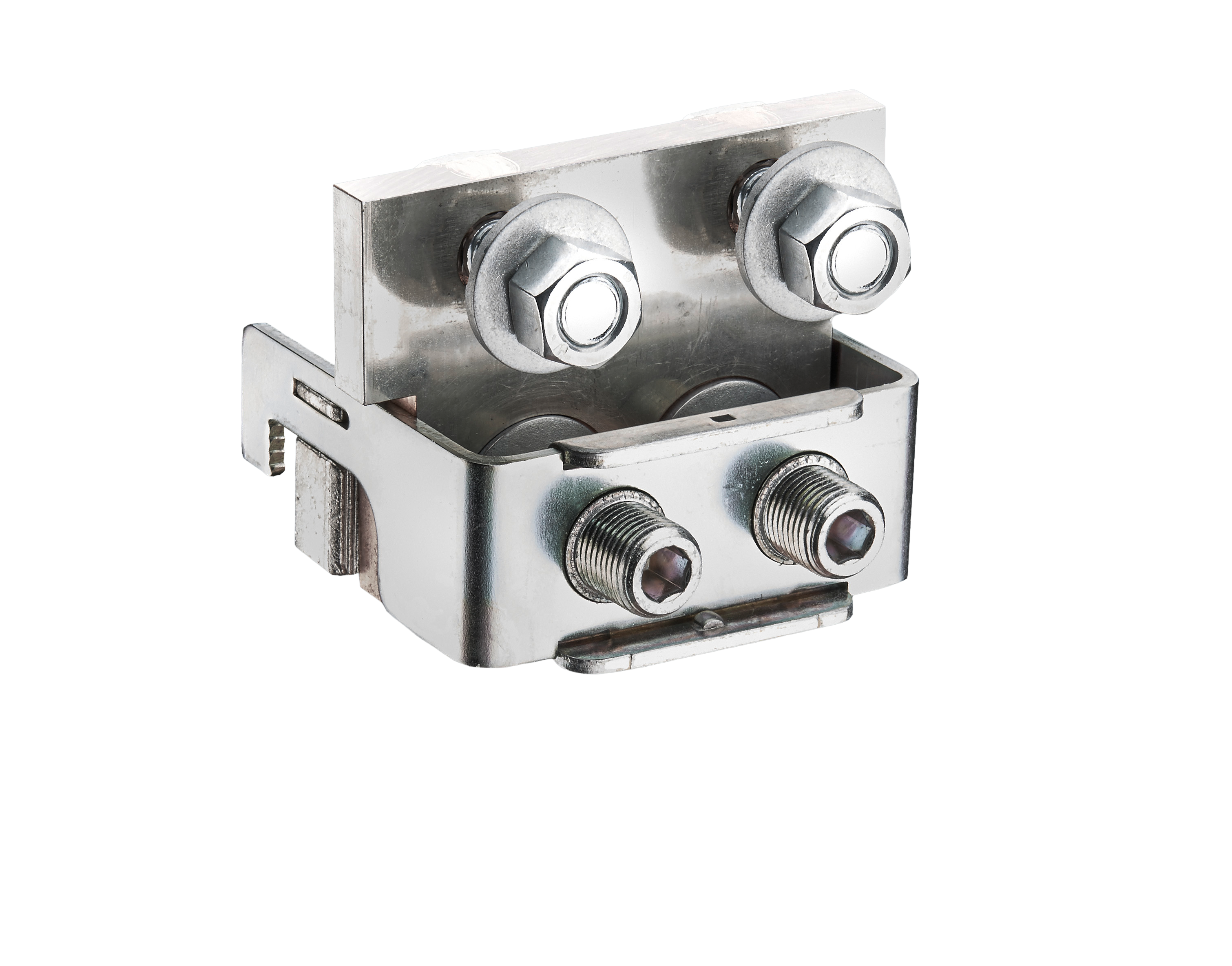

The picture may show a similar product.

Description

Part No.: 01443 000A

CRITO®185Power

connection module

for 4 cable lugs M12

without cover

connection top or bottom

for busbars 30, 40, 60, 80, 100, 120 x 10

System

185Power

Product group 07
Subgroup 54
pack size 1
EAN 4021267014438
ECLASS 6.1 27141146
ECLASS 7.1 27141146
ETIM 4.0 EC000001
ETIM 5.0 EC000001

Approvals

Standards

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

UL 508

Approvals

UL

for UL feeder circuits >250V

type number: CR185-A2x12

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Electrical data IEC
rated current (IEC): 1600 A
rated voltage (IEC) AC: 690 V
rated peak withstand current  Ipk max.: 83.7 kA
rated short-time withstand current Icw (1.0 s) max.: 40.2 kA
Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 1000 V
max. permitted voltage (IEC) DC: 1500 V
Details UL
Standards
UL 508
for UL feeder circuits >250V
Electrical data UL
rated current (UL): 1520 A
rated voltage (UL) AC: 1000 V
rated frequency (UL): 50 / 60 Hz
SCCR unprotected max.: 50 kA
3 cycles (without OPD) @ 1000 V AC
Mechanical data
W x H x D: 98 x 88 x 95
weight: 165,0 kg/100
poles: 1-pole
for busbars: 30, 40, 60, 80, 100, 120 x 10

for 2 to 4 cable lugs M12 (max. 48 wide)

Terminal points
screw connection
M12

Application notes

The insulation performance of the article depends on the installation conditions.
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)
