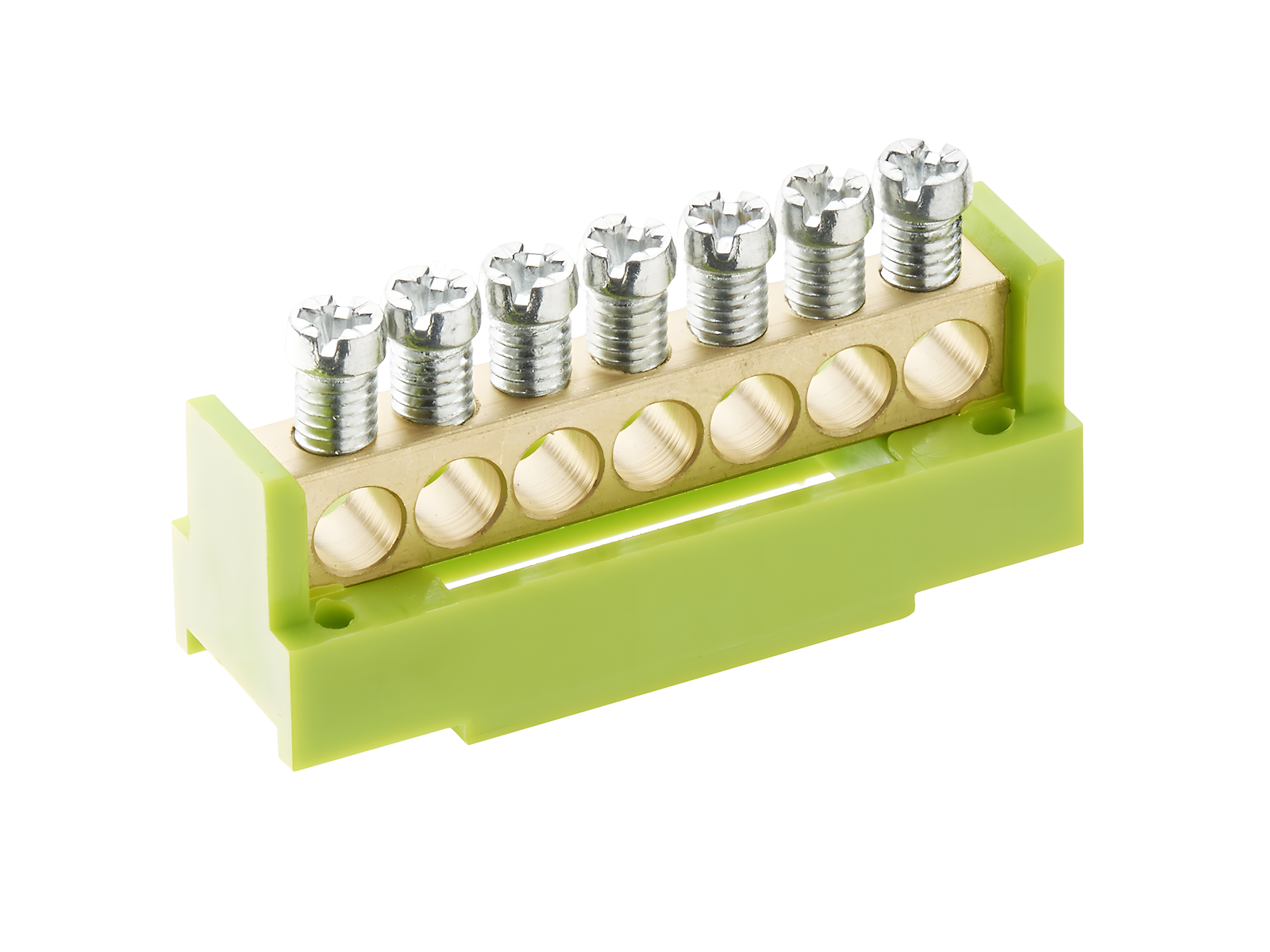

PE-terminal, green/yellow (01144)

The picture may show a similar product.

Description

Part No.: 01144000

PE-terminal, green/yellow

for bar 12 x 2

Product group 06
Subgroup 33
pack size 50
EAN 4021267011444
ECLASS 6.1 27141139
ECLASS 7.1 27141139
ETIM 4.0 EC000485
ETIM 5.0 EC000485

Approvals

Standards

IEC 60664-1:2007

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 60664-1:2007
Electrical data IEC
rated current (IEC): 63 A
rated voltage (IEC) AC: 400 V
rated isolation voltage Ui AC: 500 V
rated surge voltage Uimp : 6 kV

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

Mechanical data
W x H x D: 15 x 55 x 20
weight: 2,7 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
