for UL feeder circuits >250V

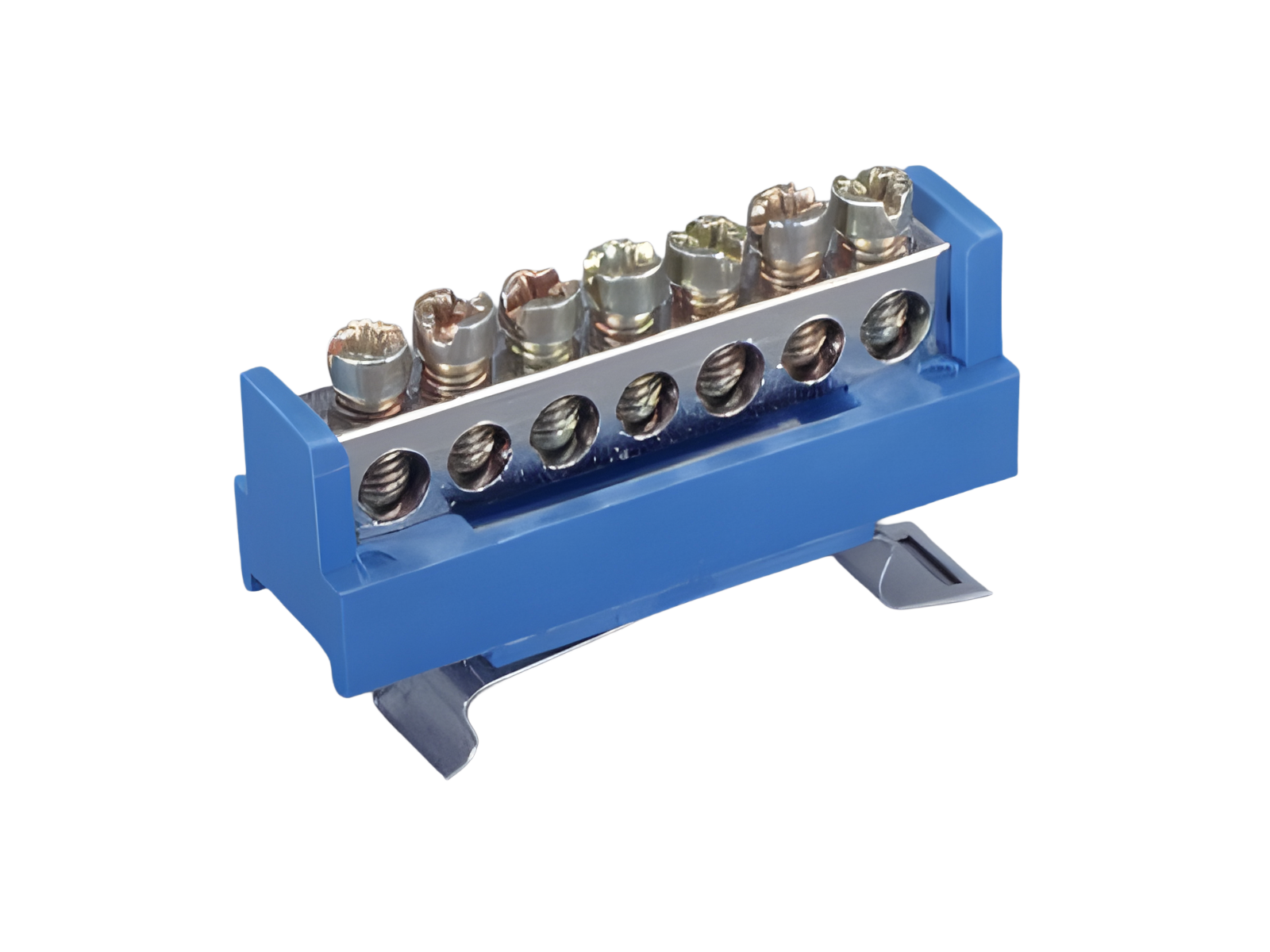

The picture may show a similar product.
Part No.: 01257000
neutral terminal, blue
snap-on
| Product group | 06 |
| Subgroup | 33 |
| pack size | 50 |
| EAN | 4021267012571 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27370390 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Standards
IEC 61439-1:2020
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| Rated current (IEC): | 63 A |
| rated voltage (IEC) AC: | 400 V |
| rated isolation voltage Ui AC: | 500 V |
| rated surge voltage Uimp : | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Mechanical data | |
| W x H x D: | 15 x 55 x 20 |
| weight: | 2,9 kg/100 |
