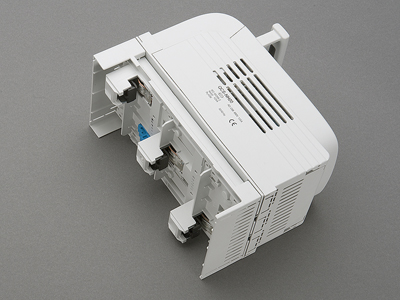

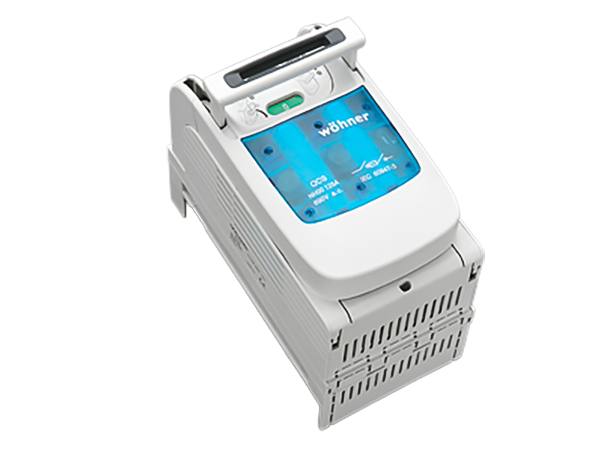

Obrázek může zobrazovat podobný produkt.
Part No.: 33501 000
QUADRON 60Classic Speed
odpínač s pojistkami, 3-pólový
rámová svorka, připojení shora
velikost 00
double-breaking
operator independent switching (snap-action mechanism)
pro přípojnici 12, 15, 20, 25, 30 x 5, 10 a profilové přípojnice
System
60Classic
Advantages of the product
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Can be locked in neutral position with up to 3 Upadlocks
FLAG indicator shows the switch setting
Fuses can be changed safely and without tools thanks to double-breaking main contacts
Additional visible separating section by removing the cover incl. fuses
Can be used as mains disconnector as per IEC / EN 60204-1 (main switch).
Mains switch only in combination with AC-23A/B
CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat rails
Compact dimensions (106mm wide)
| Produktová skupina | 15 |
| Podskupina | 20 |
| velikost balení | 1 |
| EAN | 4021267335014 |
| ECLASS 14.0 | 27371401 |
| ETIM 5.0 | EC001040 |
| ETIM 8.0 | EC001040 |
| ETIM 10.0 | EC001040 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Schválení dle norem
IEC (CB) , VDE , CCC , DNV GL
typové číslo: QCS-NH00
EAC Type: NH
CCC certificate: 2010010302392782
| pro velikost pojistek: | NH 000, NH 00 |
| pojistková vložka podle na standardu: | IEC / HD 60269-2 |
| povolené rozptylování energie pojistkové vložky: | 10 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 125 A |
| jmenovité napětí (IEC) AC: | 690 V |
| jmenovité izolační napětí Ui AC: | 800 V |
| jmenovité přepětí Uimp : | 8 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (690V / 125A) AC-23A (500V / 125A) AC-22A (690V / 125A)
|
| kond. zkratový proud s pojistkami (AC): | 50 kA / 690 V (125A) |
| schváleno s pojistkovými vložkami dané třídy: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 17,2 W.
(The power dissipation at full load would be 26,8 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| further utilisation category DC (IEC 60947-3): | DC specifications: 2 current paths (L1,L3) in series DC-22B (220V/125A) |
| max. permitted operation temperature | 55°C |
| Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
| When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed. |
| Mechanické údaje | |
| Š x V x H: | 106 x 200 x 128 |
| hmotnost: | 219,0 kg/100 |
| póly: | 3-pólový |
| pro přípojnici: | 12, 15, 20, 25, 30 x 5, 10 a profilové přípojnice |
| Terminal points | |
| cage clamp connection | |
| screw drive: | S4 |
| wire stripping: | 20 mm |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 70 mm² |
| re: | 1.5 - 10 mm² |
| f: | 1.5 - 70 mm² |
| f + AE: | 1.5 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 5,0 Nm |
| Md max.: | 6,0 Nm |
| Not suitable for aluminium cables ! | |
| Terminal space: | 13x13 |
| lam. Cu width: | 9 - 13 mm |
| lam. Cu thickness: | 1 - 10 mm |
| Vlastnosti materiálu | |
| halogen-free: | No |
| Not suitable for aluminium cables ! | |
| povolené rozptylování energie pojistkové vložky: | 10 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
