Obrázek může zobrazovat podobný produkt.
Part No.: 33416 000

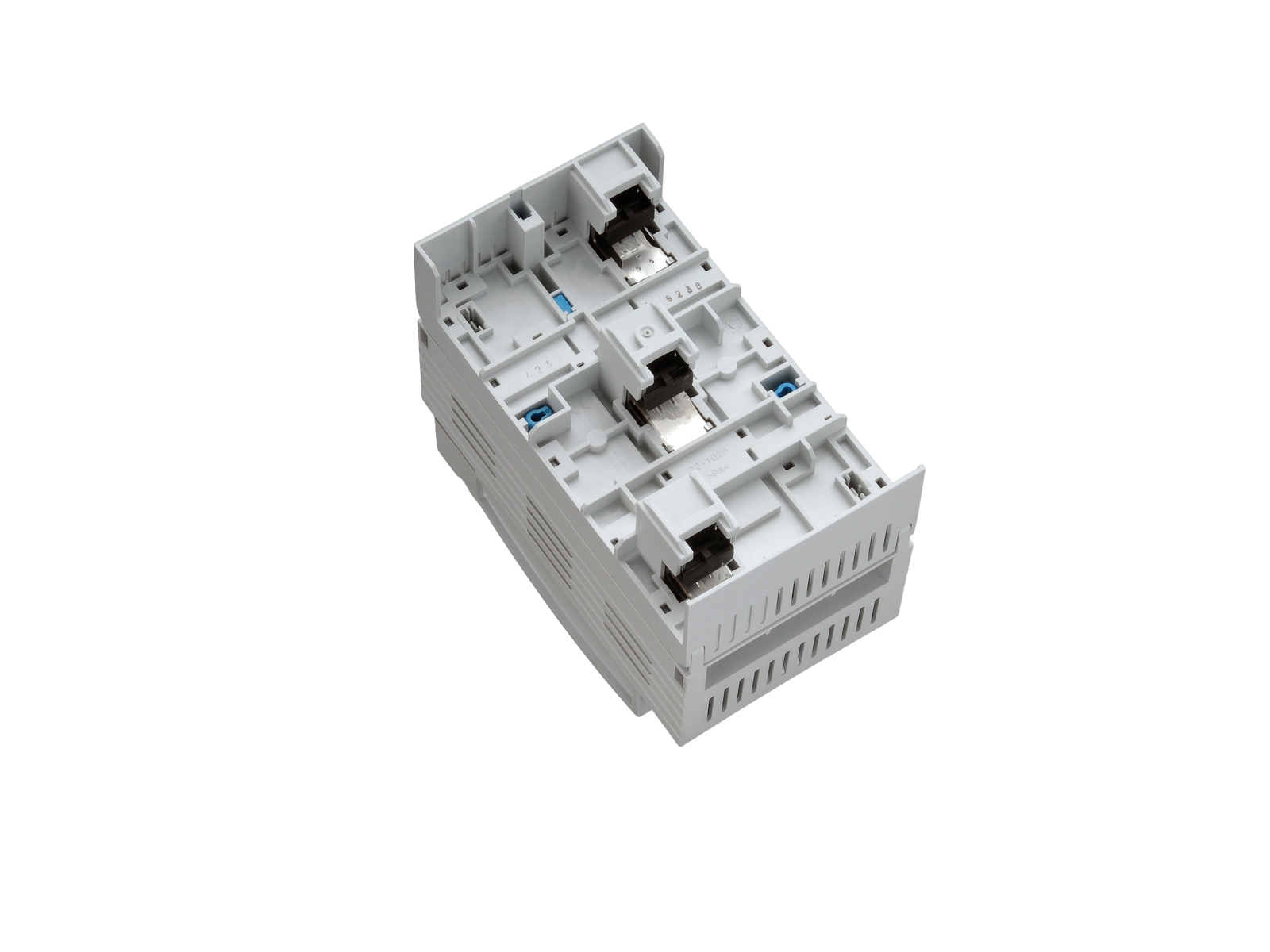

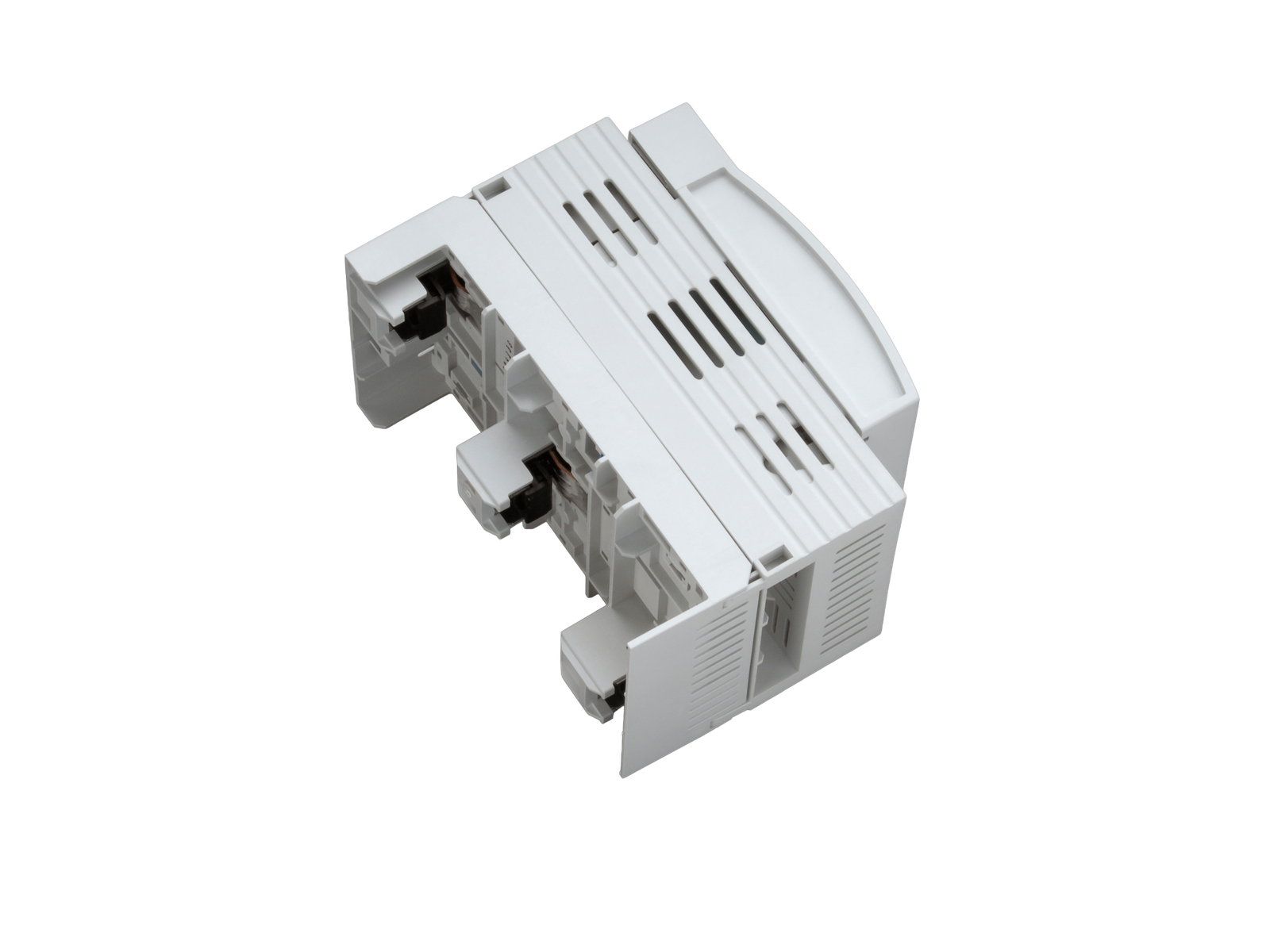

QUADRON 30Compact
NH pojistkové odpínače velikost 000, 125 A, montáž na sběrnici, připojení shora / zdola
s rámovou svorkou
připojení shora nebo zdola
pro přípojnici 12 x 5, 10
System
30Compact 3P
Advantages of the product
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected
Simple and safe clicking into place and making contact
Safe connection through shock protection split into two
| Produktová skupina | 09 |
| Podskupina | 22 |
| velikost balení | 1 |
| EAN | 4021267334161 |
| ECLASS 14.0 | 27142108 |
| ETIM 5.0 | EC001040 |
| ETIM 8.0 | EC001040 |
| ETIM 10.0 | EC001040 |
Standardy
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Schválení dle norem
IEC (CB) , UL , VDE , CCC , DNV GL
for UL feeder circuits >250V
typové číslo: QCB-NH000
EAC Type: NH
| pro velikost pojistek: | NH 000 |
| pojistková vložka podle na standardu: | IEC / HD 60269-2 |
| povolené rozptylování energie pojistkové vložky: | 9 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Detaily IEC | |
| Standardy | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Elektrické údaje IEC | |
| Jmenovitý proud (IEC): | 125 A |
| jmenovité napětí (IEC) AC: | 690 V |
| jmenovité napětí (IEC) DC: | 440 V |
| jmenovité izolační napětí Ui AC: | 800 V |
| jmenovité izolační napětí Ui DC: | 500 V |
| jmenovité přepětí Uimp : | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-21B (690 V / 80 A) AC-21B (500 V / 100 A) AC-21B (400 V / 125 A) |
| kond. zkratový proud s pojistkami (AC): | 50 kA / 400 V (125A) |
| 50 kA / 500 V (100A) | |
| 50 kA / 690 V (50A) | |
| schváleno s pojistkovými vložkami dané třídy: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 8,8 W.
(The power dissipation at full load would be 13,8 W.)
| Supplementary data IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| max. povolené napětí (IEC) DC: | 800 V |
| further utilisation category DC (IEC 60947-3): | DC specifications: 2 current paths (L1,L3) in series DC-22B (440V/63A) DC-22B (220V/100A) DC-21B (440V/80A) DC-21B (220V/125A) |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| min. permitted operation temperature | -40°C |
| max. permitted operation temperature | 55°C |
| for fuse links IEC 60269-2 / DIN VDE 0636-2 size 000 (max. 21mm wide) up to 9W power dissipation | |
| Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
| Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich. Bei Dauerbetrieb von mehreren Geräten nebeneinander ist der Bemessungsbelastungsfaktor nach VDE 0660 Teil 500 / EN60439-1, Tabelle 1 zu beachten. |
|
| System component: degree of protection IP30 at front as per DIN EN 60529, degree of protection near terminal depends on installation, adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
| Detaily UL | |
| Standardy | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Elektrické údaje UL | |
| jmenovitý proud (UL): | 125 A |
| jmenovité napětí (UL) AC: | 600 V |
| jmenovitá frekvence (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Mechanické údaje | |
| Š x V x H: | 90 x 160 x 98 |
| hmotnost: | 90,0 kg/100 |
| póly: | 3-pólový |
| pro přípojnici: | 12 x 5, 10 |
| čelní stupeň ochrany: | IP30 |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars
| Terminal points | |
| cage clamp connection | |
| screw drive: | S4 |
| wire stripping: | 20 mm |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 50 mm² |
| Md min.: | 3,2 Nm |
| Md max.: | 4,8 Nm |
| Not suitable for aluminium cables ! | |
| Vlastnosti materiálu | |
| halogen-free: | No |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| povolené rozptylování energie pojistkové vložky: | 9 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
33156
000
spínač
NO/NC 250 V AC / 5 A, 30 V DC / 4 A
